PPC-R02.2N-N-N1-N2-T2-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911290008
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

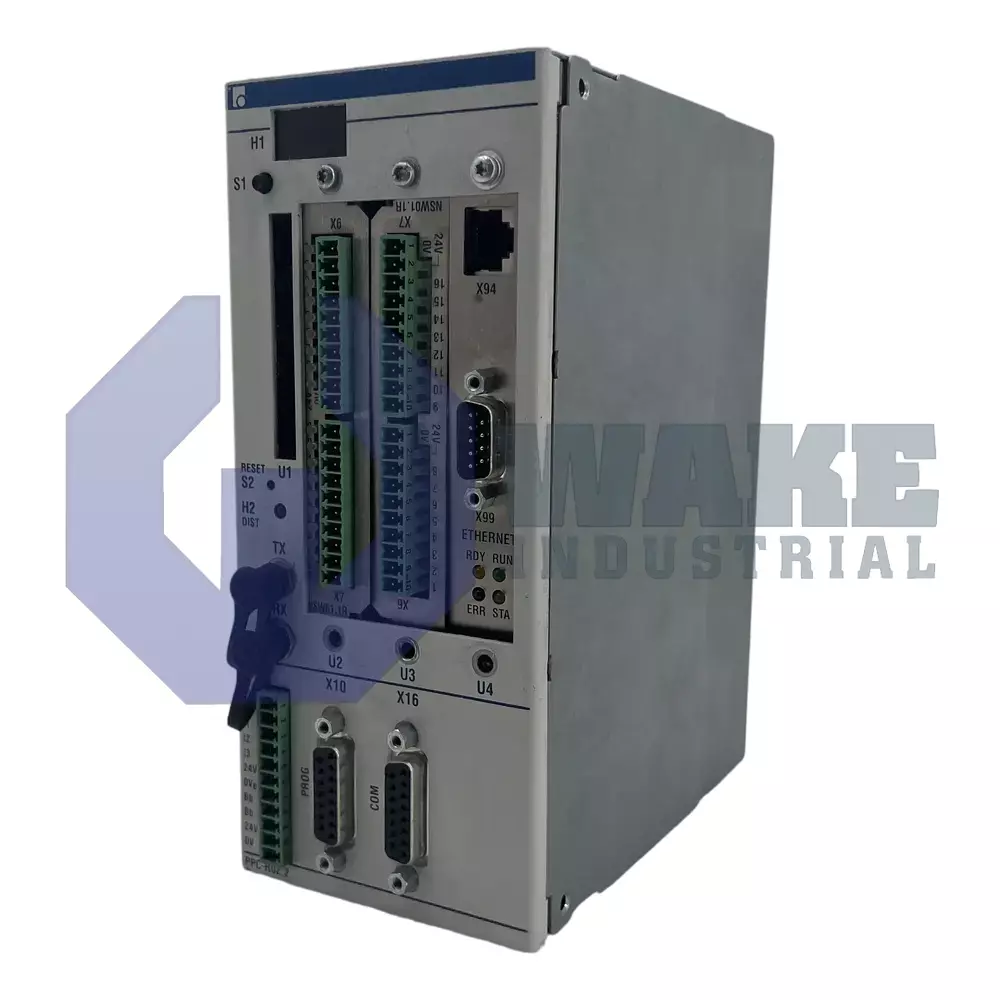

The Bosch Rexroth Indramat PPC-R02.2N-N-N1-N2-T2-FW is a control unit from the PPC Controllers series, featuring a RECO unit housing design. This version 2 controller includes a 10 Mb Ethernet interface and is equipped with an option card PLS module.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The PPC-R02.2N-N-N1-N2-T2-FW belongs to the PPC Controllers series from Bosch Rexroth Indramat. Installed on a RECO backplane, the module supervises motion sequences and synchronizes connected drives, serving as the bridge between servo amplifiers, field I/O, and supervisory PLC or HMI stations. By concentrating axis calculations in one rack-mounted slot, it helps machine builders shorten wiring runs and maintain deterministic communication inside packaging lines, pick-and-place gantries, or other multi-axis systems. This arrangement lets the control rack coordinate multiple machine functions from a central location instead of distributing all logic across individual drives. It is suited to applications where axis timing, signal exchange, and repeatable command handling must stay tightly coordinated during continuous operation.
This unit is categorized as a Control Unit, so interpolation, buffering, and diagnostic tasks are handled inside the controller rather than in the drive. It is produced by Bosch Rexroth Indramat and belongs to the PPC Controllers series. The controller is version 2. Communication to higher-level networks is handled through a 10 Mb Ethernet interface, allowing data exchange with supervisory systems and remote transfer of application data while the module remains installed in the rack. That network link supports integration with plant-level control structures where the controller exchanges status information and receives machine-level commands.
The mechanics follow a RECO housing profile, so the board slides into a keyed plastic shell that protects the edge connectors against vibration. There is no memory expansion slot, so program size must remain within the onboard SRAM and Flash capacity available on this controller. An integrated PLS option card provides programmable limit switch functions that can support cam-based or position-dependent switching tasks. This layout keeps the assembly compact and allows it to fit the intended rack structure without separate expansion hardware. The controller is assigned to Series 2 in this hardware line.
Frequently Asked Questions about PPC-R02.2N-N-N1-N2-T2-FW:
Q: What type of Ethernet interface does the PPC-R02.2N-N-N1-N2-T2-FW controller have?
A: The PPC-R02.2N-N-N1-N2-T2-FW supports an Ethernet 10 Mb Interface, labeled as ETH01.
Q: What housing design is used in the PPC-R02.2N-N-N1-N2-T2-FW controller?
A: This unit features the RECO housing design as part of its construction.
Q: Is memory expansion available on the PPC-R02.2N-N-N1-N2-T2-FW controller?
A: The model does not include memory expansion capabilities.
Q: What option card is supported by the PPC-R02.2N-N-N1-N2-T2-FW controller?
A: An option card PLS module is available for this model.
Q: What is the design version of the PPC-R02.2N-N-N1-N2-T2-FW controller?
A: The design version for this model is 2, as specified by the manufacturer.
