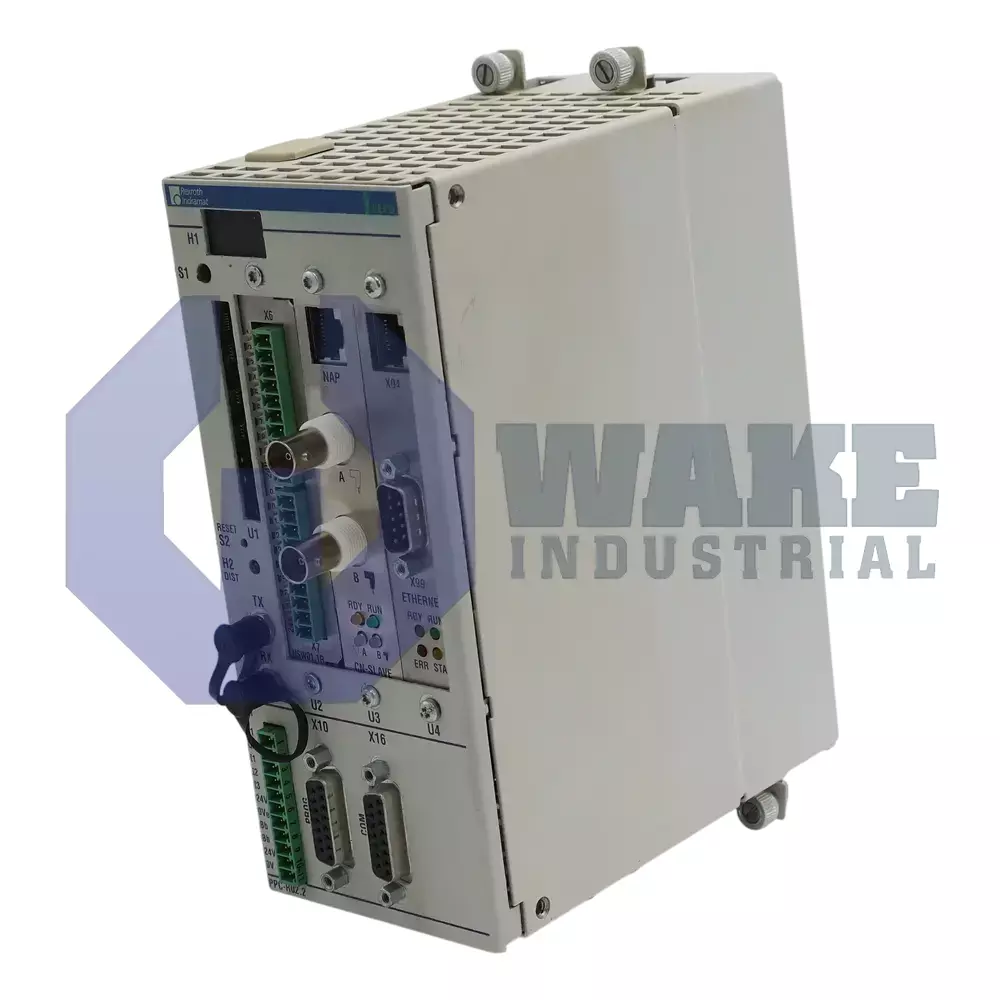

PPC-R02.2N-N-N1-L2-T2-FW Bosch Rexroth Indramat
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships Today
The Bosch Rexroth Indramat PPC-R02.2N-N-N1-L2-T2-FW is a control unit from the PPC Controllers series. This version 2 RECO unit features an Ethernet 10 Mb interface and a ControlNet fieldbus slave interface. It includes an option card PLS module and is not equipped with memory expansion.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The PPC-R02.2N-N-N1-L2-T2-FW is a control unit developed by Bosch Rexroth Indramat for coordinated motion, logic, and sequencing tasks in industrial automation. It belongs to the PPC Controllers series and installs in a machine control rack where it interprets fieldbus data, executes application code, and issues deterministic commands to connected drives and I/O modules, keeping multiple axes and ancillary equipment synchronized.
Within the PPC Controllers series, this model is identified as Design Version 2 and belongs to the series 2 hardware release, matching firmware features to the R02 platform. Networking is handled through an Ethernet 10 Mb interface for plant-level programming or HMI access; the physical port is cataloged under option code ETH01. Real-time peer communication to higher-level PLCs is provided by a ControlNet fieldbus slave channel that accepts scheduled and unscheduled packets with fixed update intervals. The controller is shipped without any memory expansion, so application storage remains limited to the on-board flash and SRAM resources defined for this hardware tier.
The communication coprocessor that implements ControlNet is referenced internally as CNS01, allowing deterministic transfers without occupying the main CPU. Mechanical integration follows the RECO unit housing design, so the module slides into a DIN-rail carrier and obtains power through a shared backplane. Axial timing and camming functions can be added by inserting the Option Card PLS module identified as NSW01 into the front expansion slot. Because the hardware functions as a Control Unit, it manages all assigned drive commands locally and passes only summarized status data to supervisory networks.
Frequently Asked Questions about PPC-R02.2N-N-N1-L2-T2-FW:
Q: What Ethernet connectivity does the PPC-R02.2N-N-N1-L2-T2-FW provide?
A: The PPC-R02.2N-N-N1-L2-T2-FW controller features an Ethernet 10 Mb interface, specified as ETH01.
Q: What type of fieldbus interface does the PPC-R02.2N-N-N1-L2-T2-FW include?
A: This controller is equipped with a ControlNet fieldbus slave interface, noted as CNS01.
Q: What is the housing design of the PPC-R02.2N-N-N1-L2-T2-FW controller?
A: The housing of this model utilizes a RECO unit design for its enclosure.
Q: Is an option card module included with the PPC-R02.2N-N-N1-L2-T2-FW, and if so, which one?
A: This version supports the Option Card PLS module, identified as NSW01.
Q: What series does the PPC-R02.2N-N-N1-L2-T2-FW controller belong to?
A: The PPC-R02.2N-N-N1-L2-T2-FW belongs to Series 2 in the Bosch Rexroth Indramat PPC Controllers line.
