Product Description:

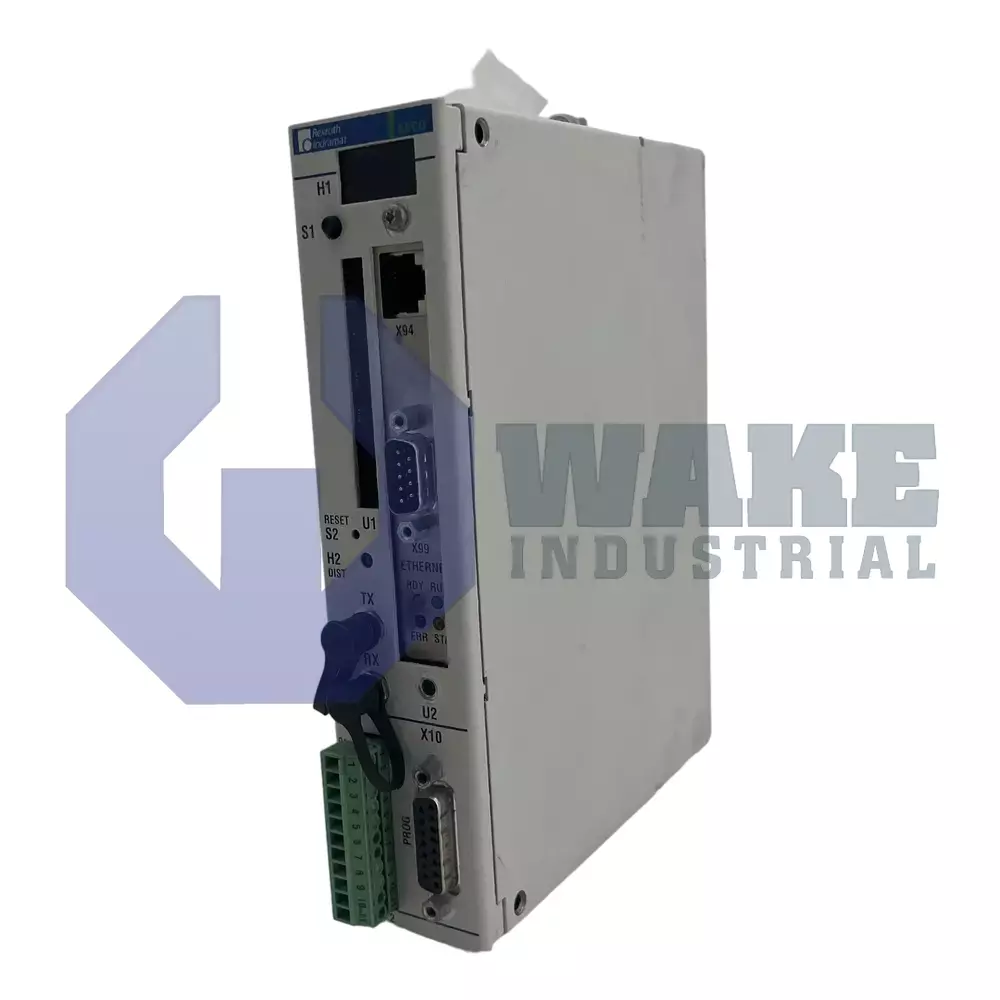

The Bosch Rexroth Indramat PPC-R01.2N-N-T2-FW belongs to the PPC Controllers series and functions as a control unit in distributed motion or process workstations. It supervises axis drives and machine I/O, forming the central logic layer in an Indramat automation cell. In normal operation, it coordinates control tasks between the machine program, the connected drives, and local signals from the field level. This version is design 2 within Series 1 and is housed in a RECO enclosure for cabinet installation. The controller is intended for applications that require compact DIN-rail electronics with direct fieldbus connectivity.

The unit operates from a nominal supply of 24 VDC and draws up to 0.7 A during peak controller activity. Its communication layer is fixed, and an ETH01 interface provides 10 Mb Ethernet service at a constant 10 MBaud; because auto-negotiation is disabled, the link parameters remain deterministic. Three digital inputs accept 24 V signaling, while two transistor outputs can source loads for connected field devices. The assembly meets protection class IP20 and is intended for installation inside a protected electrical enclosure. The unit has no memory expansion, so program storage remains internal, and a dedicated U2 slot mirrors the Ethernet channel when redundant communication paths are needed.

Mechanical mounting follows the TS 35×27×15 DIN rail profile, and the housing measures 41.5 mm in width, allowing close side-by-side installation without exceeding a cabinet depth of 165 mm or a height of 214 mm. Each output channel is rated for 0.5 A, and the maximum switching latency is 400 µs, which supports direct actuation of relays or optical couplers. The module weighs 1.00 kg, which is appropriate for stable mounting on a standard control rail. Its compact format leaves room for adjacent control hardware in cabinets where I/O density and network timing must be tightly managed.
