Product Description:

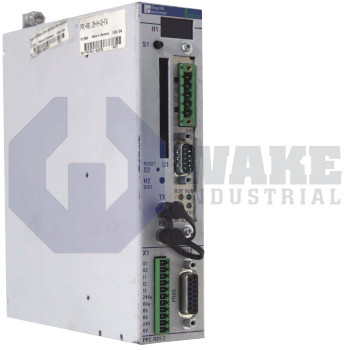

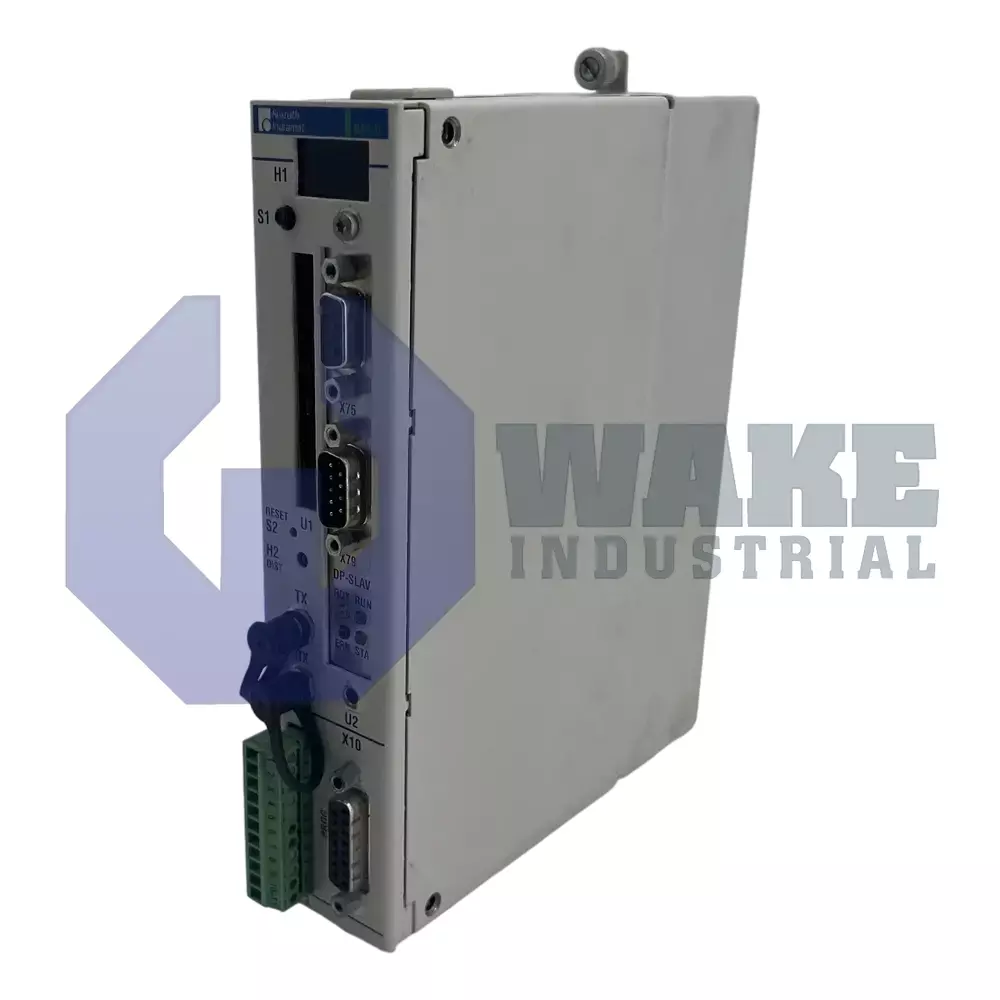

The PPC-R01.2N-N-P2-FW is a control unit built by Bosch Rexroth Indramat in the PPC Controllers series. This compact standalone module coordinates axis movements and related machine functions by processing input signals and issuing timed output commands to drives and actuators. Mounted on a DIN rail inside a cabinet, the unit links the automation layer to higher-level production control and provides the precise timing and logical interlocking required in assembly lines, packaging equipment, and material-handling cells.

Its electrical backbone is a nominal supply of 24 VDC. From this rail, the controller can furnish up to 3.0 A on the 5 V user bus and 2.3 A on the 24 V user bus, giving external sensors and light loads a shared source without additional power supplies. The internal backplane tolerates a maximum I/O bus power of 52 W, so heat dissipation stays within the limits of the RECO housing. Worst-case command latency at the transistor outputs remains below 400 µs, supporting synchronized sequences. Version 2 hardware is 192 mm high, 41.5 mm wide, and 150 mm deep, and the assembly weighs 1.1 kg, fitting densely populated multi-axis racks while staying within typical rail loading limits.

The I/O complement contains 3 individually isolated digital inputs for position sensors and limit switches and 2 transistor digital outputs that can source up to 0.5 A each for valve or relay coils. Network integration uses a Profibus fieldbus slave interface (DPS01), so the controller can exchange cyclic data with a central PLC while keeping its local task loop intact. Environmental protection reaches IP20, so installation in an enclosure is required. The module draws only 0.7 A from the supply rail during full logic activity, and an auxiliary ready relay rated at 150 mA reports system status to safety circuits. Series 1 hardware offers no memory expansion, so application programs must reside entirely in the onboard flash.
