PPC-P11.1N-N-V1-NN-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911296363

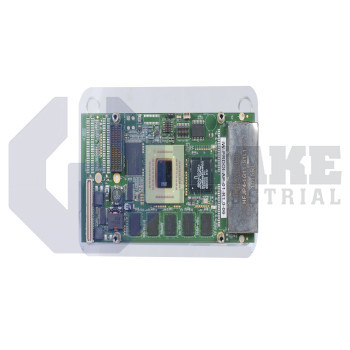

The Bosch Rexroth Indramat PPC-P11.1N-N-V1-NN-NN-FW is a control unit from the PPC Controllers series. It supports up to 40 drives through a SERCOS drive interface and features a DeviceNet Master fieldbus interface. The controller has a 32 MB onboard flash capacity and uses a PFM Compact Flash card, with a housing designed as an industrial PC.
Internal Product Review
The PPC-P11.1N-N-V1-NN-NN-FW is a Bosch Rexroth Indramat control unit built with an industrial PC housing design. SERCOS drive interface and DeviceNet Master fieldbus support make the platform especially appealing for coordinated machine control and clean network integration. A maximum drive count of 40 gives the unit strong application range for multi-axis systems.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Bosch Rexroth Indramat manufactures the PPC-P11.1N-N-V1-NN-NN-FW, a control unit in the PPC Controllers series designed for installation inside automation PCs. Implemented as a short PCI card, it orchestrates motion sequences, handles deterministic drive communication, and executes user control tasks so that multi-axis machines can run coordinated profiles, collect process data, and react to supervisory commands in real time. Its dedicated role is to decouple time-critical positioning loops from the operating system layer, providing the predictable cycle times required for packaging lines, gantries, and other synchronized equipment. This arrangement lets the host computer handle general control and interface duties while the card maintains real-time motion behavior.
The board draws 1400 mA from the 3.3 V backplane and 450 mA from the 5 V supply, figures that affect power-plane sizing and cabinet ventilation. Its bootloader resides in onboard Flash, while application data is retained in a 32 MB PFM Compact Flash module, and no memory expansion sockets are fitted. Motion commands reach the drives over a SERCOS fiber ring, and supervisory traffic can be exchanged through the DeviceNet Master interface. That combination supports synchronized axis communication while also linking the control system to machine-level devices. One serial channel and the X10 programming port remain available for setup, and the single PCI bus address is fixed at 1.
Design version 1 follows the PCI Bus Short Card format and conforms to revision 2.2, so it inserts directly into host backplanes without extender cables. The assembly measures 175 mm in length and 107 mm in height, fitting neatly within industrial PC housings. The sealed industrial PC housing keeps airborne debris away from the circuitry, and the absence of auxiliary memory limits heat buildup. The card can supervise up to 40 drives while occupying just one slot. This high axis capacity supports coordinated motion across large automated systems without requiring additional controller cards.
