NAM1.2-08 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911246505

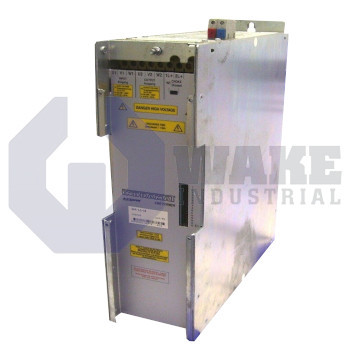

The Bosch Rexroth Indramat NAM1.2-08 is part of the NAM Power Line Form Modules series and measures 390 mm in height, 105 mm in width, and 325 mm in depth. It features main and choke terminal capacities of 10 mm2, a 16-pin ribbon cable, and supports a maximum power cable length of 10 meters.
Internal Product Review
The NAM1.2-08 is a Bosch Rexroth Indramat power line form module with a clean, well-engineered interface for line-side assemblies. A 10 mm2 main terminal capacity and 10 mm2 choke terminal capacity support secure power connections in demanding installations. Low 90 W power loss makes NAM1.2-08 a strong choice for efficient panel builds.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The NAM1.2-08 is a power line form module manufactured by Bosch Rexroth Indramat as part of the NAM Power Line Form Modules series. It serves as an interface between the plant mains and Indramat drive groups, routing three-phase power through matched terminals and integrating the external line choke specified for the cabinet. By centralizing these functions, the unit simplifies installation and provides a consistent method for delivering filtered supply voltage to servo controllers and other automation loads.
Its enclosure measures 390 mm in height, 105 mm in width, and 325 mm in depth, so cabinet builders can allocate panel space and maintain correct busbar alignment. During operation, the module dissipates only 90 W of power loss, a level that can usually be removed by the standard cabinet fan without extra heat sinks. A 16-conductor ribbon harness, identified by a pin count of 16, carries control signals to adjacent drive units and keeps low-voltage wiring separate from power cabling. For flexible cabinet layouts, the main power leads may extend up to 10 m between this module and the connected supply transformer. Two sets of screw terminals, U1/V1/W1/U2/V2/W2 for the main circuit and 1L+/2L+ for the choke, provide secure connections for incoming and outgoing conductors while separating the filtered line from the raw mains.
For safe airflow and cable bending radii, the module requires a clearance of 80 mm below the heat sink and an equal 80 mm above the top edge. These spaces help maintain acceptable internal temperature during operation and leave room for orderly cable routing. The main terminal block accepts conductors up to 10 mm2, allowing the power line form module to feed several drive inverters from a single distribution point without overloading the conductors. This layout supports stable electrical connections while keeping the power and choke wiring paths clearly separated inside the cabinet.
