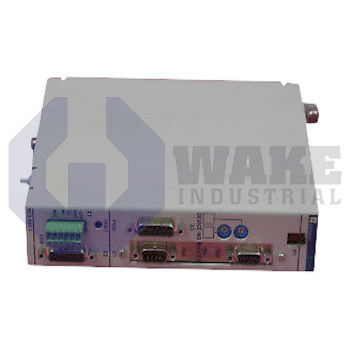

MTS-R01.1-M1-B1-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911279005
The Bosch Rexroth Indramat MTS-R01.1-M1-B1-FW is part of the MTS Servo Control Modules series and weighs 1.00 kg. It operates with a supply voltage of 24 VDC and features IP20 protection. The module supports INTERBUS-S master fieldbus communication with a reach of 12.8 km and input/output capacity of 4096 each.
Internal Product Review
The MTS-R01.1-M1-B1-FW is a Bosch Rexroth Indramat servo control module configured as an INTERBUS-S master module for PLC operation. IP20 protection and a 24 VDC supply support clean cabinet integration and dependable control performance. A 4096 in / 4096 out I/O capacity and 12.8 km INTERBUS reach make this unit a strong choice for distributed automation networks.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MTS-R01.1-M1-B1-FW servo control module is produced by Bosch Rexroth Indramat within the MTS Servo Control Modules series. Designed for mounting in a modular drive rack, it occupies one slot and measures 41.5 × 192 × 156 mm. The unit includes an INTERBUS-S master module that communicates with remote I/O through a 9-way female D-sub connector, providing fieldbus supervision for motion axes and auxiliary sensors in automated cells. This arrangement lets the control slot coordinate bus traffic and exchange status data with connected machine devices. It is intended to manage communication between the rack controller and distributed machine nodes without requiring a separate external bus master.
Electrically, the module operates from a stable 24 VDC logic supply and draws up to 450 mA during peak activity, resulting in a thermal dissipation of 12.6 W inside the cabinet. Processing is handled in PLC mode without a coprocessor, so all program execution is performed by the main controller rather than an auxiliary chip. On the network side, the INTERBUS channel supports 4096 in / 4096 out digital points across a maximum network length of 12.8 km, which permits extensive decentralized installations without repeaters. Serial diagnostics are available through a 15-way female D-sub connector that complies with RS-232, RS-422, or RS-485 signaling. Continuous operation is allowed in ambient humidity up to 75 percent non-condensing, which suits typical production spaces.
The enclosure carries an IP20 rating, so the module must be installed in a closed electrical cabinet while still allowing finger-safe handling. Function is specified up to 1500 m above sea level, after which current and thermal limits require derating. At only 1.00 kg, the control slot adds minimal load to the rack and helps keep cabinet mass and vibration low. The low module weight also reduces mechanical stress on the backplane during operation. The mechanical outline, dedicated D-sub terminations, and integrated fieldbus master help keep wiring orderly within the rack.
