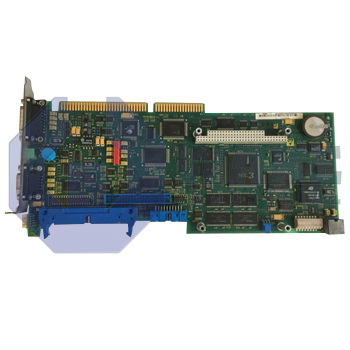

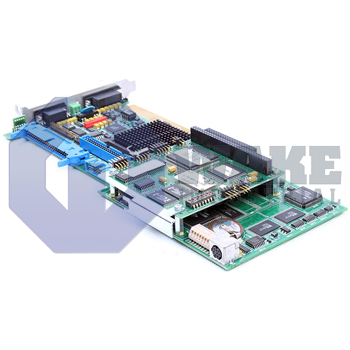

MTS-P02.2-D4-B1-NN-NN-NN-FW Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911307500
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
5 Minutes
0 Seconds
The Bosch Rexroth Indramat MTS-P02.2-D4-B1-NN-NN-NN-FW is part of the MTS Servo Control Modules series and features ISA bus compatibility and multiple communication interfaces, including RS232, RS422, and RS485. It offers 16 TTL machine key inputs and outputs, a fieldbus type of INTERBUS master, and a maximum I/O capacity of 4096 in and 4096 out. The module measures 145 mm in height, 22 mm in width, and 295 mm in depth.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MTS-P02.2-D4-B1-NN-NN-NN-FW is a servo control module produced by Bosch Rexroth Indramat for the MTS Servo Control Modules series. Installed in a drive cabinet, it coordinates motion and I/O tasks between higher-level PCs and individual servo drives, allowing centralized sequencing and quick parameter changes in industrial automation lines. By converting host commands into deterministic fieldbus telegrams, the unit acts as the logical core for multi-axis packaging, printing, or material-handling applications.
The module carries a BT bus connector in the form of a 9-pin female D-sub socket that mates directly with the drive rack backplane. For external programming, the COM board presents a 15-pin D-sub linked to a transceiver that can be configured for RS232, RS422, or RS485 traffic. Networked motion devices are addressed through its INTERBUS master channel, while a separate RS232C diagnostic port keeps service access independent of cycle traffic. Sixteen TTL inputs and sixteen TTL outputs labeled as machine-key I/O permit deterministic handshaking with sensors. During operation, the electronics draw only 1.8 A, conserving cabinet power, and host data exchange is achieved over a legacy ISA interface within a 22 mm-wide housing.
At 145 mm high and 295 mm deep, the enclosure sits flush beside servo drives without obstructing airflow. Continuous operation is permitted up to 1500 m elevation, and the INTERBUS segment can be extended to 12.8 km with appropriate repeaters for plant-wide layouts. Firmware tables accommodate 4096 inputs and 4096 outputs, mapping them to field devices through the NC bus's 50-pin ribbon cable. Internal regulators accept a split rail of +5 VDC, +12 VDC, and -12 VDC, keeping logic and transceiver stages within tolerance even under fluctuating supply conditions.
Frequently Asked Questions about MTS-P02.2-D4-B1-NN-NN-NN-FW:
Q: What type of communication connector does the MTS-P02.2-D4-B1-NN-NN-NN-FW module use?
A: The MTS-P02.2-D4-B1-NN-NN-NN-FW uses a D-SUB, 15-pin female connector for communication.
Q: How many TTL inputs and outputs are available on the MTS-P02.2-D4-B1-NN-NN-NN-FW?
A: This module provides a machine I/O of 16 TTL inputs and 16 TTL outputs.
Q: Which fieldbus type does the MTS-P02.2-D4-B1-NN-NN-NN-FW support for industrial networking?
A: An INTERBUS master fieldbus type is featured on this model for fieldbus communications.
Q: What supply voltages are needed for the MTS-P02.2-D4-B1-NN-NN-NN-FW controller?
A: The power supply requirements are +5 VDC, +12 VDC, and -12 VDC.
Q: What is the maximum allowable operating altitude for the MTS-P02.2-D4-B1-NN-NN-NN-FW?
A: This module can operate at altitudes up to 1500 meters above sea level.
