MTC-P01.2-E1-NN-NN-NN-FW EP Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911307557
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat MTC-P01.2-E1-NN-NN-NN-FW EP is a module from the MTC200 CNC Modules series that uses an ISA computer bus and has a main memory of 1 MB RAM. It features a SERCOS fiber optic drive interface with FSMA connectors, and can control up to 8 drives. The module includes a single-digit 7-segment diagnostic display and is equipped with a co-processor.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

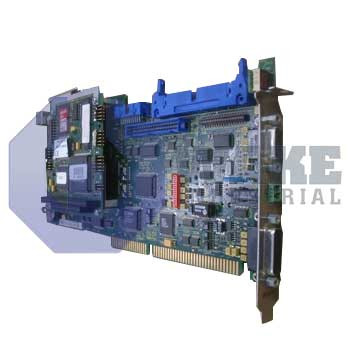

The MTC-P01.2-E1-NN-NN-NN-FW EP is a CNC processor board manufactured by Bosch Rexroth Indramat for integration in control racks that use the MTC200 CNC Modules series. Installed in a master rack alongside axis and I/O cards, the board handles numerical control sequencing, coordinates motion commands, and manages cyclic drive communication so multi-axis machine tools follow programmed paths with deterministic timing. Because it serves as the central CNC element in the rack, it links path calculation with machine logic and synchronized axis updates. It also provides an 8 ms power-fail alert so the control can react quickly to a loss of supply voltage.
An onboard coprocessor assists the main CPU by taking over mathematical routines, while the control program and axis parameters reside in 1 MB of RAM that is battery-backed to survive power cycling. The module plugs into the industrial ISA backplane, allowing it to exchange process data with PC-compatible host hardware without proprietary connectors. Drive commands are sent over a SERCOS fiber-optic interface that delivers noise-immune, time-synchronized telegrams for coordinated axis control. Physical coupling to that ring is made through a rugged FSMA (IEC 874-2) connector that prevents rotation and maintains precise ferrule alignment.
Optical transmission quality is maintained as long as link losses stay below 12.5 dB, which sets the maximum cable attenuation allowed in the machine cabinet. When the board signals NC-READY, it can source up to 150 mA at 24 V, giving downstream PLC inputs a clear indication that the controller is available. The optical transmitter launches at least -7.5 dBm, so paired receivers with adequate sensitivity can still register a stable logic high. The board also uses a 50-way ribbon SPS link for controller-side signal exchange, and a dedicated Rx sensitivity limit supports reliable optical reception when the fiber path approaches its allowable attenuation.
Frequently Asked Questions about MTC-P01.2-E1-NN-NN-NN-FW EP:
Q: Does the MTC-P01.2-E1-NN-NN-NN-FW EP module include a co-processor?
A: This module comes equipped with an integrated co-processor, enhancing its processing capabilities.
Q: What type of computer bus does the MTC-P01.2-E1-NN-NN-NN-FW EP use?
A: The MTC-P01.2-E1-NN-NN-NN-FW EP connects to a computer system using an ISA bus interface.
Q: How many drives can be connected to the MTC-P01.2-E1-NN-NN-NN-FW EP module?
A: The maximum number of drives supported by this module is eight.
Q: What type of diagnostic display is provided on the MTC-P01.2-E1-NN-NN-NN-FW EP?
A: This module provides a single-digit 7-segment diagnostic display for status indication.
Q: What type of drive interface and connector does the MTC-P01.2-E1-NN-NN-NN-FW EP feature?
A: The drive interface on this module is a SERCOS fiber optic connection using an FSMA (IEC 874-2) connector.
