MTC-P01.2-E1-A2-NN-NN-FW EP Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911307559
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

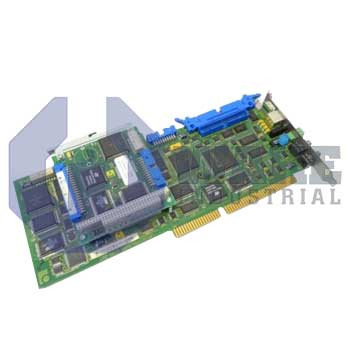

The Bosch Rexroth Indramat MTC-P01.2-E1-A2-NN-NN-FW EP is part of the MTC200 CNC Modules series and features an industrial PC plug-in card housing. This module supports up to 8 axes with co-processor, uses a SERCOS drive interface, and provides 1 MB RAM memory capacity. It measures 17.5 x 124 x 280 mm and can control up to 8 drives.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MTC-P01.2-E1-A2-NN-NN-FW EP module is produced by Bosch Rexroth Indramat for use within the MTC200 CNC Modules series. It serves as a central numerical control card that coordinates axis processing and drive communication inside an industrial machining cell. By fitting into a host industrial PC, the module links motion commands to SERCOS-based drives and supervises axis calculations through an onboard coprocessor. In automated plants, it acts as the deterministic interface between higher-level machine sequencing and the servo amplifiers that power each mechanical axis.
This card occupies one ISA backplane slot of the host control rack, while its internal axis module is linked to the base board through a PC104 connector. Using the ISA bus for general I/O traffic allows the module to exchange setup data and diagnostic flags with the operating system at standard PC clock rates. Motion data are streamed over the SERCOS optical ring, so each connected drive receives tightly synchronized setpoint packets. Axis interpolation is offloaded to a dedicated coprocessor located on the first axis module, which minimizes CPU loading during contour runs. Program buffers and parameter tables reside in 1 MB RAM, which is sufficient for eight axes of coordinated motion. Its physical size is 17.5 × 124 × 280 mm, enabling installation beside other expansion cards without modifying chassis spacing.
The module accommodates up to 8 drives under one interpolator, matching the unit's 8-axis architecture. Slot positions two and three are left open for optional daughterboards, while the frame still reserves space for a maximum of 4 card locations. The assembly is delivered in an Industrial PC Plug-In Card housing that slides directly into the machine control cabinet without additional brackets. The terminal variant is CNC without export restriction, allowing worldwide shipment without licensing barriers.
Frequently Asked Questions about MTC-P01.2-E1-A2-NN-NN-FW EP:
Q: What is the maximum number of drives that can be controlled by the MTC-P01.2-E1-A2-NN-NN-FW EP module?
A: The MTC-P01.2-E1-A2-NN-NN-FW EP module supports up to 8 drives for integrated axis control.
Q: What drive interface does the MTC-P01.2-E1-A2-NN-NN-FW EP CNC module use?
A: The drive interface on this module uses the SERCOS protocol for motion control communication.
Q: Does the Axis Module 1 of the MTC-P01.2-E1-A2-NN-NN-FW EP come with a co-processor?
A: Axis Module 1 on this module is equipped with a co-processor to enhance processing capabilities.
Q: What is the RAM memory capacity of the MTC-P01.2-E1-A2-NN-NN-FW EP module?
A: This CNC module features a memory capacity of 1 MB RAM for operational processing.
Q: What type of housing does the MTC-P01.2-E1-A2-NN-NN-FW EP CNC module have?
A: The module has an industrial PC plug-in card housing designed for robust industrial environments.
