MTC-P01.2-E1-A2-A2-A2-FW EP Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911307565
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

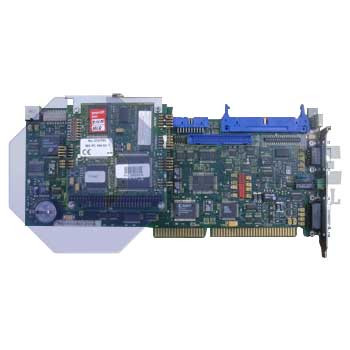

The Bosch Rexroth Indramat MTC-P01.2-E1-A2-A2-A2-FW EP is an ISA Bus Module from the MTC200 CNC Modules series. It supports 4 fiber optic loops, handles up to 32 drives per module, and features 1 MB RAM main memory. The module measures 140 mm in height, 280 mm in length, and 131.5 mm in width.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MTC-P01.2-E1-A2-A2-A2-FW EP is a motion and process control module produced by Bosch Rexroth Indramat in the MTC200 CNC Modules series. Installed in machine tools and production cells, the board serves as the central numerical control that sequences axis movements, coordinates spindle functions, and exchanges status data with the supervisory PLC. By linking digital drives through optical rings, the module forms the heart of a distributed drive system used in industrial automation. This arrangement lets the control supervise coordinated motion and machine-state exchanges from one location within the CNC rack.
For each SERCOS ring, the board can address 8 drives, and with 4 independent fiber-optic loops, the total axis capacity reaches 32. Program execution and buffering are handled by 1 MB RAM, a size intended for part programs, tool offsets, and diagnostic flags. The control logic resides on an ISA Bus Module carrier that plugs into the MTC200 backplane, allowing shared power and bus arbitration with adjacent modules. A 50-way ribbon cable provides the SPS interconnect so the PLC can transfer start conditions and receive end-of-cycle bits, while the 280 mm overall length positions the edge connectors accurately inside standard 19-inch racks and the unit draws no more than the specified 150 mA on the NC-ready line.
The control executes up to 7 concurrent processes, enabling look-ahead motion, background diagnostics, and operator dialog without interrupting interpolation tasks. Physical clearance is simplified by a board height of 140 mm and a depth of 131.5 mm, making the card suitable for compact electrical cabinets. The NC-ready output delivers a logic high of 24 V, allowing external safety relays to confirm system availability. During a mains drop, internal capacitors maintain logic for 8 ms, giving the control enough time to store position data and issue drive inhibit commands in an orderly way.
Frequently Asked Questions about MTC-P01.2-E1-A2-A2-A2-FW EP:
Q: How many drives can be connected to the MTC-P01.2-E1-A2-A2-A2-FW EP module?
A: The MTC-P01.2-E1-A2-A2-A2-FW EP module can support up to 32 drives through its four fiber optic loops.
Q: What is the main memory capacity of the MTC-P01.2-E1-A2-A2-A2-FW EP?
A: This CNC module features 1 MB of RAM as its main memory for system processes.
Q: What module format is used by the MTC-P01.2-E1-A2-A2-A2-FW EP?
A: The MTC-P01.2-E1-A2-A2-A2-FW EP uses an ISA Bus Module format for installation.
Q: What is the maximum number of processes the MTC-P01.2-E1-A2-A2-A2-FW EP can handle?
A: Up to seven processes can be managed simultaneously by this module.
Q: What is the power-fail lead time on the MTC-P01.2-E1-A2-A2-A2-FW EP module?
A: The module features a power-fail lead time of 8 ms, providing a brief buffer during voltage interruptions.
