MSM040B-0300-NN-M0-CC1 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911295579
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
5 Minutes
59 Seconds

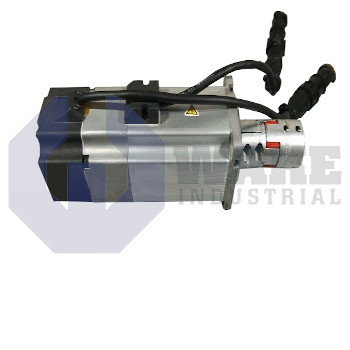

The Bosch Rexroth Indramat MSM040B-0300-NN-M0-CC1 is a synchronous motor from the MSM IndraDyn S Synchronous Motors series. It features a multiturn absolute encoder and an electrically released holding brake with a torque of 2.45 Nm. Cooling is provided by natural convection, and the motor uses a cable tail electrical connection.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSM040B-0300-NN-M0-CC1 is a synchronous servo motor produced by Bosch Rexroth Indramat within the MSM IndraDyn S Synchronous Motors series. As a compact rotary actuator, it converts drive current from an IndraDrive controller into controlled torque and speed for positioning tasks on packaging machines, pick-and-place axes, and other industrial automation equipment. The motor is suited for feed axes, gantry heads, and small handling modules where compact dimensions are important and steady axis control is required. Its compact format makes it practical for machine sections where available installation space is limited but repeatable motion is still needed.
An integrated holding brake keeps the load stationary when power is removed. The brake provides 2.45 Nm of static torque, which is suitable for securing small inertial loads on narrow conveyor belts or index tables. Release is handled through an electrical release design, allowing the controller to disengage the brake without pneumatic or manual intervention. Heat is removed by natural convection, so the motor can operate without an external fan when ambient airflow is available. Winding code 0300 identifies the electrical configuration used with low-power IndraDrive amplifiers for continuous-duty operation.
Connection to the drive cabinet is established through a preassembled cable tail, which simplifies routing and avoids connector-matching issues at the motor end. Rotor position is reported by a multiturn absolute encoder, so shaft angle remains available over multiple revolutions and the axis can resume operation after power cycles without a new reference move. The mechanical envelope uses size 040, and the length designation B provides additional axial space for stator laminations that support higher continuous torque in this frame. This layout helps the motor fit standardized mounting patterns used in the MSM IndraDyn S line. It also supports use in compact automated stations where consistent positioning and stable holding at standstill are both required.
Frequently Asked Questions about MSM040B-0300-NN-M0-CC1:
Q: What type of electrical connection does the MSM040B-0300-NN-M0-CC1 motor use?
A: This model uses a cable tail for its electrical connection, simplifying integration with compatible systems.
Q: Does the MSM040B-0300-NN-M0-CC1 motor feature a holding brake and what is its torque?
A: The MSM040B-0300-NN-M0-CC1 includes an electrically released holding brake with a torque of 2.45 Nm.
Q: What type of encoder is used in the MSM040B-0300-NN-M0-CC1 motor?
A: A multiturn absolute encoder is provided, enabling precise position feedback across multiple revolutions.
Q: How is the MSM040B-0300-NN-M0-CC1 motor cooled?
A: Cooling for the MSM040B-0300-NN-M0-CC1 is achieved via natural convection, requiring no external fans.
Q: What are the motor size and length of the MSM040B-0300-NN-M0-CC1?
A: This model is classified as a size 040 motor with length B, which affects its mounting footprint and output characteristics.
