The Bosch Rexroth Indramat MSM040B-0300-NN-C0-CC0 is part of the MSM IndraDyn S Synchronous Motors series. This synchronous motor features a natural convection cooling mode and uses a cable tail for its electrical connection. It is equipped with an incremental encoder and does not have a holding brake.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

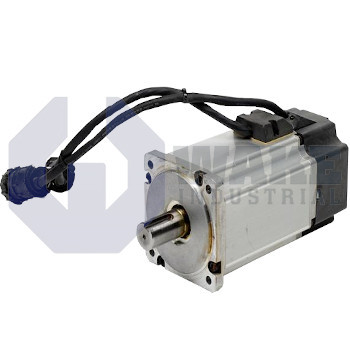

The MSM040B-0300-NN-C0-CC0 is a rotary synchronous motor built by Bosch Rexroth Indramat for the MSM IndraDyn S Synchronous Motors series. It serves as the drive element for positioning axes, delivering closed-loop torque and speed in automated packaging, handling, and assembly cells. Its permanent-magnet design works with IndraDrive controllers to support rapid acceleration in a compact package suited to cabinet-mounted machinery and lightweight gantry heads. The motor also includes a factory-installed feedback device and pre-terminated power leads to simplify integration where space is limited and cable routing must stay orderly.
Thermal management relies on natural convection, so the housing sheds heat directly to ambient air without external fans or liquid circuits. This cooling method keeps the outer design simple and supports applications where auxiliary airflow is not desirable around the axis. Power, brake, and feedback conductors exit through a cable tail, which allows flexible routing inside tight enclosures and removes the need for a fixed connector on the motor end shield. Rotor position is detected by an incremental encoder, enabling high-resolution speed regulation when paired with the drive’s interpolation functions. Because the unit comes with no holding brake, the machine must provide retention during power-off if the application includes vertical or suspended loads.
The motor has a motor length B housing, which balances torque output with compact dimensions. Its motor size 040 corresponds to a 40 mm flange for small gearheads or direct-drive couplings, making it suitable for tightly spaced mechanical layouts. The winding code 0300 identifies the winding arrangement used in the phase coils and the matching electrical characteristics for compatible IndraDrive amplifiers. That layout helps the motor fit near slides, indexing mechanisms, or small transfer units where available mounting space is restricted. A compact frame with this winding combination supports precise servo operation on small axes that need responsive motion without a large installation footprint.
Frequently Asked Questions about MSM040B-0300-NN-C0-CC0:
Q: What type of cooling does the MSM040B-0300-NN-C0-CC0 motor use?
A: This motor is cooled by natural convection, operating without the need for external cooling equipment.
Q: What electrical connection configuration does the MSM040B-0300-NN-C0-CC0 offer?
A: The MSM040B-0300-NN-C0-CC0 uses a cable tail for its electrical connection, simplifying installation with standard wiring.
Q: What type of encoder is featured on the MSM040B-0300-NN-C0-CC0 motor?
A: This model is equipped with an incremental encoder for position feedback.
Q: Is a holding brake included with the MSM040B-0300-NN-C0-CC0 motor?
A: The MSM040B-0300-NN-C0-CC0 is not equipped with a holding brake as standard.
Q: Who manufactures the MSM040B-0300-NN-C0-CC0 motor and what series is it part of?
A: Bosch Rexroth Indramat manufactures the MSM040B-0300-NN-C0-CC0 as part of their MSM IndraDyn S Synchronous Motors series.
