Product Description:

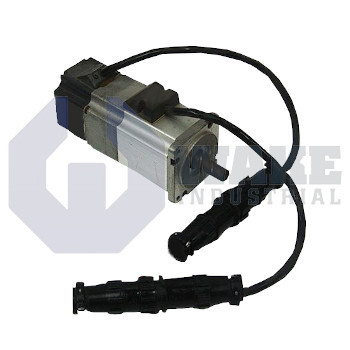

The MSM030B-0300-NN-M0-CG0 is a synchronous motor designed by Bosch Rexroth Indramat for the MSM IndraDyn S series. It provides electromechanical power to small positioning tables, pick-and-place heads, and other compact automation axes that benefit from integrated position feedback and direct coupling to servo drives. Its design focuses on applications where cabinet space, wiring simplicity, and low-maintenance cooling are more important than very high continuous torque. This makes the motor suitable for compact motion systems that need accurate positioning without a large installation footprint.

Heat is removed through natural convection, so the housing requires free air around it but does not need an additional blower or coolant loop. Power, encoder, and protective earth conductors are bundled in a single cable tail, which reduces connector count and simplifies routing through compact machine sections. Motion feedback comes from a multi-turn absolute encoder, allowing the drive controller to recover the shaft position after a power cycle without a homing routine. The motor is supplied without a holding brake, so external locking or maintained drive torque is needed when the axis must stay at standstill. Its B length gives the motor a medium stack length that helps balance overall depth with usable torque. A single cable outlet also keeps the motor body simple and avoids the extra bulk of separate plug housings.

Mounting flanges conform to the 030 frame size, so the motor fits the pilot dimensions and bolt patterns used for that size. Electromagnetic behavior is matched to the 0300 winding code, which corresponds to phase resistance and back-EMF values used by the drive for current control and acceleration behavior. The unit is a synchronous motor, so it is intended for servo applications that require coordinated speed and position control. It is suited to conveyor sections, laboratory instruments, and secondary packaging stations where moderate torque and steady velocity are required.
