Product Description:

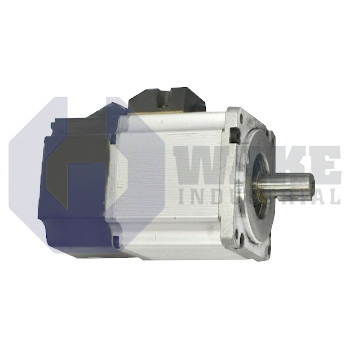

The MSM030B-0300-NN-M0-CC0 is a compact permanent-magnet motor produced by Bosch Rexroth Indramat for the MSM IndraDyn S Synchronous Motors series. As a synchronous servo unit, it delivers commutated torque for positioning and velocity loops in small-frame automation such as pick-and-place axes and light conveyors. The design integrates stator windings, rotor magnets, and feedback hardware to provide closed-loop motion when paired with an IndraDrive controller. Its compact format suits applications where fast response and low moving mass are more important than high continuous torque.

Thermal dissipation relies on natural convection, so airflow around the housing must remain unobstructed to preserve rated winding temperature. Power and feedback conductors exit through a cable tail, allowing the motor to be wired directly without intermediate connectors and reducing installation depth. Rotor position is monitored by a multi-turn absolute encoder, giving the drive a unique mechanical revolution count for homing-free startup after power is restored. The unit is supplied without a holding brake, which makes it well suited for horizontal axes where inverter torque can hold the load at rest. A narrow stator stack for motor size 030 limits inertia and supports quick acceleration in lightweight tooling and compact transfer mechanisms.

The motor has motor length B, which sets the overall body depth for envelope planning inside compact machines. Drive parameter files reference winding code 0300, so the amplifier uses the correct current limits and commutation tables for this winding. Encoder serial data and temperature signals are available through the cable harness for setup and operating supervision. The rotor uses permanent magnets to support stable torque production during positioning and speed-control tasks, and the feedback system helps the controller maintain accurate motion throughout repeated cycles.
