Product Description:

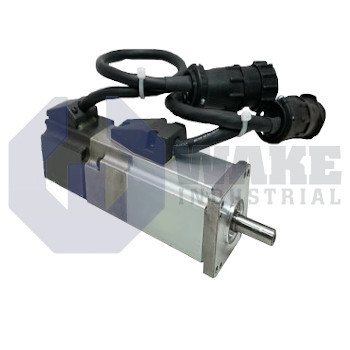

The Bosch Rexroth Indramat MSM030B-0300-NN-C0-CC1 belongs to the MSM IndraDyn S Synchronous Motors series and is used as a compact rotary actuator for servo axes in automated machinery. By coupling directly to a drive controller, the motor supplies the commanded torque and speed required for positioning, indexing, or coordinated motion tasks on assembly cells and material-handling equipment. Its compact format suits machines where limited mounting space and accurate axis response are both important. In servo-driven equipment, it is well suited to repeatable starts, stops, and short point-to-point moves within a small machine envelope.

One key safeguard is an electrically released brake. Power must be applied to disengage it, allowing fail-safe load holding when the axis is idle. The brake can sustain a static load because it delivers 1.27 Nm of holding torque. Heat is dissipated through natural convection, so the housing should be mounted where ambient air can circulate freely. Power, feedback, and brake conductors exit through a cable tail, which simplifies routing in space-restricted enclosures. For position verification, the motor uses an incremental encoder that emits phase-shifted pulse streams, allowing the controller to calculate speed and relative angle with fine resolution.

The motor has length code B and motor size 030, which provide a compact outside diameter while maintaining continuous torque density. It uses winding code 0300, which corresponds to resistance and inductance values used by matching drive parameters. These electrical and mechanical characteristics support load matching and acceleration targets without exceeding the thermal margin provided by convection cooling. The compact frame also helps the unit fit short axis layouts where available mounting space is limited. This arrangement suits packaging modules, handling units, and other small automation axes that require controlled rotation without a large motor body.
