Product Description:

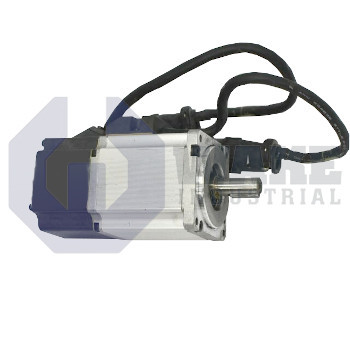

The MSM019B-0300-NN-M0-CH0 is a compact motor produced by Bosch Rexroth Indramat for the MSM IndraDyn S Synchronous Motors series. It couples to a drive amplifier and a load, turning electrical power into controlled rotation for indexing tables, pick-and-place axes, and similar stations that need moderate torque in a compact envelope. Its small frame diameter and short body length help it fit dense machine layouts while the integrated encoder sends precise position data to the drive. This layout suits compact automation cells where moving components are packed closely and cable space is limited.

In continuous operation, the motor sustains 0.32 Nm of torque, which suits light-load positioning tasks. Heat is removed by natural convection, so no external fan or liquid circuit is required. Power and feedback conductors exit through a cable tail, allowing strain relief inside the cabinet rather than at a fixed connector. Rotor position is provided by a multi-turn absolute encoder, which reports several mechanical revolutions to the drive for startup without homing. The motor has size 019, keeping the package compact while supporting the stated torque. That arrangement supports accurate feedback during repeated start-stop motion and short travel moves.

The motor has no holding brake, so the application must maintain position through external mechanics or drive torque. The length code is B, giving a body depth that fits shallow machine frames while leaving space for the output shaft. The motor uses a plain shaft, and no separate shaft seal is fitted, so the installation area should remain free of pressurized coolant or lubrication spray. This shaft style is intended for clean mounting areas where sealing at the motor face is not required. Winding code 0300 indicates the electrical characteristics expected by the connected controller for proper commutation.
