Product Description:

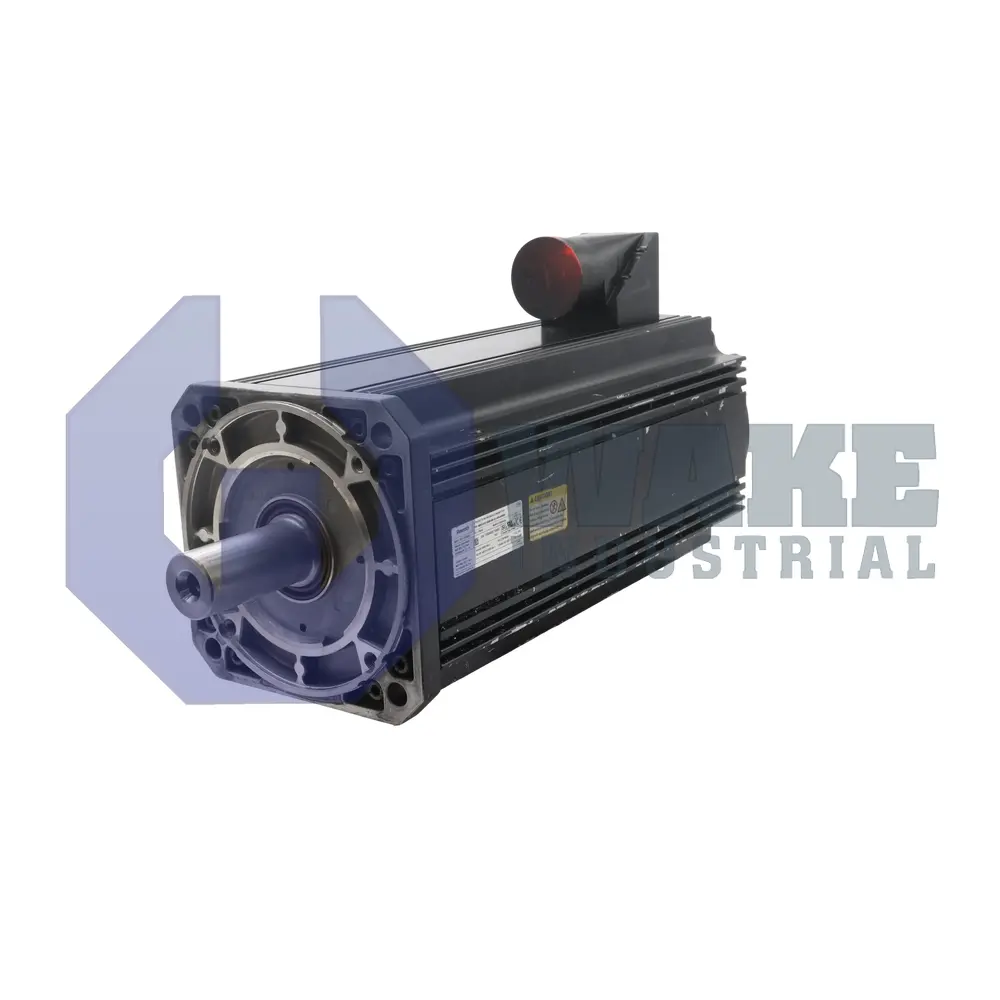

The MSK101E-0200-NN-M1-LG0-NNNN is an IndraDyn S synchronous servo motor manufactured by Bosch Rexroth Indramat within the MSK IndraDyn S Synchronous Motors series. It serves as an electromechanical actuator that converts drive current into controlled torque and speed for positioning tables, pick-and-place gantries, and other precision axes in automated production cells. In synchronized machinery, it can be used wherever rapid acceleration and repeatable stopping are required over frequent duty cycles. When paired with a compatible servo drive, the motor supports accurate speed regulation and repeatable positioning during continuous machine operation.

Cooling by natural convection allows heat to leave the frame without external blowers, which is useful where cabinet airflow is limited or remote fans are undesirable. Feedback is delivered through the Hiperface interface, and the encoder uses 128 signal periods per mechanical revolution with optical sensing for stable low-speed position data. A multi-turn absolute turn counter retains position information over multiple revolutions, so homing after power loss is not required in normal operation. This feedback arrangement gives the connected drive the data needed for commutation, velocity control, and position correction. The motor uses size 101 with an E length code and winding set 0200, and it is supplied without a holding brake for applications that rely on drive torque or external stopping hardware.

The housing has an IP65 enclosure that helps block dust and low-pressure water jets from the internal windings. Operation is specified for ambient temperatures from 0 to 40 °C, and the output uses a plain shaft for direct coupling through clamping hubs or other friction-locking connections. Insulation class 155 supports winding temperatures up to 155 °C during continuous-duty operation. This shaft style is often selected where the machine already uses a separate coupling element, and the sealed housing supports installation on equipment exposed to normal industrial dust and incidental water spray.
