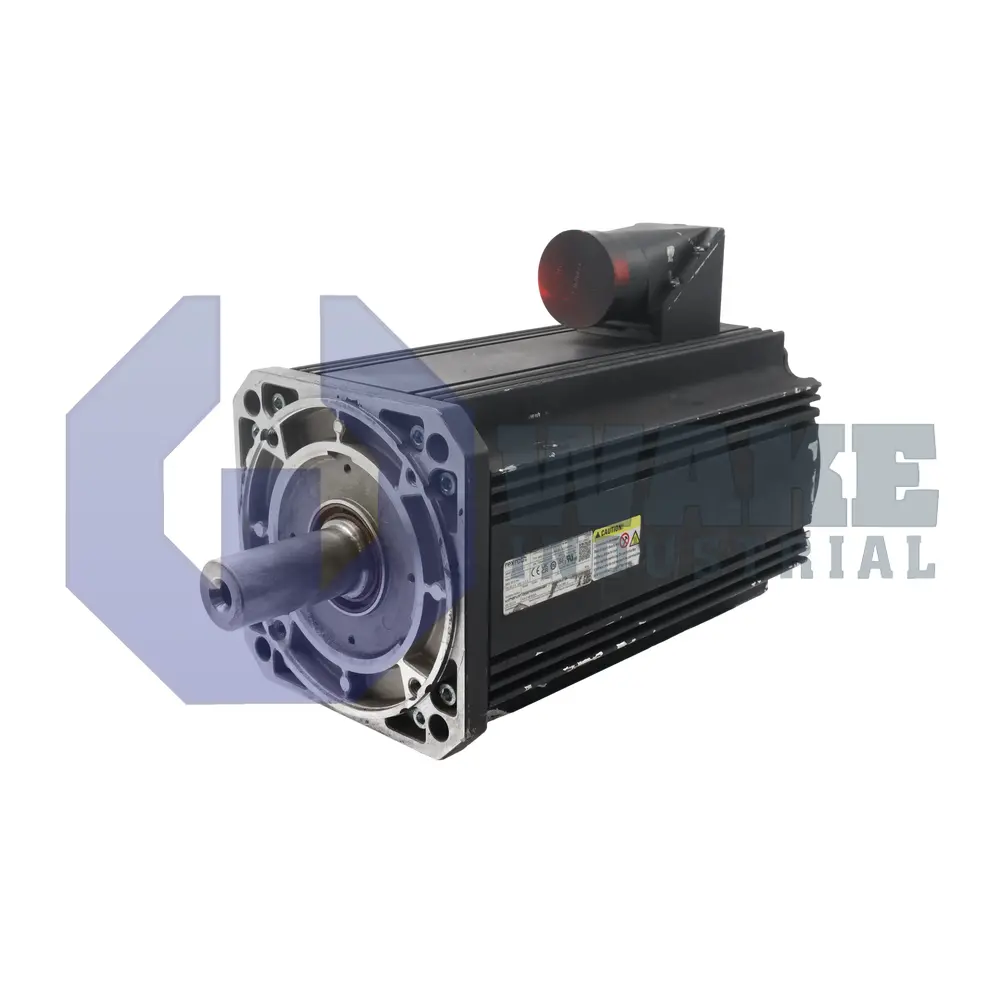

MSK101D-0200-NN-M3-AG0-NNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911332675
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
3 Minutes
52 Seconds
The Bosch Rexroth Indramat MSK101D-0200-NN-M3-AG0-NNNN is part of the MSK IndraDyn S Synchronous Motors series. This standard design servomotor features a 101 size motor with D length and uses natural convection for cooling. It has an IP65 protection rating, a plain shaft, and a multiturn absolute capacitive encoder with Hiperface interface and 16 signal periods.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK101D-0200-NN-M3-AG0-NNNN is a synchronous servomotor produced by Bosch Rexroth Indramat within the MSK IndraDyn S Synchronous Motors series. As a compact rotary drive element, it provides closed-loop torque and position control for automated handling stations, packaging machinery, and CNC axes. Its stator windings work with permanent magnets to deliver fast dynamic response, and the housing uses a standardized connector layout for integration with compatible IndraDrive controllers and existing machine frames. This arrangement supports smooth motion in indexing, transfer, and contouring tasks where repeatable axis behavior is required.
The motor has an IP65 enclosure that keeps dust and water jets away from internal components during washdown or metal-cutting duty. Heat is removed by natural convection, so airflow around the housing fins must remain unobstructed and no external fan is required. Position data are transmitted through the Hiperface digital interface, and the capacitive sensor head provides 16 signal periods per revolution for interpolation by the drive. Because the encoder is multiturn absolute, the axis retains position information after power loss and can return to operation without a homing cycle. The motor is supplied without a holding brake, which reduces rotating inertia and supports quick acceleration. Standard design features include a 101 frame size, D-length stack, and winding code 0200 for a compact torque-oriented layout.
The thermal system uses insulation class 155, which allows a higher permissible winding temperature before derating is required. A plain shaft without keys supports direct coupling to backlash-free clamping hubs, and the power connection is located on the A-side to simplify cable routing when motors are mounted side by side. Continuous operation is permitted in ambient temperatures from 0 to 40 °C, matching typical industrial machine environments with convection-based cooling. This layout is useful on densely packed axes where cable clearance and coupling accuracy matter.
Frequently Asked Questions about MSK101D-0200-NN-M3-AG0-NNNN:
Q: What type of encoder is used on the MSK101D-0200-NN-M3-AG0-NNNN motor?
A: The MSK101D-0200-NN-M3-AG0-NNNN motor uses a multiturn absolute encoder with capacitive technology for position feedback.
Q: What is the operating temperature range for the MSK101D-0200-NN-M3-AG0-NNNN?
A: This motor is designed for operation in ambient temperatures ranging from 0 to 40°C.
Q: What type of shaft does the MSK101D-0200-NN-M3-AG0-NNNN motor feature?
A: The MSK101D-0200-NN-M3-AG0-NNNN model is built with a plain shaft configuration.
Q: What is the protection rating of the MSK101D-0200-NN-M3-AG0-NNNN motor?
A: This servo motor achieves IP65 protection, offering a high level of protection against dust and water.
Q: Is a holding brake included with the MSK101D-0200-NN-M3-AG0-NNNN servo motor?
A: The MSK101D-0200-NN-M3-AG0-NNNN does not include a holding brake.
