MSK100D-0200-NN-M3-AP2-NNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911371994
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
3 Minutes
55 Seconds

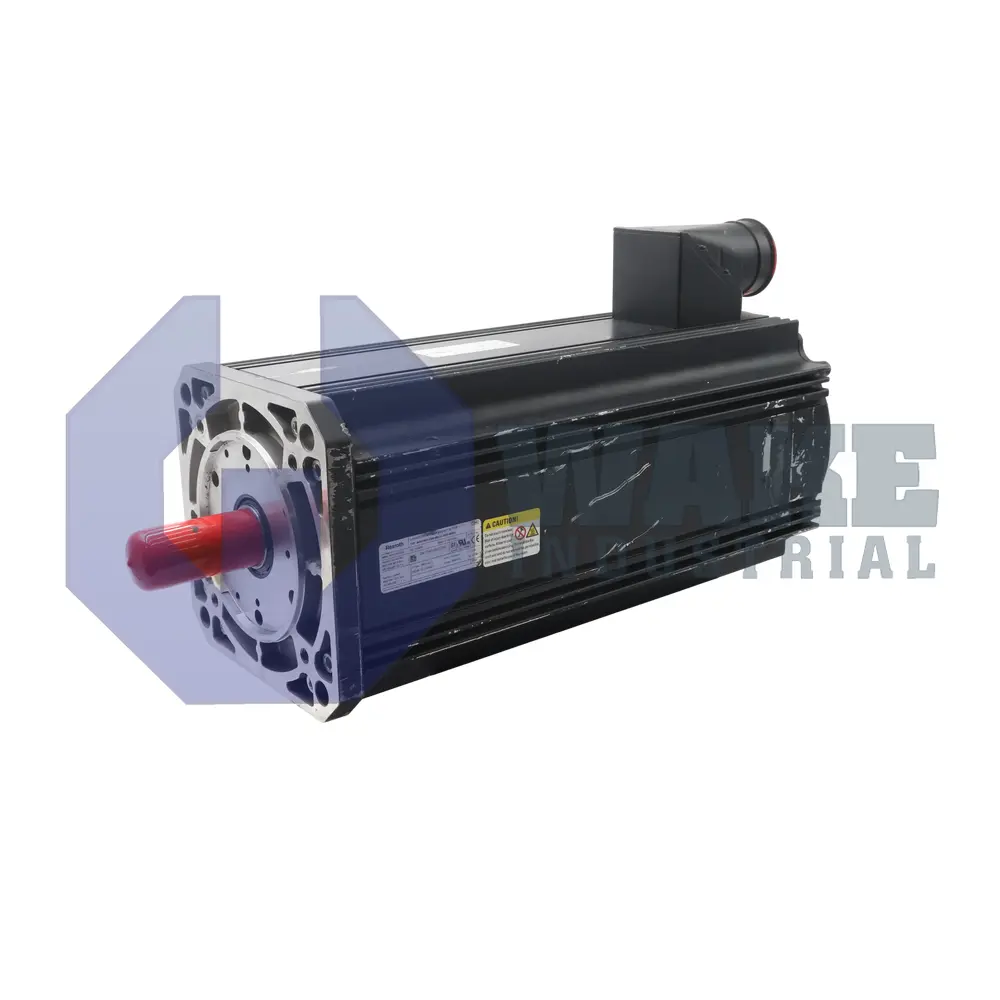

The Bosch Rexroth Indramat MSK100D-0200-NN-M3-AP2-NNNN is part of the MSK IndraDyn S Synchronous Motors series and has a motor size of 100 with length D. This servomotor features natural convection cooling and an IP65 protection rating, along with a shaft with keyway and an A-side power connector. It uses a multiturn absolute capacitive encoder with Hiperface interface and includes an electrically released holding brake delivering 70 Nm of torque.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK100D-0200-NN-M3-AP2-NNNN synchronous servomotor is produced by Bosch Rexroth Indramat for the MSK IndraDyn S Synchronous Motors series. It converts controlled electrical input into precise rotary motion for servo axes in automated machinery. The motor uses a standard housing, and the frame corresponds to motor size 100 with length code D. Cooling is done by natural convection, so no blower or liquid loop is required. The enclosure is rated IP65, which helps keep dust and water jets away from internal parts. Reliable operation is permitted in ambient temperatures from 0 °C to 40 °C.
The electromagnetic section follows winding code 0200, which identifies the electrical winding used with compatible IndraDrive amplifiers. Rotor position is sent through a Hiperface interface, and the link carries power and bidirectional data on two twisted pairs to reduce separate feedback wiring. Inside the encoder, capacitive sensing replaces optical disks for better immunity to oil mist and vibration. Resolution is fixed at 16 signal periods, and the drive interpolates each period electronically for finer position feedback. Because the feedback system is multiturn absolute, it can report shaft position over several revolutions after power loss without requiring a homing cycle.
An electrically released holding brake rated at 70 Nm locks the shaft when supply to the brake coil is removed, providing position retention during power-off events. The brake is useful on axes that must remain still at standstill when drive torque is not available. The winding insulation system is class 155, so temporary hot-spot temperatures up to 155 °C are permitted without deterioration. Power is connected on the A side, which can simplify cable routing in cabinets. The motor also uses a keyed shaft for positive torque transfer to a matched hub or coupling.
Frequently Asked Questions about MSK100D-0200-NN-M3-AP2-NNNN:
Q: What type of encoder technology is used in the MSK100D-0200-NN-M3-AP2-NNNN motor?
A: The MSK100D-0200-NN-M3-AP2-NNNN uses a multiturn absolute encoder based on capacitive technology for precision position feedback.
Q: What is the specification and type of holding brake on the MSK100D-0200-NN-M3-AP2-NNNN?
A: This model features a holding brake with a torque rating of 70 Nm, and it is electrically released.
Q: What cooling method is used in the MSK100D-0200-NN-M3-AP2-NNNN motor?
A: The MSK100D-0200-NN-M3-AP2-NNNN is cooled by natural convection, requiring no additional cooling systems.
Q: What is the shaft configuration for the MSK100D-0200-NN-M3-AP2-NNNN?
A: This motor is equipped with a shaft that includes a keyway, providing secure mechanical connection for couplings or pulleys.
Q: What is the protection rating of the MSK100D-0200-NN-M3-AP2-NNNN motor?
A: The MSK100D-0200-NN-M3-AP2-NNNN has an IP65 protection rating, meaning it is dust-tight and protected against water jets.
