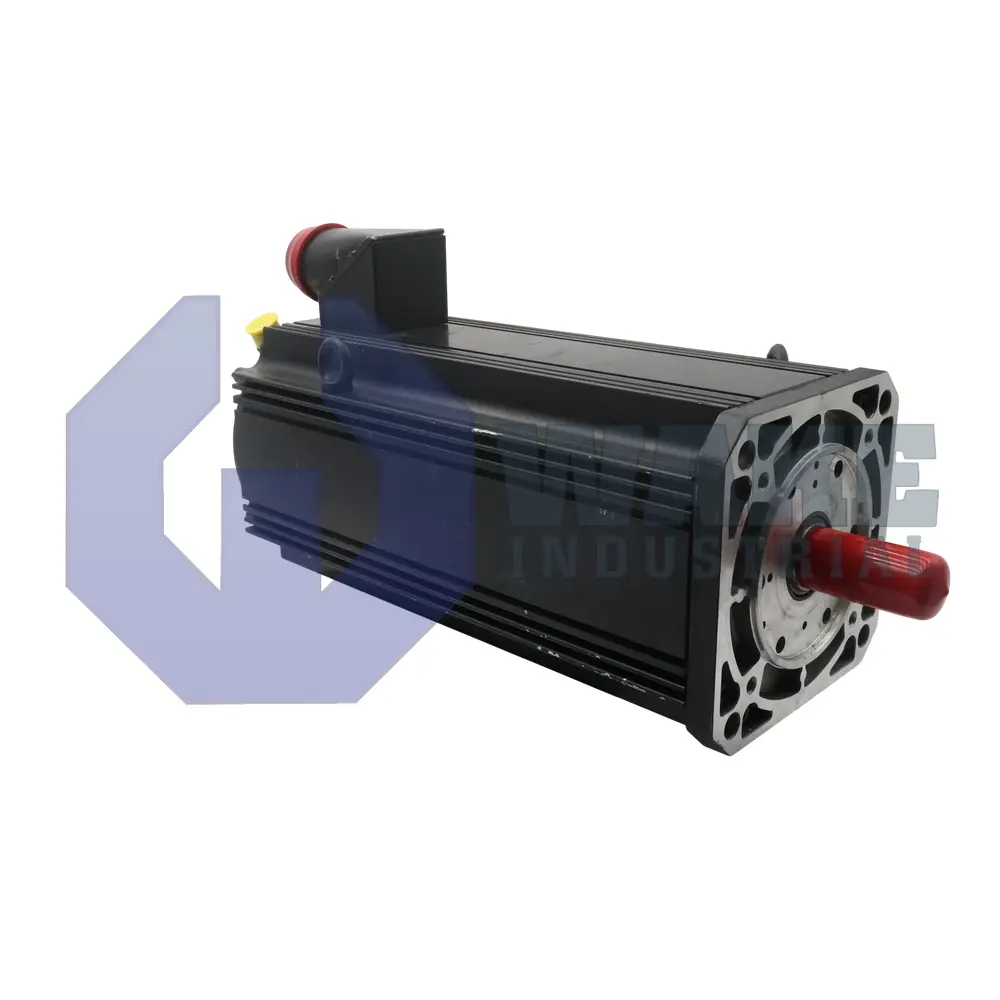

MSK100D-0200-NN-M1-BG0-NNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911322826
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
5 Minutes
34 Seconds
The Bosch Rexroth Indramat MSK100D-0200-NN-M1-BG0-NNNN is a standard design servomotor from the MSK IndraDyn S Synchronous Motors series. It features natural convection cooling, an optical multiturn absolute encoder with Hiperface interface, and a plain shaft. The power connector is on the B-side and the motor does not have a holding brake.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK100D-0200-NN-M1-BG0-NNNN is a synchronous servo motor manufactured by Bosch Rexroth Indramat for the MSK IndraDyn S Synchronous Motors series. The unit belongs to motor size 100 and uses a mid-length housing that places it in the upper midsize range of the platform. In automated stations, the motor converts drive commands from an IndraDrive controller into precise rotary motion for indexing tables, packaging axes, or gantry carriages. Its synchronous operating principle supports accurate speed control and repeatable positioning during coordinated motion across multiple machine axes. This makes it suitable for applications that require frequent starts, stops, and synchronized axis movement.
Cooling relies on natural convection, so the housing surface dissipates heat without an external blower or liquid circuit. Position data are transmitted through a Hiperface interface, which sends serial feedback information to the drive for closed-loop control. The optical measuring system provides 128 signal periods per mechanical revolution, and the optical scanning principle helps keep interpolation error low. Because the encoder is a multiturn absolute type, the drive retains shaft position across 4096 revolutions without requiring homing after power-up. The stator uses the standard design for this variant, so its electrical characteristics match the mid-length version of the motor.
The mechanical interface is a plain shaft, so torque is transmitted through friction couplings or clamp hubs rather than a keyed connection. Power terminals sit on the motor’s B-side, which helps separate motor leads from the feedback connection during cable routing. The axial length code D balances thermal mass with dynamic response, while the 0200 winding is intended for medium-voltage, medium-speed duty. The motor is supplied without a holding brake, so any static load retention must be provided by the drive or an external mechanical device. That arrangement is common where the axis does not need to remain locked after power is removed.
Frequently Asked Questions about MSK100D-0200-NN-M1-BG0-NNNN:
Q: How is the MSK100D-0200-NN-M1-BG0-NNNN servomotor cooled?
A: This model features natural convection cooling and does not require external fans for operation.
Q: What kind of encoder is equipped on the MSK100D-0200-NN-M1-BG0-NNNN servomotor?
A: The MSK100D-0200-NN-M1-BG0-NNNN servomotor uses a multiturn absolute optical encoder with 128 signal periods for precise position feedback.
Q: Where is the power connector positioned on the MSK100D-0200-NN-M1-BG0-NNNN servomotor?
A: The power connector is located on the B-side of the MSK100D-0200-NN-M1-BG0-NNNN for convenient electrical connection.
Q: Does the MSK100D-0200-NN-M1-BG0-NNNN servomotor include a holding brake?
A: This model is supplied without a holding brake.
Q: What type of shaft does the MSK100D-0200-NN-M1-BG0-NNNN servomotor have?
A: The MSK100D-0200-NN-M1-BG0-NNNN features a plain shaft design for direct mechanical coupling.
