Product Description:

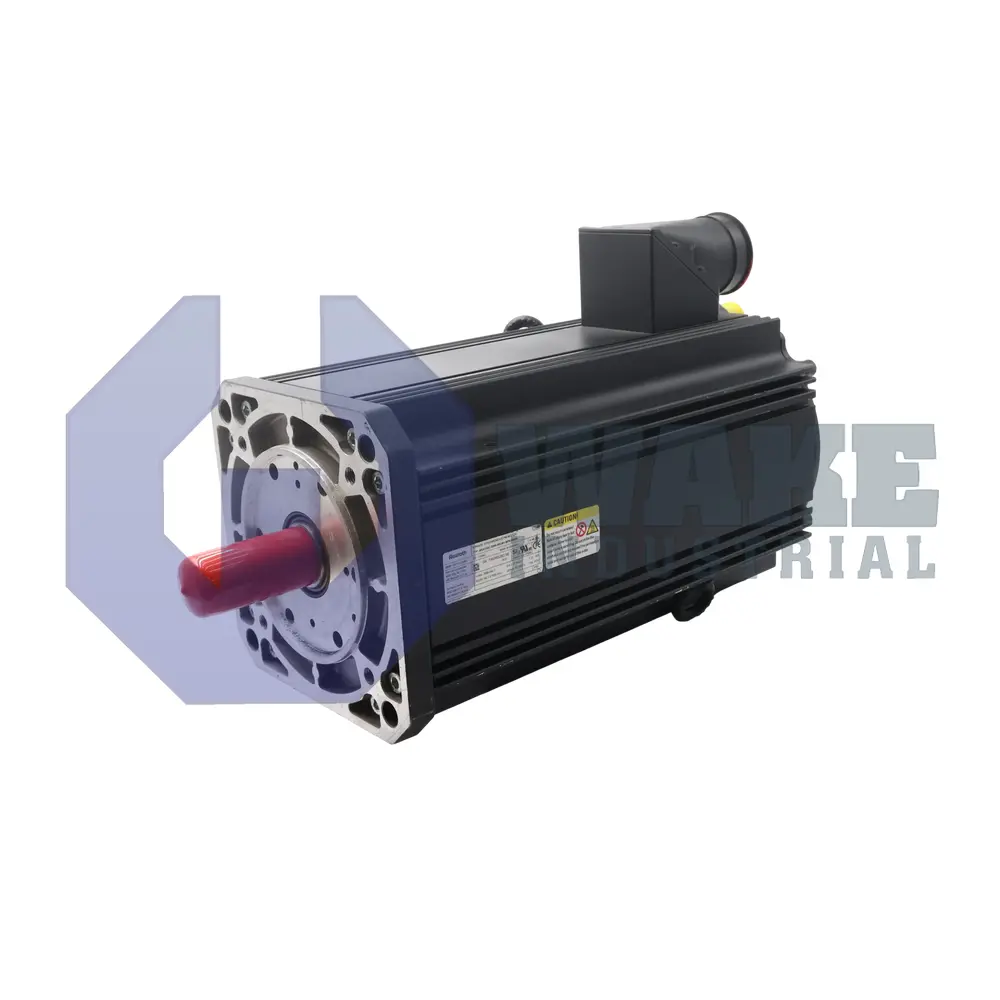

The MSK100C-0200-NN-M1-LP2-NNNN is a synchronous servo motor produced by Bosch Rexroth Indramat for the MSK IndraDyn S Synchronous Motors series. Within an automation cell, this motor converts commanded current into controlled torque and speed so that positioning tables, gantry axes, or packaging stations can move accurately without mechanical backlash. Its standard housing supports passive cooling, while the integrated optical encoder reports absolute shaft position to the drive for closed-loop regulation during indexing, point-to-point moves, and constant-speed operation. That combination suits automated axes that require repeatable acceleration and accurate stopping.

This model relies on natural convection to remove heat, which eliminates the need for forced-air or liquid circuits and simplifies cabinet design. Feedback is delivered over the Hiperface serial channel, and this interface carries encoder power and positional data while reducing connector count. The optical sensor generates 128 signal periods per revolution, and because the reader is a multiturn absolute device, the drive still knows the shaft angle and total turn count after a power cycle. For load holding or vertical axes, an electrically released brake supplies a static torque of 70 Nm, allowing the machine to remain stationary when the inverter is disabled.

The enclosure is sealed to IP65, protecting internal components from dust ingress and low-pressure water jets encountered on factory floors. Mechanical sizing follows the 100 frame code, so the stator outer diameter is 100 mm and the rotor shaft is furnished with a keyway for keyed couplings. Continuous operation is specified between 0–40 °C, and staying within this ambient band helps prevent derating while keeping winding temperatures inside the thermal class of 155. Electrical terminals are routed to a left-side power connector, and winding code 0200 indicates the resistance and inductance values used with matching IndraDrive controllers for stable current regulation.
