Product Description:

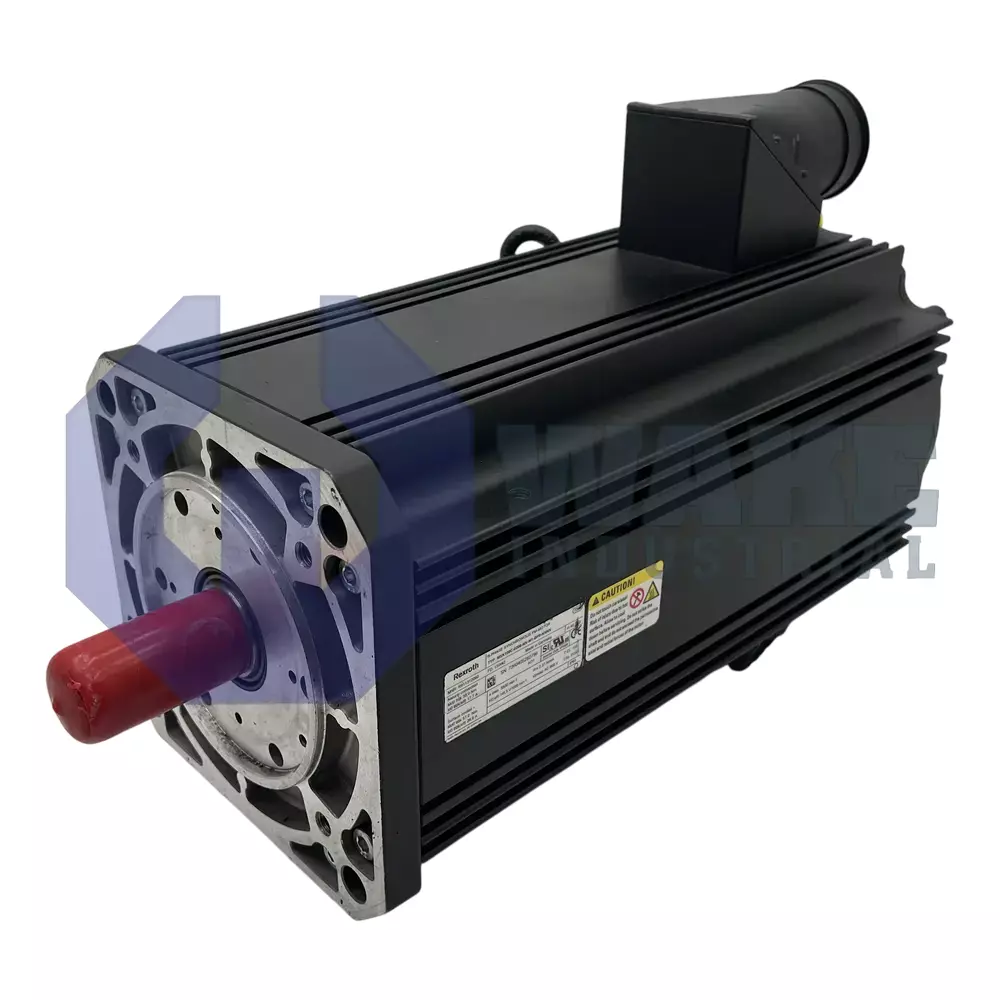

The MSK100C-0200-NN-M1-BP0-NNNN is a synchronous servomotor manufactured by Bosch Rexroth Indramat and assigned to the MSK IndraDyn S Synchronous Motors series. As an electrically commutated rotary actuator, it supplies precise torque and speed control for positioning tables, packaging axes, and other motion tasks in automated production lines where compact drives with accurate feedback are required. Its synchronous design supports closed-loop operation in equipment that depends on stable speed regulation and repeatable positioning during frequent cycle changes.

This model relies on natural convection for thermal dissipation, so no external blower or liquid circuit is necessary when the motor is installed in a ventilated enclosure. Position data are transmitted through a Hiperface interface, and the integrated optical encoder resolves rotation into 128 signal periods. The sensor uses optical scanning to minimize drift and maintains a multi-turn absolute count, allowing the control system to recover shaft angle after a power loss without rehoming. Mechanical proportions follow the C length classification, and the electrical characteristics match winding code 0200 for use with compatible IndraDrive amplifiers.

The motor is supplied without a holding brake, so static load retention must be handled by the drive or an external clamp. Frame designation 100 gives the flange and pilot dimensions that align with bulkhead mounts on transfer stations. The power connector is located on side B of the housing, which can simplify cable routing when the feedback plug is placed on the opposite face. A shaft with a keyway transmits torque to couplings or pulleys while helping prevent slip during load transfer. This layout suits high-cycle servo axes that require repeatable motion and secure mechanical engagement.
