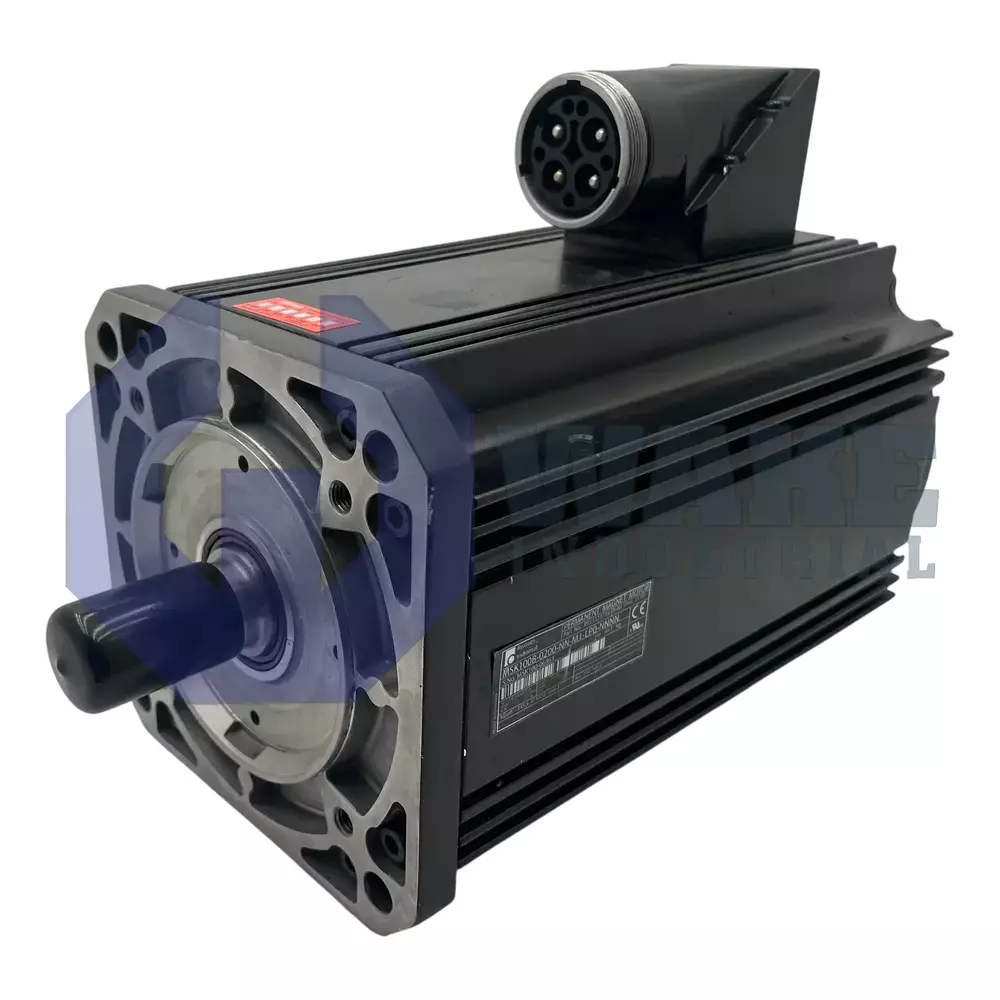

MSK100B-0200-NN-M1-LP0-NNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911321714
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
4 Minutes
27 Seconds
The Bosch Rexroth Indramat MSK100B-0200-NN-M1-LP0-NNNN is an IndraDyn S Synchronous Servomotor from the MSK IndraDyn S Synchronous Motors series. This standard design motor has natural convection cooling and comes with an optical multiturn absolute Hiperface encoder with 128 signal periods. It features a shaft with keyway, offers IP65 protection, and has a left-side power connector.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK100B-0200-NN-M1-LP0-NNNN is a synchronous servo motor built by Bosch Rexroth Indramat for the MSK IndraDyn S Synchronous Motors series. With frame size 100 and length code B, it suits medium-torque axes where a compact installation envelope is required. By converting controlled inverter current into precise rotary motion, it supports closed-loop positioning in packaging lines, material-handling gantries, and machine tools. This operating role makes it suitable for axes that must respond consistently to changing speed commands and load conditions.
Heat is removed through natural convection, so the motor does not require fans or liquid cooling circuits. A left-side power connector helps when cable routing must stay on one side of a horizontally mounted axis. The optical measuring system communicates through Hiperface and provides 128 signal periods per revolution, giving the drive accurate position data for current vector control and speed regulation. An enclosure rated to IP65 protects internal components from dust and low-pressure water jets. The motor is supplied without a holding brake, so power-off load retention must be handled externally.
The feedback system operates in multiturn absolute mode, allowing the controller to retain position information across multiple revolutions without battery backup or a homing cycle. This encoder arrangement gives the drive position information immediately after power-up. Continuous operation is permitted in ambient temperatures from 0 to 40 °C. Torque is transmitted through a shaft with a keyway, which provides positive mechanical coupling for pulleys, gears, or similar drive elements. Class 155 insulation supports elevated winding temperatures, and winding code 0200 indicates the electrical characteristics expected by compatible MSK drive amplifiers.
Frequently Asked Questions about MSK100B-0200-NN-M1-LP0-NNNN:
Q: How is the MSK100B-0200-NN-M1-LP0-NNNN motor cooled?
A: This model operates using natural convection for cooling, eliminating the need for external fans.
Q: What type of encoder interface does the MSK100B-0200-NN-M1-LP0-NNNN use?
A: The encoder interface for this motor is Hiperface.
Q: What kind of encoder technology and resolution does the MSK100B-0200-NN-M1-LP0-NNNN offer?
A: The encoder on this model features multiturn absolute optical technology with 128 signal periods of resolution.
Q: Does the MSK100B-0200-NN-M1-LP0-NNNN include a holding brake?
A: This motor is manufactured without a holding brake.
Q: What is the protection rating for the MSK100B-0200-NN-M1-LP0-NNNN motor?
A: The protection rating for this motor is IP65, providing complete dust protection and protection against water jets.
