Product Description:

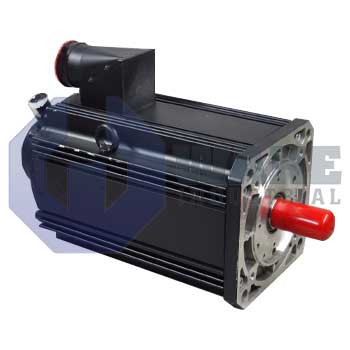

The MSK100B-0200-NN-M1-BP0-NNNN is a servo motor built by Bosch Rexroth Indramat and positioned within the MSK IndraDyn S Synchronous Motors series. This motor is intended for closed-loop position and velocity control in automated machinery, where precise torque delivery and compact size are critical. By integrating position feedback and a keyed output shaft, the unit supports direct coupling to gearboxes, ball screws, or pulleys, allowing motion controllers to execute accurate moves in packaging, handling, and machining axes. Its synchronous design supports stable response during repeated acceleration and deceleration on production axes.

The MSK100B variant relies on natural convection for heat removal, so its rated output can be achieved without external blowers or liquid circuits when mounted in free air. Inside the stator, winding code 0200 indicates the copper cross-section and turns count, giving resistance and inductance values that match IndraDrive amplifiers in medium current ranges. Position feedback is delivered through a Hiperface interface; the optical reader resolves the scale into 128 signal periods per revolution, and the stored electronic nameplate simplifies drive setup. The sensor is a multi-turn absolute system, so several mechanical turns are retained and power-on homing routines are unnecessary.

The housing diameter corresponds to motor size 100, while the active stack is identified as motor length B. Power conductors exit on the B-side, which helps keep cable routing on one face of a machine frame. Torque is transferred through a shaft with keyway, helping prevent slip under cyclical load. This arrangement is suitable for couplings that need positive torque transmission without relying only on friction. Because the model is supplied without a holding brake, vertical axes must be secured by drive torque or an external locking device during power-off conditions. The ribbed housing also requires unobstructed airflow around the frame.
