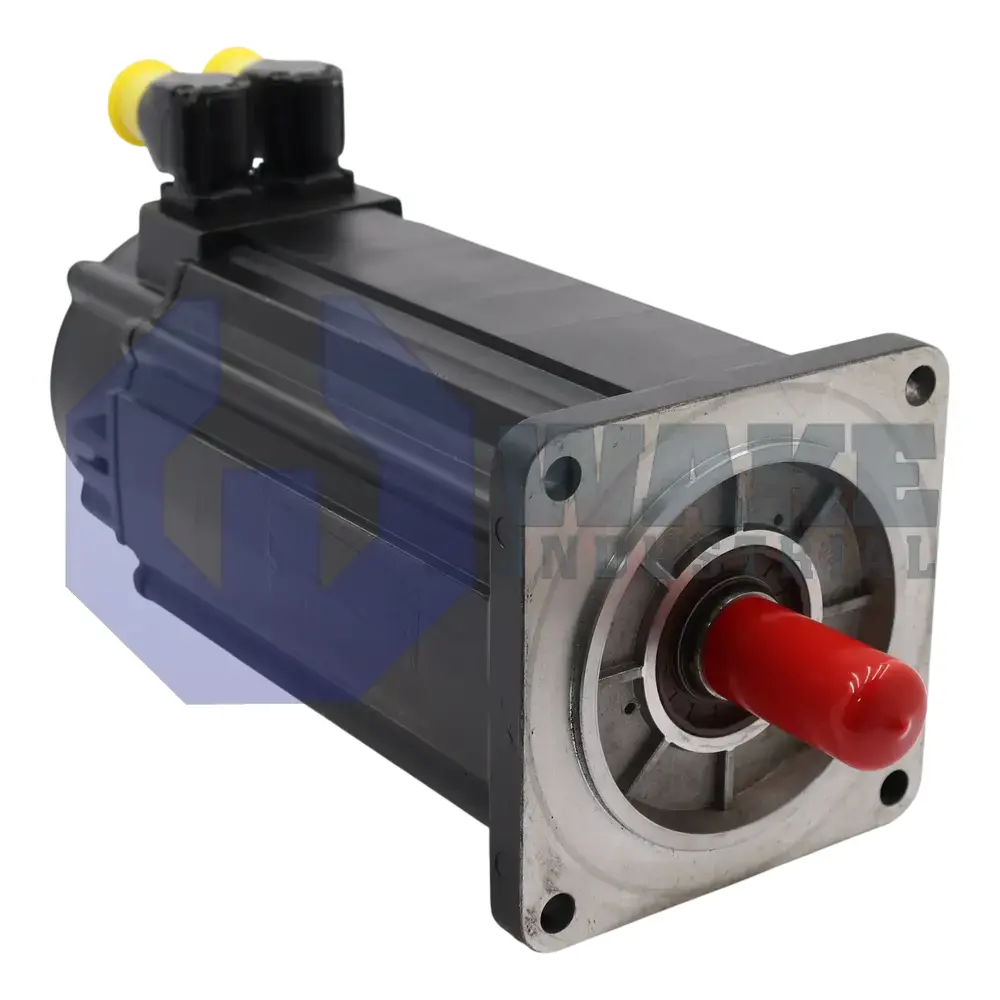

MSK076C-0450-NN-S3-UP1-NNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911373832
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
6 Minutes
34 Seconds
The Bosch Rexroth Indramat MSK076C-0450-NN-S3-UP1-NNNN is part of the MSK IndraDyn S Synchronous Motors series and features a standard design with a motor size of 076 and length C. It has natural convection cooling, an IP65 protection rating, and uses a Hiperface capacitive singleturn encoder with 16 signal periods of resolution. This servomotor comes with a shaft with keyway, a holding brake torque of 11 Nm, and operates within an ambient temperature range of 0 to 40 degrees Celsius.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK076C-0450-NN-S3-UP1-NNNN is a synchronous servo motor manufactured by Bosch Rexroth Indramat and supplied in the MSK IndraDyn S Synchronous Motors series. The unit converts drive-controller current into precise rotary motion for positioning, indexing, and continuous-duty axes in automated machinery. It is intended for closed-loop operation with a compatible drive and feedback system, where accurate speed regulation and repeatable positioning are required. Its compact 076 frame and C length create a torque-dense package that fits tightly spaced cabinets and gantry carriages while maintaining inertia ratios suited to modern motion loops.
Thermal behavior is managed by natural convection, so the motor can be mounted without forced airflow and still maintain the continuous-duty performance associated with winding code 0450. A rotatable 240° encoder connector simplifies cable routing where space around the motor is limited. The integrated capacitive encoder uses the Hiperface interface with 16 signal periods of single-turn resolution to send absolute position data directly to the drive. The motor also has an IP65 enclosure that seals the stator against dust and water jets encountered on production floors.
Machine safety is supported by a spring-applied, electrically released brake that delivers 11 Nm of holding torque, allowing vertical or load-holding axes to remain motionless when power is removed. A shaft with keyway supports positive mechanical locking for pulleys or gearboxes. The motor operates in ambient temperatures from 0–40 °C, which supports use in standard industrial environments. Its insulation system is rated to class 155 for the winding temperatures reached under cyclic loading. This helps protect the windings during repeated acceleration and deceleration cycles.
Frequently Asked Questions about MSK076C-0450-NN-S3-UP1-NNNN:
Q: What type and torque does the holding brake offer on the MSK076C-0450-NN-S3-UP1-NNNN motor?
A: The MSK076C-0450-NN-S3-UP1-NNNN motor features a holding brake that is electrically released and provides 11 Nm of holding torque.
Q: How is the MSK076C-0450-NN-S3-UP1-NNNN servo motor cooled?
A: This motor is cooled by natural convection and does not require forced air or external cooling systems.
Q: What encoder technology and resolution are used in the MSK076C-0450-NN-S3-UP1-NNNN?
A: The MSK076C-0450-NN-S3-UP1-NNNN uses a capacitive Hiperface singleturn encoder with 16 signal periods of resolution.
Q: What is the protection rating of the MSK076C-0450-NN-S3-UP1-NNNN motor?
A: The protection rating for this servo motor is IP65, indicating it is resistant to dust ingress and low-pressure water jets.
Q: What type of shaft configuration does the MSK076C-0450-NN-S3-UP1-NNNN motor have?
A: This model has a shaft with keyway for secure mechanical coupling.
