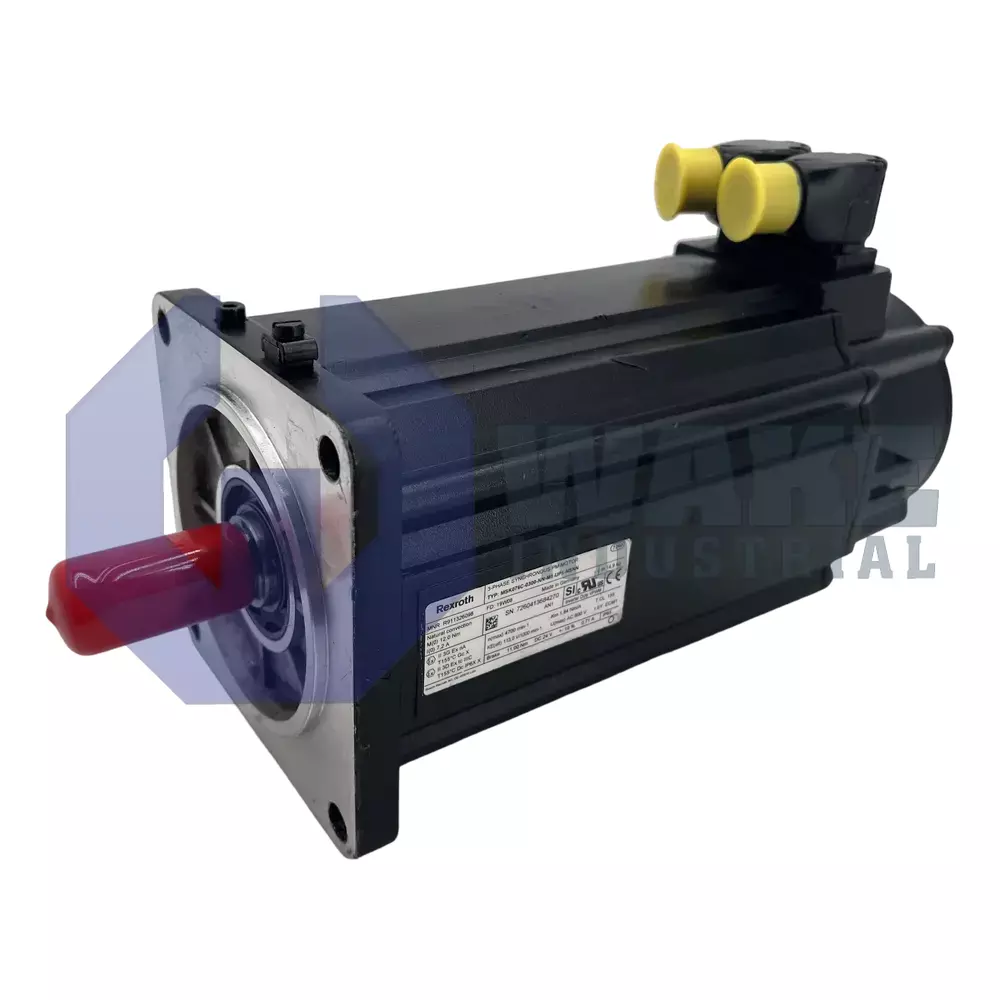

The MSK076C-0300-NN-M1-UP1-NNNN is manufactured by Rexroth Indramat Bosch as part of the MSK Servo Motor Series. It features a continuous torque of 13.5 Nm and a continuous current of 8.1 A. It also displays a maximum torque of 43.5 Nmand a maximum current of 32.4 A and a winding inductive of 12,600 mH

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

✓ In-Stock!

MSK076C-0300-NN-M1-UP1-NNNN

  • Rated 4.5 (11 total ratings)
  • MPN: R911317624
  • Stock: In-Stock, Ships Fast
  • Factory New Pricing Available!
    Request a Quote!
  • Call for Expedited Shipping and Product Condition Options
The MSK076C-0300-NN-M1-UP1-NNNN is manufactured by Rexroth Indramat Bosch as part of the MSK Servo Motor Series. It features a continuous torque of 13.5 Nm and a continuous current of 8.1 A. It also displays a maximum torque of 43.5 Nmand a maximum current of 32.4 A and a winding inductive of 12,600 mH

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Sell Us Your Surplus
Have a MSK076C-0300-NN-M1-UP1-NNNN to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Rexroth Indramat’s automation aftermarket accessories are among the most preferred in the market given that they offer exceptional performance in extreme durability, versatility, and integrated systems. Customers can configure motion products to suit their industrial needs. From Rexroth Indramat, you can get motion products like spindle drives, various motor types, and models, power cables, drive controllers as well as electronic controllers. The products are packaged in easy to follow and photo-documented instructions for easy installation, and for improved safety and reliability.

MSK076C-0300-NN-M1-UP1-NNNN synchronous motor is among the powerful motors of Rexroth Indramat product line. With the natural cooling that is used, you will have either 60K overtemperature or 100K. When the overtemperature is 100K and the unit at standstill, the continuous torque is 13.5 Nm while the continuous current stands at 8.1 A. At 60K the continuous torque at standstill is 12 Nm and the continuous current is 7.2 Amps. The maximum permissible current and torque stand at 32.4 A and 43.5 Nm respectively. At 200C, the voltage constant is 113V/min-1, the torque constant stands at 1.84 Nm/A and the winding resistance of the unit is 1.85 Ohm.

The components’ leakage capacitance is estimated to be 6.5 nH while the winding inductivity stands at 12.6 mH. You’ll need 4 pole pairs to operate the MSK076C-0300-NN-M1-UP1-NNNN. While the thermal time constant of the unit is 60 minutes, the rotor moment of inertia is 0.0043 Kgxm3 without braking. You can add brakes on your motor if you this will enhance performance. The maximum speed of the MSK076C-0300-NN-M1-UP1-NNNN motor is 4700min-1 while the sound pressure level is less than 75 dB(A). The unit’s degree of protection is IP65 protection while the ambient temperature for operation of 00C to 400C.

MSK076C-0300-NN-M1-UP1-NNNN Documents

  • MSK-076C-0300-NN-M1-UP1-NNNN
  • MSK076C 0300 NN M1 UP1 NNNN
  • MSK076C0300NNM1UP1NNNN
  • MSK76C-0300-NN-M1-UP1-NNNN

MSK076C-0300-NN-M1-UP1-NNNN Technical Specifications

Continuous Current at Standstill 100 K: 8.1 A
Mass : 13.8 kg
continuous torque at standstill, sur‐ face: 18 Nm
continuous current at standstill, surface: 10.8 A
maximum torque: 43.5 Nm
maximum current: 32.4 A
winding inductivity: 12,600 mH
leakage capacitance of the compo‐ nent: 6.5 nF
number of pole pairs: 4
thermal time constant: 25 min

Frequently Asked Questions about MSK076C-0300-NN-M1-UP1-NNNN


Q: Is the MSK076C-0300-NN-M1-UP1-NNNN suitable for applications where there migjt be expsoure to fluids?

A: Since the motor's shaft is protected with a shaft sealing ring, it remains protected from the ingress of fluids and sprays.

Q: What is the purpose of the optical encoder used in this model?

A: The optical encoder used in the motor provides precise control and feedback to ensure that accurate speed and position are maintained during every application.

Q: Is there any provision in the motor to assist heat dissipation?

A: For effetive heat dissipation, the motor's housing has been kept lightweight and is coated with a special paint that assists in heat disspation through the convection surface.

Q: Can the motor be integrated with existing systems?

A: Yes, this model can be easily integrated with other Rexroth products.

Q: What is the expected operational lifespan of this model?

A: The expected lifespan of this model can be over a decade in industrial settings if used in appropriate conditions and with proper maintenance.

Internal Product Review

  • ‘‘The MSK076C-0300-NN-M1-UP1-NNNN is a reliable platform for executing specific motion profiles and a wide range of speeds. The motor's robust enclosure provides the flexibility to use this model in various applications. ’’
