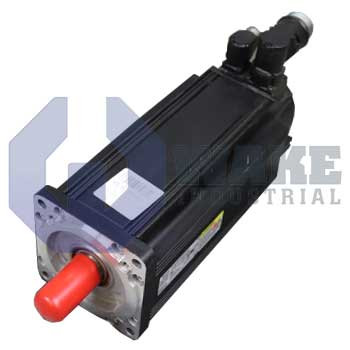

MSK075D-0450-NN-S3-UP0-NNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911373221
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
4 Minutes
50 Seconds
The Bosch Rexroth Indramat MSK075D-0450-NN-S3-UP0-NNNN is part of the MSK IndraDyn S Synchronous Motors series and features natural convection cooling. This standard design servomotor has a motor size of 075 and includes a rotatable 240° encoder connector with Hiperface interface and capacitive singleturn encoder technology. It has an IP65 protection rating and operates in ambient temperatures from 0 to 40°C.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK075D-0450-NN-S3-UP0-NNNN belongs to the MSK IndraDyn S Synchronous Motors series manufactured by Bosch Rexroth Indramat. This IndraDyn S synchronous servo motor is designed to deliver precise torque and speed regulation for automated machinery such as pick-and-place modules, indexing tables, and cartoners. Within the series, its 075 frame and D length provide a balance between continuous torque capability and a compact footprint, allowing it to fit multi-axis systems where installation space is limited while maintaining the positional accuracy required by modern motion controllers. That size combination is useful on machines that need a moderate motor envelope without sacrificing stable motion control during continuous production.
Cooling relies on natural convection, so the housing uses finned surfaces to move heat into the surrounding air without external fans or coolant. The feedback connector is rotatable through 240°, allowing the plug to align with cable routing and reduce bend stress. Position data travels over the Hiperface interface, and the encoder generates 16 signal periods per mechanical turn for sinusoidal commutation. Its sensing element uses capacitive technology, which tolerates oil mist better than optical discs, and the measurement system is single-turn, so absolute position is retained within one revolution. The motor uses winding code 0450 and meets insulation class 155. It also uses the standard mechanical design and is supplied without a holding brake for applications where the drive supplies static torque.
The housing is rated IP65, which protects internal components from dust and low-pressure water jets and allows direct mounting on the machine without a separate enclosure. Reliable service is specified for ambient air from 0 to 40 °C, so additional climate control is usually unnecessary in typical factory conditions. Power exits through a shaft with a keyway, providing positive engagement for pulleys or couplings used on conveyors, gantries, and format-adjustment axes. The sealed housing helps keep contaminants away from internal components during routine production use.
Frequently Asked Questions about MSK075D-0450-NN-S3-UP0-NNNN:
Q: What type of cooling method is used in the MSK075D-0450-NN-S3-UP0-NNNN motor?
A: The MSK075D-0450-NN-S3-UP0-NNNN features natural convection cooling and does not require external fans.
Q: What encoder technology and interface are integrated into the MSK075D-0450-NN-S3-UP0-NNNN?
A: This motor uses capacitive encoder technology with a Hiperface interface for feedback.
Q: What type of shaft configuration does the MSK075D-0450-NN-S3-UP0-NNNN have?
A: The shaft on this model includes a keyway for secure coupling to mechanical loads.
Q: What level of protection rating does the MSK075D-0450-NN-S3-UP0-NNNN provide?
A: This motor is protected to IP65 standards, making it dust tight and protected against low-pressure water jets.
Q: What is the operating ambient temperature range for the MSK075D-0450-NN-S3-UP0-NNNN?
A: The ambient operating temperature range for this motor is 0 to 40°C.
