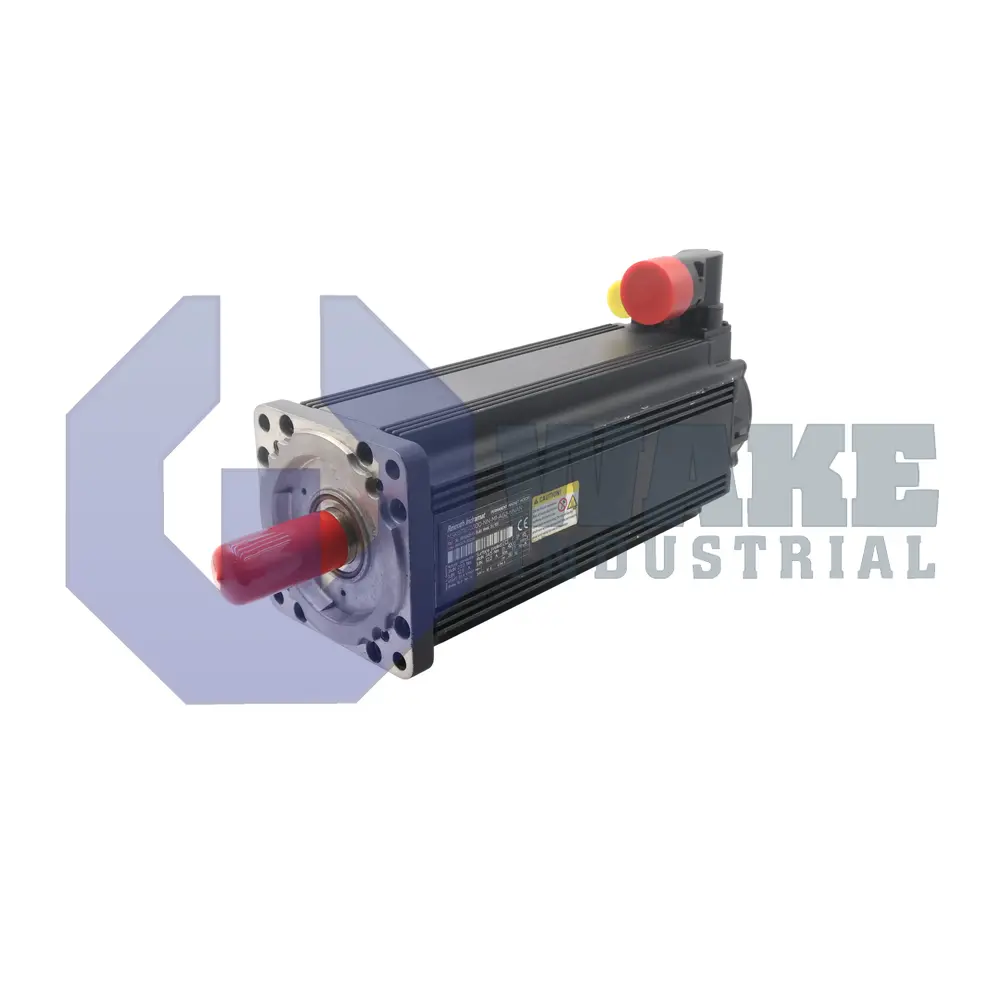

MSK071E-0300-NN-M3-UP0-NNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911340124
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
5 Minutes
52 Seconds
The Bosch Rexroth Indramat MSK071E-0300-NN-M3-UP0-NNNN is part of the MSK IndraDyn S Synchronous Motors series. This servomotor features a shaft with keyway, a protection rating of IP65, and uses a natural convection cooling design. It is equipped with a multiturn absolute capacitive encoder with Hiperface interface and a rotatable 240 degree connector.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK071E-0300-NN-M3-UP0-NNNN is a synchronous servo motor manufactured by Bosch Rexroth Indramat and included in the MSK IndraDyn S Synchronous Motors series. As an IndraDyn S unit, it delivers controllable torque and speed for industrial automation axes such as packaging stations, machine tool spindles, and gantry drives. The motor connects to the load with a keyed shaft and works with Rexroth drive controllers to provide precise closed-loop positioning.
The housing carries a protection rating of IP65, so dust ingress and low-pressure water jets do not affect internal components during cabinet-mount or open-machine installation. Heat is removed solely by natural convection, eliminating the need for external blowers or liquid circuits and simplifying panel layout. Position feedback travels over the Hiperface digital interface, which allows simultaneous transmission of encoder and diagnostic data between the motor and the drive. Inside the encoder, a pole wheel produces 16 signal periods per mechanical revolution, giving sufficient resolution for smooth velocity regulation. Sensor operation relies on capacitive measuring technology, providing immunity to magnetic fields and permitting higher shock tolerance than optical designs.
Multi-turn position tracking is retained through the power-off range of the drive because the encoder is a Multiturn Absolute device that counts shaft revolutions without battery backup. The mechanical platform is based on frame size 071 with motor length code E, offering a balance between continuous torque and installation depth for mid-range machinery. Ambient operation is specified between 0–40 °C, allowing direct use on factory floors without additional cooling loops, while insulation class 155 ensures winding integrity at elevated internal temperatures. The rotatable 240° feedback connector eases cable routing in confined cabinets. Winding designation 0300 matches the drive parameters for this motor and supports accurate current control.
Frequently Asked Questions about MSK071E-0300-NN-M3-UP0-NNNN:
Q: How is the MSK071E-0300-NN-M3-UP0-NNNN servo motor cooled?
A: The MSK071E-0300-NN-M3-UP0-NNNN motor uses natural convection for cooling.
Q: What kind of encoder is used on the MSK071E-0300-NN-M3-UP0-NNNN?
A: This motor features a multiturn absolute encoder using capacitive technology with Hiperface interface.
Q: How much can the encoder connector on the MSK071E-0300-NN-M3-UP0-NNNN be rotated?
A: The encoder connector on this model is rotatable by 240°, allowing flexible installation.
Q: Does the MSK071E-0300-NN-M3-UP0-NNNN motor come with a holding brake?
A: This model is manufactured without a holding brake.
Q: What is the protection rating of the MSK071E-0300-NN-M3-UP0-NNNN motor?
A: The protection rating for this motor is IP65, providing ingress protection against dust and water jets.
