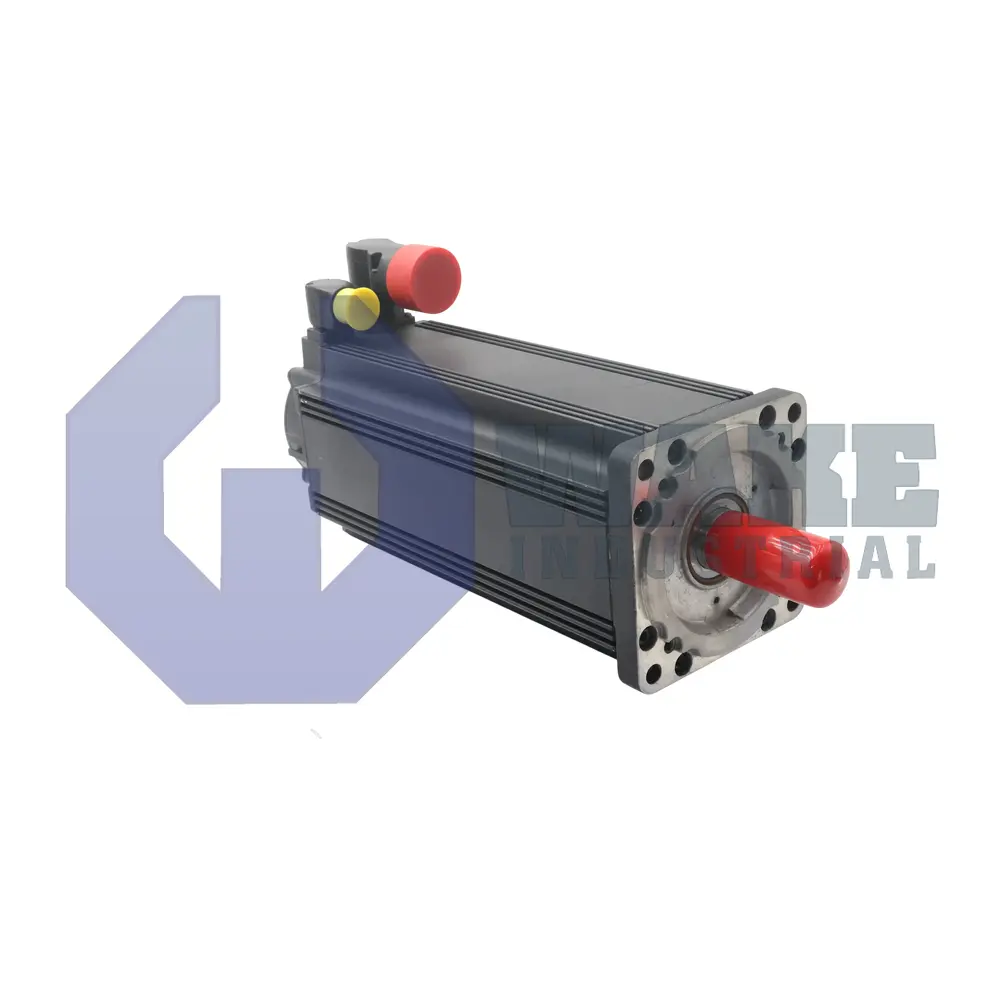

MSK071E-0200-NN-M3-AG0-NNAN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911372833
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
3 Minutes
24 Seconds
The Bosch Rexroth Indramat MSK071E-0200-NN-M3-AG0-NNAN is part of the MSK IndraDyn S Synchronous Motors series. This servomotor features natural convection cooling, a plain shaft, and a protection rating of IP65. It uses a Hiperface multiturn absolute capacitive encoder and operates within an ambient temperature range of 0 to 40 degrees Celsius.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK071E-0200-NN-M3-AG0-NNAN is an IndraDyn S synchronous servomotor built by Bosch Rexroth Indramat for the MSK IndraDyn S Synchronous Motors series. The motor uses a reduced runout design that helps minimize axial deviation, and it is supplied in size 071 with the extended length code E for applications that need moderate torque in a compact installation space. It is delivered without a holding brake, so any load that must remain fixed during power loss requires external locking or drive-produced holding torque. This unit is suited for closed-loop positioning tasks in packaging systems, material-handling equipment, and pick-and-place axes where repeatable motion is required.
Heat is removed by Natural convection, eliminating the need for forced-air or liquid cooling hardware. The housing is rated IP65, which helps protect internal parts from dust and low-pressure water jets and allows use outside a sealed cabinet in many machines. An A-side power connector keeps the main conductors on the same end as the drive cabinet, which can simplify cable routing and reduce bending stress near the motor. Feedback signals are exchanged over the Hiperface protocol, and rotor position is measured with a Capacitive sensor system that tolerates vibration well. Inside the encoder, the measuring system provides 16 signal periods, giving the drive accurate commutation data, and the stator insulation uses class 155 materials for continuous-duty operation.
Absolute position data is retained over power cycles through a multiturn absolute feedback system, so the axis can report shaft position after restart without losing turn information. The mechanical output uses a plain shaft, so torque is transferred through friction-based couplings or machine-side elements selected for the application. Electrical operation is permitted across an ambient range of 0–40 °C, which suits typical factory conditions without additional cooling equipment. The motor uses winding code 0200, and that winding arrangement sets the voltage constant and current demand expected by a matching drive amplifier. This combination supports predictable servo response in machines that require accurate speed and position control over repeated motion cycles.
Frequently Asked Questions about MSK071E-0200-NN-M3-AG0-NNAN:
Q: How is the MSK071E-0200-NN-M3-AG0-NNAN motor cooled?
A: The MSK071E-0200-NN-M3-AG0-NNAN features natural convection cooling, operating efficiently without the need for additional fans or forced air systems.
Q: What type of shaft does the MSK071E-0200-NN-M3-AG0-NNAN motor have?
A: This model uses a plain shaft configuration, providing a smooth output shaft for direct coupling to mechanical components.
Q: What encoder interface and technology are present on the MSK071E-0200-NN-M3-AG0-NNAN motor?
A: The encoder utilizes Hiperface interface technology and provides multiturn absolute position feedback using a capacitive mechanism.
Q: Where is the power connector located on the MSK071E-0200-NN-M3-AG0-NNAN model?
A: The power connector is situated on the A-side of the motor for convenient cable routing.
Q: What level of protection does the MSK071E-0200-NN-M3-AG0-NNAN provide?
A: This servo motor holds an IP65 protection rating, ensuring complete dust protection and resistance to low-pressure water jets.
