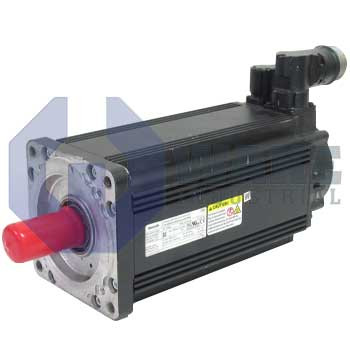

The Bosch Rexroth Indramat MSK071D-0200-NN-M1-UG1-NN04 is an IndraDyn S Synchronous Servomotor with a plain shaft, natural convection cooling, and an IP65 protection rating. As part of the MSK IndraDyn S Synchronous Motors series, it features a multiturn absolute optical encoder with Hiperface interface and 128 signal periods of resolution. The motor is equipped with an electrically-released holding brake providing 23 Nm of torque and supports an operating temperature range of 0 to 40°C.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK071D-0200-NN-M1-UG1-NN04 is an IndraDyn S synchronous servomotor supplied by Bosch Rexroth Indramat within the MSK IndraDyn S Synchronous Motors series. It is intended for closed-loop motion tasks on pick-and-place axes, feed drives, and conveyor positioning units. By delivering controlled torque and high-resolution feedback, the motor allows the connected drive controller to execute rapid starts, stops, and interpolated moves that are essential for modern automated machinery. This arrangement supports accurate speed regulation during frequent indexing cycles and helps the machine maintain repeatable axis response under changing loads.
Heat generated by the stator is removed through natural convection, so the unit can be mounted without external fans while still keeping winding temperature within safe limits. Position feedback travels over a Hiperface interface, and this digital protocol carries absolute multi-turn data while reducing cabling between the motor and the drive. Inside the encoder, an optical scale produces 128 signal periods, giving fine angular resolution for smooth velocity loops. An electrically released holding brake supplies 23 Nm of static torque, enabling the axis to remain fixed when power is removed. The housing is sealed to IP65, which prevents dust ingress and protects internal components against low-pressure water jets.
The mechanical interface uses a plain shaft, so couplings or pulleys can be press-fitted without keyways, which helps reduce backlash in precision assemblies. Reliable operation is permitted in ambient temperatures from 0 to 40 °C, matching the climate maintained inside most control cabinets. Class 155 insulation permits higher winding temperatures before thermal aging starts, providing extra margin during peak current bursts. The motor has size code 071, which indicates the stator diameter and flange pattern, while winding code 0200 identifies the electrical resistance and inductance values used when matching the motor with a suitable power module.
Frequently Asked Questions about MSK071D-0200-NN-M1-UG1-NN04:
Q: How is the MSK071D-0200-NN-M1-UG1-NN04 servo motor cooled?
A: This model is cooled by natural convection, so it operates without the need for forced airflow or external fans.
Q: Does the MSK071D-0200-NN-M1-UG1-NN04 include a holding brake and what is its torque?
A: The MSK071D-0200-NN-M1-UG1-NN04 is equipped with a holding brake that is electrically released and provides a holding torque of 23 Nm.
Q: What type of encoder connector is provided on the MSK071D-0200-NN-M1-UG1-NN04?
A: This motor features a rotatable encoder connector adjustable up to 240°, offering flexible cable routing during installation.
Q: What encoder technology and resolution are used in this motor?
A: The MSK071D-0200-NN-M1-UG1-NN04 uses a multiturn absolute optical encoder with Hiperface interface and provides 128 signal periods of resolution.
Q: What is the protection rating of the MSK071D-0200-NN-M1-UG1-NN04 servo motor?
A: This model is rated with an IP65 protection rating, ensuring resistance to dust and low-pressure water jets from any direction.
