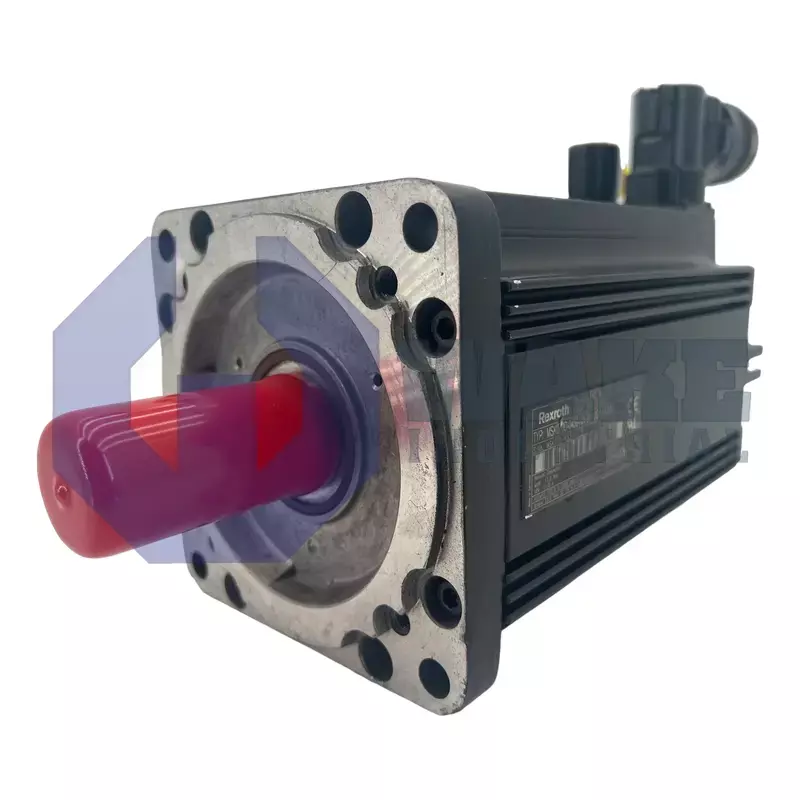

MSK070D-0450-NN-M1-UG1-NNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911299944
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
4 Minutes
43 Seconds
The Bosch Rexroth Indramat MSK070D-0450-NN-M1-UG1-NNNN is part of the MSK IndraDyn S Synchronous Motors series. This servomotor features natural convection cooling, a plain shaft, and comes with a holding brake that provides 23 Nm of torque. It uses an optical multiturn absolute encoder with Hiperface interface and a rotatable connector.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK070D-0450-NN-M1-UG1-NNNN servo motor is produced by Bosch Rexroth Indramat for the MSK IndraDyn S Synchronous Motors series. As an IndraDyn S synchronous servo motor, it converts regulated AC power from compatible drive controllers into precise rotary motion for packaging lines, pick-and-place robots, printing cylinders, and general machine-tool axes. It is intended for closed-loop motion tasks that require accurate speed control, repeatable positioning, and smooth response during frequent start-stop cycles. The D-length construction allows a higher stack height than shorter variants, which increases continuous torque within the same frame diameter.
The motor uses natural convection for heat dissipation, so installation must leave clearance around the housing and no external fan is required. Its encoder connector is rotatable through 240°, letting the cable outlet be aligned toward the cabinet without twisting the cable. Position feedback is exchanged through the Hiperface interface, and the encoder provides 128 signal periods per revolution for interpolation in the drive. Electrical parameters follow winding code 0450, which corresponds to coil resistance and inductance suited to medium-torque, medium-speed duty. The standard mechanical layout uses a plain shaft that couples directly with clamping hubs or other friction-fit connections.
An optical scanning element inside the encoder helps maintain low jitter, and the multiturn absolute design retains the actual shaft position across 4,096 mechanical turns. That arrangement allows position information to remain available after power-up without a homing move. For static load holding, the electrically released brake supplies 23 Nm of counter-torque, allowing vertical or safety-critical axes to remain locked when the drive is disabled. The size code 070 corresponds to a housing diameter near 82 mm, letting the motor fit compact machinery without sacrificing continuous performance. All bearings are lubricated for the full maintenance-free interval provided for this motor.
Frequently Asked Questions about MSK070D-0450-NN-M1-UG1-NNNN:
Q: Does the MSK070D-0450-NN-M1-UG1-NNNN motor include a holding brake, and what is its torque?
A: This model features a holding brake that is electrically-released and provides a brake torque of 23 Nm.
Q: What type of encoder technology and interface are used in the MSK070D-0450-NN-M1-UG1-NNNN motor?
A: The MSK070D-0450-NN-M1-UG1-NNNN motor is equipped with a multiturn absolute optical encoder using Hiperface interface.
Q: What cooling method does the MSK070D-0450-NN-M1-UG1-NNNN synchronous motor utilize?
A: This motor uses natural convection as its cooling method.
Q: What shaft type does the MSK070D-0450-NN-M1-UG1-NNNN have?
A: The motor comes with a plain shaft design, providing a smooth connection without keyways.
Q: How flexible is the encoder connector positioning on the MSK070D-0450-NN-M1-UG1-NNNN?
A: The encoder connector is rotatable up to 240° on this model for flexible installation.
