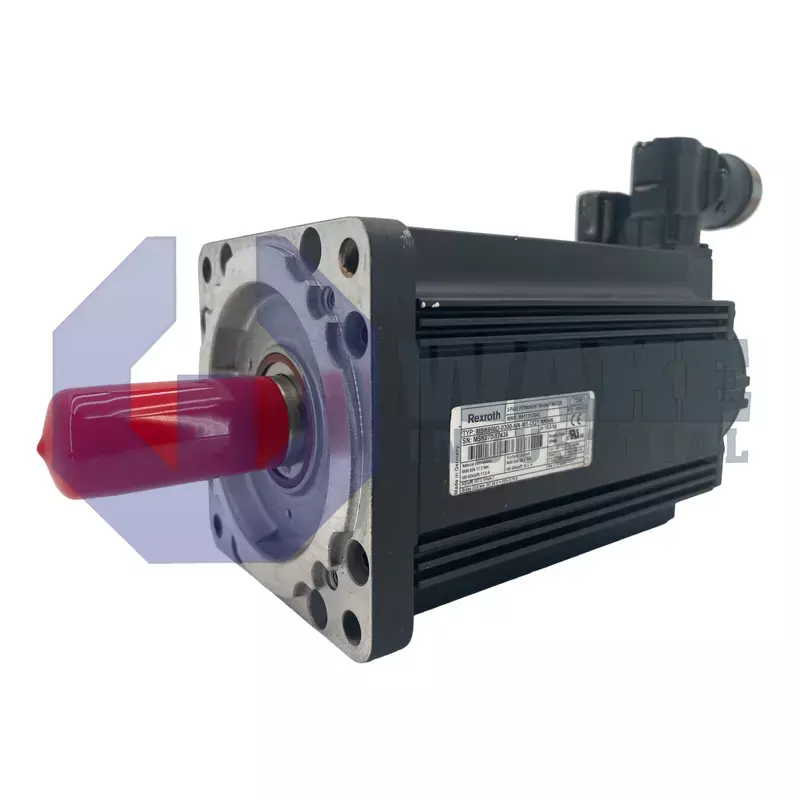

The Bosch Rexroth Indramat MSK070D-0300-NN-M1-UG1-NNNN is an IndraDyn S Synchronous Servomotor from the MSK IndraDyn S Synchronous Motors series, featuring a standard design and natural convection cooling. It is equipped with an optical Hiperface multiturn absolute encoder and a rotatable 240° connector, and includes a holding brake with a torque of 23 Nm.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK070D-0300-NN-M1-UG1-NNNN belongs to the MSK IndraDyn S Synchronous Motors series manufactured by Bosch Rexroth Indramat. It is a permanent-magnet servomotor intended for precise closed-loop positioning and velocity control on packaging lines, handling robots, and other automated machinery. By integrating high-resolution feedback, the unit allows direct coupling to machine mechanics while maintaining the dynamic response demanded in multi-axis systems.
Thermal management is handled by natural convection, so the frame dissipates heat without external fans or liquid circuits. The housing uses the standard design of this series, and its frame corresponds to size 070, giving a stator diameter suitable for mid-range torque requirements. Overall axial build is identified by motor length code D, while electromagnetic characteristics are tied to winding code 0300; together these codes match the motor to Rexroth drive modules that supply the correct current and voltage. Position data is transferred through a Hiperface interface, enabling synchronous digital communication between the motor encoder and the drive controller. An optical scanning system resolves 128 signal periods per revolution, providing fine incremental data that supports smooth low-speed operation and accurate interpolation.
The feedback plug is rotatable through 240°, letting the connector be oriented to suit cable routing inside crowded cabinets. Absolute position is retained by a multi-turn absolute encoder that records multiple shaft revolutions, and its sensing principle is optical, which minimizes magnetic interference. An electrically released holding brake is integrated; it clamps the rotor with 23 Nm of torque, keeping vertical or suspended loads stationary when power is removed. The plain shaft profile eliminates keys or splines, reducing runout and facilitating coupling with backlash-free clamping hubs.
Frequently Asked Questions about MSK070D-0300-NN-M1-UG1-NNNN:
Q: What cooling method is employed by the MSK070D-0300-NN-M1-UG1-NNNN motor?
A: The MSK070D-0300-NN-M1-UG1-NNNN uses a natural convection cooling system that operates without the need for additional fans or liquid cooling.
Q: Does the MSK070D-0300-NN-M1-UG1-NNNN have a holding brake?
A: This model comes equipped with an electrically-released holding brake that provides a holding torque of 23 Nm.
Q: How adjustable is the encoder connector on the MSK070D-0300-NN-M1-UG1-NNNN?
A: The encoder connector can be rotated up to 240 degrees for flexible installation.
Q: What type of encoder and interface does the MSK070D-0300-NN-M1-UG1-NNNN use?
A: This motor features an optical multiturn absolute encoder using the Hiperface interface and 128 signal periods.
Q: What shaft type does the MSK070D-0300-NN-M1-UG1-NNNN motor have?
A: The MSK070D-0300-NN-M1-UG1-NNNN has a plain shaft design, suitable for applications not requiring keyways.
