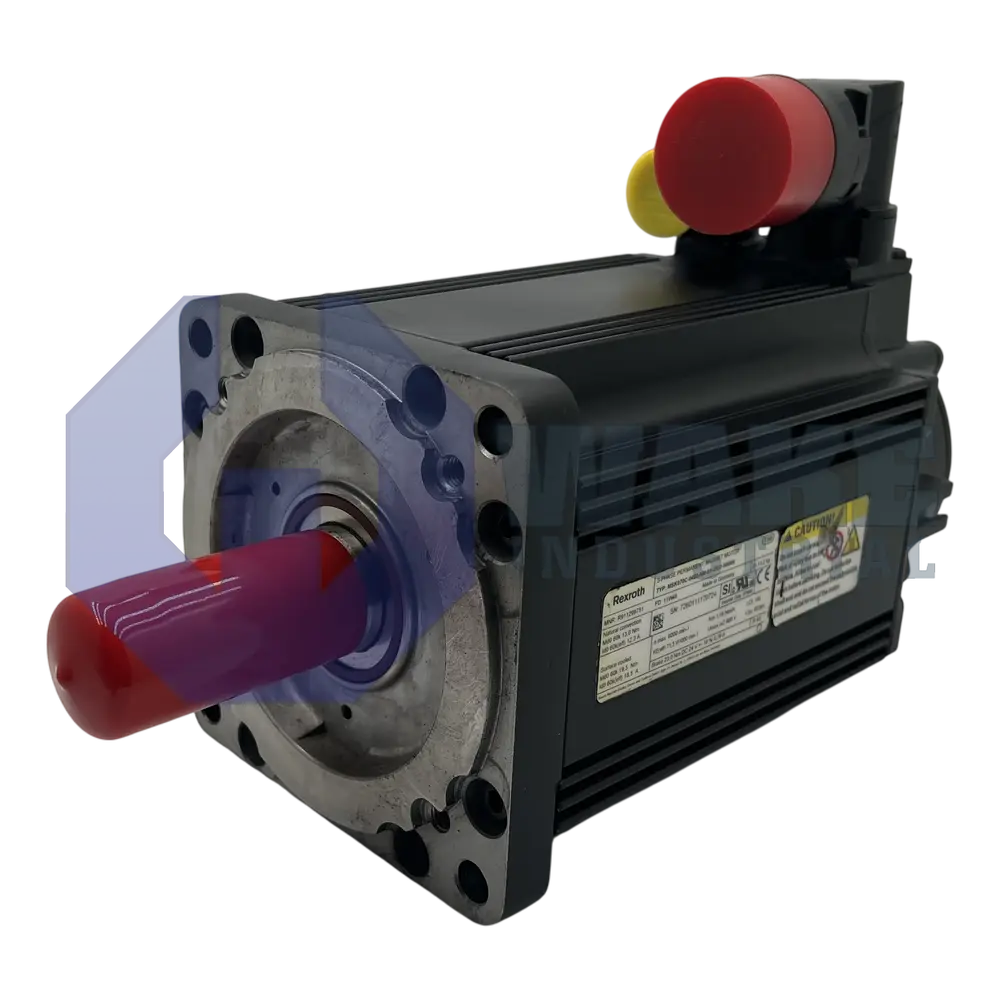

MSK070C-0450-NN-S1-UG1-NNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911299751
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
6 Minutes
17 Seconds
The Bosch Rexroth Indramat MSK070C-0450-NN-S1-UG1-NNNN is a synchronous servomotor with natural convection cooling and a plain shaft, and is part of the MSK IndraDyn S Synchronous Motors series. This standard design motor features an optical singleturn encoder with Hiperface interface and a rotatable 240-degree connector. It includes an electrically-released holding brake with a torque of 23 Nm.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK070C-0450-NN-S1-UG1-NNNN is a synchronous servo motor produced by Bosch Rexroth Indramat within the MSK IndraDyn S Synchronous Motors series. As a rotary actuator for industrial automation, it converts drive current into controlled speed and torque so packaging, printing, and material-handling axes can follow precise motion profiles. A thermally isolated stator core helps manage internal heat during continuous operation, while an integral absolute encoder returns position data to compatible IndraDrive controllers. The electrically released brake holds the load when the machine is idle or powered down. This combination supports accurate motion control in applications that require repeatable starts, stops, and positioning.
Heat is removed by natural convection, eliminating the need for external fans when enough surrounding airflow is available. Because cooling is passive, the motor does not require separate fan power connections or forced-air hardware. The feedback connector is rotatable through 240°, giving several cable exit positions that help reduce bending stress during installation. Feedback signals are transmitted over Hiperface, which combines position data and electronic communication in one interface. Inside the standard-design frame, the 0450 winding code matches the motor’s electrical characteristics to typical 400 V DC-link applications, and the 70 mm frame diameter with the C-length package keeps the motor compact for continuous-duty use.
Position feedback uses an optical scanning method with 128 signal periods per mechanical revolution, allowing fine interpolation inside the drive. The encoder is single-turn, so it reports absolute position within one revolution and is well suited to axes that do not require multi-turn tracking. This feedback arrangement supports precise indexing and short-stroke positioning tasks without additional multi-turn electronics. When motion stops, the integrated brake provides 23 Nm of holding torque to prevent drift on vertical or suspended loads. Mechanical power is transmitted through a plain shaft, allowing the motor to be coupled with friction-clamp or keyed hub arrangements as required by the machine design.
Frequently Asked Questions about MSK070C-0450-NN-S1-UG1-NNNN:
Q: What type of encoder is featured on the MSK070C-0450-NN-S1-UG1-NNNN motor?
A: This motor uses a Hiperface optical encoder with singleturn technology and a resolution of 128 signal periods.
Q: What type of shaft does the MSK070C-0450-NN-S1-UG1-NNNN servomotor have?
A: A plain shaft design is incorporated, making this servomotor suitable for applications that do not require a keyway.
Q: Does the MSK070C-0450-NN-S1-UG1-NNNN include a holding brake, and if so, what is its torque?
A: This model is equipped with an electrically-released holding brake that provides a holding torque of 23 Nm.
Q: How is the MSK070C-0450-NN-S1-UG1-NNNN servomotor cooled?
A: Cooling for this servomotor is handled through natural convection, eliminating the need for forced ventilation.
Q: What is the configuration of the encoder connector on the MSK070C-0450-NN-S1-UG1-NNNN?
A: The encoder connector on this model is rotatable up to 240°, which allows flexibility during installation.
