MSK070C-0150-NN-M1-UG0-NNNN

  • Rated 4.5 (29 total ratings)
  • MPN: R911309218
  • Stock: In-Stock, Ships Fast
  • Factory New Pricing Available!
    Request a Quote!
  • Call for Expedited Shipping and Product Condition Options

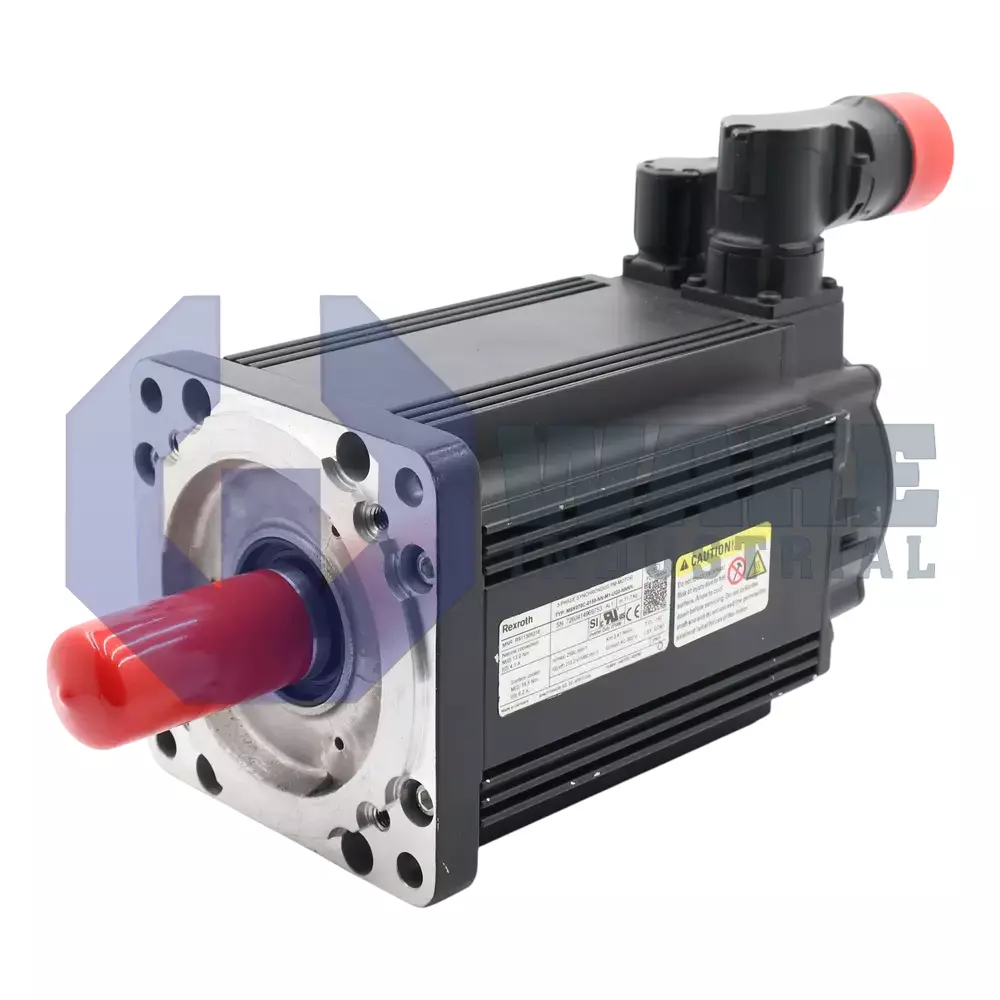

The MSK070C-0150-NN-M1-UG0-NNNN is manufactured by Rexroth Indramat Bosch as part of the MSK Servo Motor Series. It features a continuous torque of 14.5 Nm and a continuous current of 4.6 A. It also displays a maximum torque of 33.0 Nmand a maximum current of 16.4 A and a winding inductive of 34,900 mH

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

✓ In-Stock!

MSK070C-0150-NN-M1-UG0-NNNN

  • Rated 4.5 (29 total ratings)
  • MPN: R911309218
  • Stock: In-Stock, Ships Fast
  • Factory New Pricing Available!
    Request a Quote!
  • Call for Expedited Shipping and Product Condition Options
The MSK070C-0150-NN-M1-UG0-NNNN is manufactured by Rexroth Indramat Bosch as part of the MSK Servo Motor Series. It features a continuous torque of 14.5 Nm and a continuous current of 4.6 A. It also displays a maximum torque of 33.0 Nmand a maximum current of 16.4 A and a winding inductive of 34,900 mH

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Sell Us Your Surplus
Have a MSK070C-0150-NN-M1-UG0-NNNN to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

Engineered by Bosch Indramat Rexroth Company, the MSK070C-0150-NN-M1-UG0-NNNN is a top-tier synchronous motor that provides state-of-the-art automation. The 70 sized motor has a 150 winding code and comes with a natural convection cooling mode. It also features an optical encoder with multiturn-absolute Hiperface with 128 signal periods.

The MSK070C-0150-NN-M1-UG0-NNNN motor features a standard smooth shaft with a sealing which makes it handle axial and radial forces applied on the output shaft. The electrical connection is a plug that is 240-degrees rotatable. Besides, to seamlessly connect the encoder and the electric power source, you will require an RLS1200 power connection cable and an RGS1000 encoder connection cable. This will ensure a fast and straightforward assembly and start-up.

All the assembly should be done between 0 and 1000 meters above sea level and operated in an ambient temperature of 0 to 40-degrees. The MSK070C-0150-NN-M1-UG0-NNNN does not come with holding breaks. You can rest assured of safe operation as it meets the various degree of protection such as IP65, IP67, and IP24. The plain shaft in the Bosch Rexroth motor provides you an excellent running smoothness, and all you require are either clamping elements or clamping sets to connect the machine elements to the motor.

This workhorse motor has a maximum torque of 33Nm, a 213.2 V/1000 min-1 voltage constant at 20-degrees and a maximum velocity of 2,500min-1.  The MSK070C-0150-NN-M1-UG0-NNNN weighs just about 11.7kg and has 6 pole pairs. The temperature sensor in this MSK motor is controlled via two thresholds; 140-degrees – warning temperature and 150-degrees – switch-off temperature. And the sensor behind this is the KTY84 type. Overall, there’s no need to worry about your application needs since the MSK070C-0150-NN-M1-UG0-NNNN IndraDyn S motor is highly configurable meeting any need that comes its way.

MSK070C-0150-NN-M1-UG0-NNNN Documents

  • MSK-070C-0150-NN-M1-UG0-NNNN
  • MSK070C 0150 NN M1 UG0 NNNN
  • MSK070C0150NNM1UG0NNNN
  • MSK70C-0150-NN-M1-UG0-NNNN

MSK070C-0150-NN-M1-UG0-NNNN Technical Specifications

Continuous Current at Standstill 100 K: 4.6 A
Maximum Torque: 33 Nm
Encoder Type: Multiturn Hiperface
Holding Brake: Not Available
Shaft: Plain
Protection Class: IP65
Number of Pole Pairs: 6
Weight : 11.7 kg
Insulation Class: 155
Standstill torque (100 K): 14.5 Nm

Frequently Asked Questions about MSK070C-0150-NN-M1-UG0-NNNN


Q: What type of shaft does the MSK070C-0150-NN-M1-UG0-NNNN motor have?

A: The motor has a standard smooth shaft that comes with a seal, allowing it to handle axial and radial forces on the output shaft.

Q: How is the electrical connection oriented on this MSK070C-0150-NN-M1-UG0-NNNN motor?

A: The electrical connection uses a plug that is rotatable up to 240 degrees, offering flexibility during installation.

Q: Which cables are required for the encoder and power connection to the MSK070C-0150-NN-M1-UG0-NNNN motor?

A: You'll need an RLS1200 power connection cable and an RGS1000 encoder connection cable for seamless and quick assembly and start-up.

Q: What are the operational altitude and ambient temperature limits for the MSK070C motor?

A: Ensure assembly is done between 0 and 1000 meters above sea level and the motor is operated in temperatures ranging from 0 to 40 degree centigrade.

Q: What are the thresholds for the temperature sensor in the MSK motor?

A: The motor's temperature sensor, which is of the KTY84 type, has a warning threshold of 140 degree centigrade and a switch-off threshold of 150 degree centigrade.

Internal Product Review

  • ‘‘The MSK070C-0150-NN-M1-UG0-NNNN has a rotatable plug and requires RLS1200 and RGS1000 cables for seamless connections. Ensure operation between 0 - 40°C for optimal performance.’’
