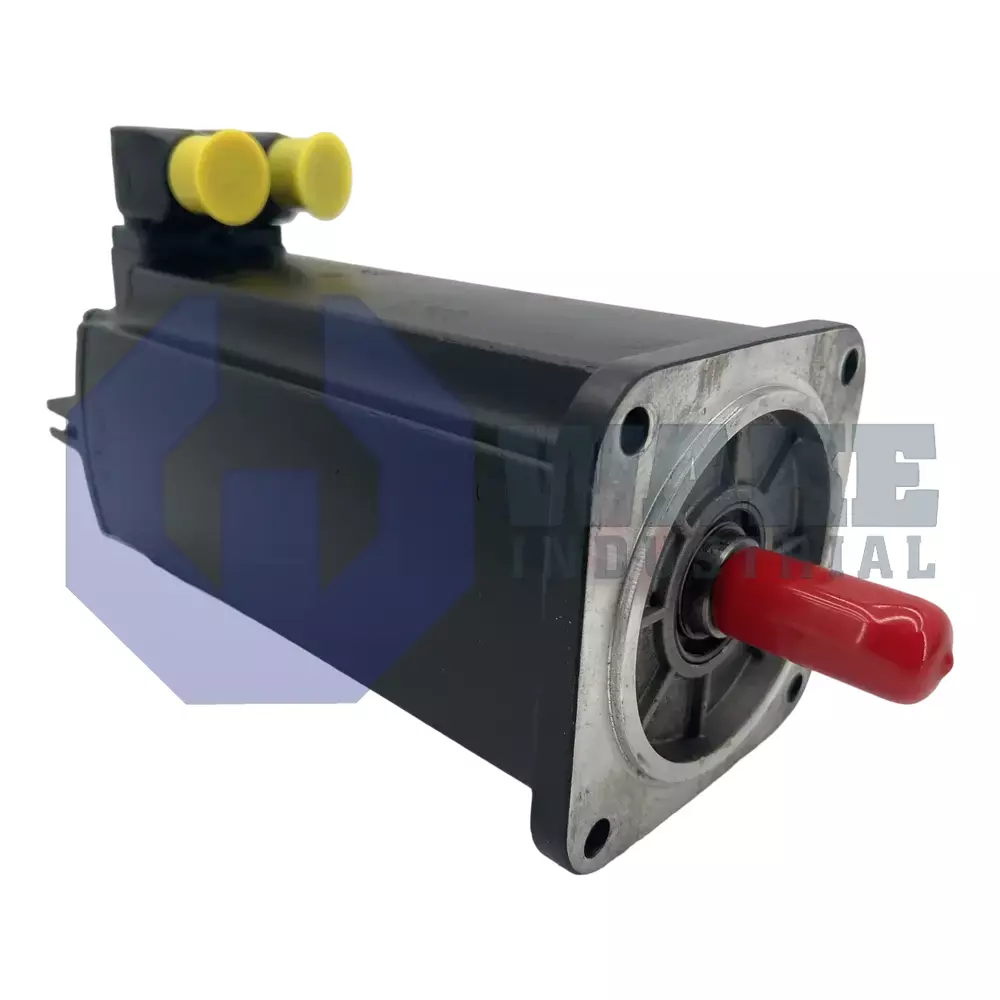

The Bosch Rexroth Indramat MSK061C-0600-NN-S1-UP0-NNNN is a standard design synchronous servomotor from the MSK IndraDyn S Synchronous Motors series. It features natural convection cooling, a rotatable encoder connector at 240 degrees, and has optical encoder technology with a singleturn Hiperface interface. The servomotor is size 061, length C, and comes without a holding brake.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK061C-0600-NN-S1-UP0-NNNN is a servo motor produced by Bosch Rexroth Indramat within the MSK IndraDyn S Synchronous Motors series. As a synchronous servomotor, it converts drive-controller output into precise angular motion for positioning, contouring, and speed-control tasks common in automated machining cells, packaging lines, and material-handling stations. The motor integrates feedback and mechanical features required for closed-loop operation in multi-axis systems, allowing consistent torque delivery and repeatable motion profiles. It is suited for axes that require accurate starts, stops, and speed changes during repetitive machine cycles.
Its thermal management relies on natural convection, meaning heat is released through the housing surface without forced airflow or liquid circuits. Feedback data travel over the Hiperface protocol so the drive can read absolute position and diagnostic information through a single hybrid cable. Within the optical reader, the scale provides 128 signal periods, giving fine electrical resolution that supports smooth velocity regulation. The frame coded as 061 indicates the stator diameter and mounting dimensions, helping machine builders match the motor to gearbox flanges and machine plates. Mechanical power is delivered through a shaft with keyway, a common profile that secures couplings against slip during torque reversals.
Installation flexibility is improved by a feedback plug that is rotatable, 240°, allowing cable exit to be oriented away from obstructions inside the cabinet or on the axis. The sensing system is optical, which avoids magnet aging effects and provides stable interpolation over the service life. This configuration is supplied without a holding brake, so load-side static torque must be maintained by the drive or external clamps during power loss. The length designation C indicates a moderate stack height in the MSK family, balancing continuous torque with compact mass. That combination can help when routing cables around moving machine elements or other tightly spaced hardware.
Frequently Asked Questions about MSK061C-0600-NN-S1-UP0-NNNN:
Q: What cooling method does the MSK061C-0600-NN-S1-UP0-NNNN servo motor use?
A: The MSK061C-0600-NN-S1-UP0-NNNN uses natural convection for cooling and does not require external fans.
Q: Does the MSK061C-0600-NN-S1-UP0-NNNN come with a holding brake installed?
A: This model is manufactured without a holding brake, so it does not provide braking functionality by default.
Q: What kind of encoder does the MSK061C-0600-NN-S1-UP0-NNNN use for feedback?
A: The motor features an optical singleturn encoder with Hiperface interface and 128 signal periods for position feedback.
Q: How much can the encoder connector be rotated on the MSK061C-0600-NN-S1-UP0-NNNN motor?
A: The encoder connector on this unit is rotatable up to 240° for flexible installation.
Q: What shaft type is featured on the MSK061C-0600-NN-S1-UP0-NNNN motor?
A: The shaft on the MSK061C-0600-NN-S1-UP0-NNNN is equipped with a keyway for secure coupling with mechanical components.
