Product Description:

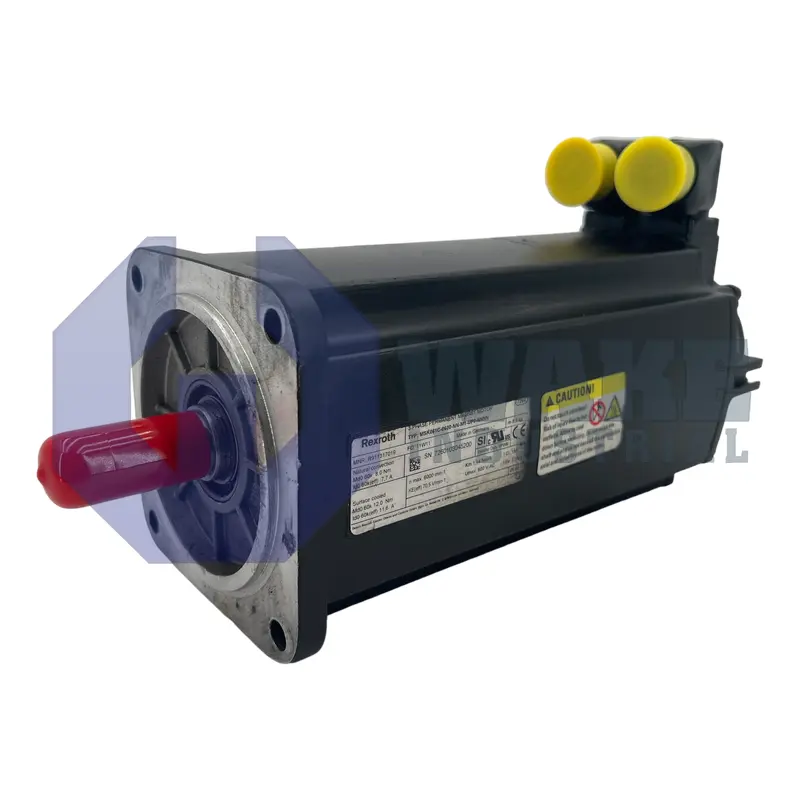

The MSK061C-0600-NN-M1-UP0-NNNN is a synchronous servomotor built by Bosch Rexroth Indramat for the MSK IndraDyn S Synchronous Motors series. Designed as a drive component for CNC, packaging, and material-handling machinery, it supplies controlled torque and speed to linear or rotary mechanics. The motor couples to an IndraDrive amplifier through a hybrid power-and-feedback cable, reducing cabinet wiring. Its construction supports direct-mount installation on machine frames, and the absence of a holding brake makes it suitable for applications that rely on external locking or continuous closed-loop torque to maintain position.

Heat is removed by natural convection, so the user must provide adequate airflow around the housing to stay within permissible temperature limits. A shaft with keyway transfers torque to couplings while preventing slippage during start-stop cycles. The electromagnetic behavior is defined by the 0600 winding code, which sets the phase resistance and inductance for pairing with standard IndraDrive current ratings. Position feedback originates from an optical measuring system that delivers 128 signal periods per mechanical revolution, and the data stream is transmitted over the Hiperface protocol for simultaneous absolute and incremental information.

The encoder plug is rotatable, 240°, allowing the cable exit to be oriented away from adjacent hardware and easing routing in tight cabinets. Multiturn tracking is native, as the feedback unit is multiturn absolute, enabling the drive controller to recover position after power loss without an external reference move. Mechanical proportions follow motor size 061, and the construction length category C adds active stack depth for higher continuous torque while preserving the series’ standard mounting pattern for straightforward interchange across automated stations.
