Product Description:

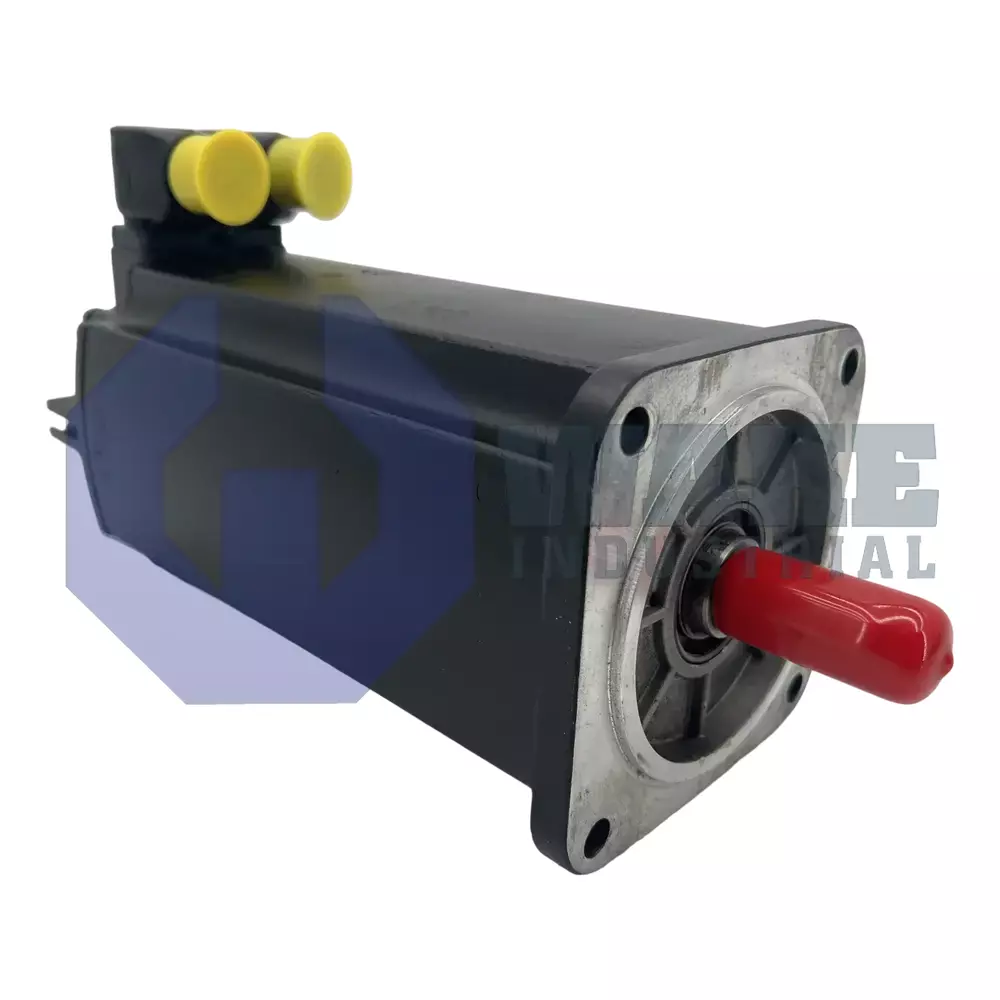

The MSK061C-0200-NN-M2-UP0-RNNN servo motor is produced by Bosch Rexroth Indramat as part of the MSK IndraDyn S Synchronous Motors series. This permanent-magnet motor serves as the rotary drive element for CNC machining centers, packaging lines, and automated assembly cells. It is intended for applications that require precise torque generation and stable speed control. That operating behavior supports repeatable positioning and consistent velocity profiles across frequent machine cycles.

Heat is removed from the stator by natural convection, eliminating the need for forced cooling hardware and simplifying surrounding machine layout. An increased concentricity construction minimizes shaft runout, which improves coupling accuracy and reduces mechanical vibration during continuous cycling. The feedback system uses an optical encoder with EnDat2.1 communication, and its rotatable 240° connector lets the cable exit be aligned with available routing space. Inside the encoder, 2048 signal periods are interpolated to produce fine digital feedback, while the multiturn absolute design preserves position information across power cycles. The housing has an IP65 rating, which helps keep out dust and low-pressure water jets commonly found in industrial areas. That combination of sealed housing and absolute feedback supports reliable operation where cable routing flexibility and stable position information are important.

The motor is supplied without a holding brake, so static shaft locking must be handled externally, and it uses a shaft with keyway for torque transfer into standard hub couplings. This arrangement suits machines that already rely on an external brake or other mechanical retention method at standstill. The keyed shaft also allows the motor to connect to common coupling components without a special shaft form. Frame size 061, length variant C, and winding code 0200 indicate the motor geometry and electrical setup used with matching drives. Operation is permitted at ambient temperatures of 0-40 °C, allowing continuous duty in typical production halls. Unobstructed airflow around the housing is required for cooling, and the increased concentricity build helps maintain alignment when the motor is mounted to gearheads or direct-drive fixtures.
