Product Description:

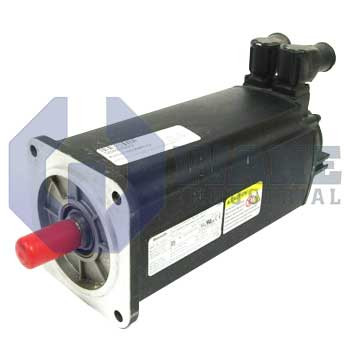

The MSK061C-0200-NN-M1-UP1-NNNN is an IndraDyn S synchronous servo motor manufactured by Bosch Rexroth Indramat for the MSK IndraDyn S Synchronous Motors series. It converts regulated drive current into controlled rotary motion for position and velocity loops in automated assembly lines, packaging stations, and material-handling axes. Its permanent-magnet design and integrated feedback let the drive synchronize tooling movement with electronic command signals across coordinated machine sequences. This makes the unit suitable for applications that require repeatable motion, accurate speed regulation, and compact axis integration.

Thermal management relies on natural convection, so heat is transferred from the stator surface to ambient air without fans or liquid circuits. The motor follows the standard design for this series, which helps preserve compatibility with common mounting arrangements. Position feedback is provided through a Hiperface encoder that sends incremental and absolute data over a single hybrid cable. Inside the sensor, an Optical reader generates 128 signal periods per revolution and stores them as a Multiturn Absolute count, so the drive retains position information through power cycles and supports precise electronic commutation during startup and operation.

The encoder connector uses a rotatable 240° plug, allowing cable routing to be adjusted after the motor is mounted and helping reduce strain at the connection point. An electrically released holding brake rated at 10 Nm secures the driven load during standby or emergency stop conditions. Continuous torque is transmitted through a shaft with keyway, which supports positive mechanical coupling to pulleys, couplings, or geared elements. The mounting envelope corresponds to frame size 061 with the compact C-length stack, giving the motor a short axial profile for machines where installation space is limited.
