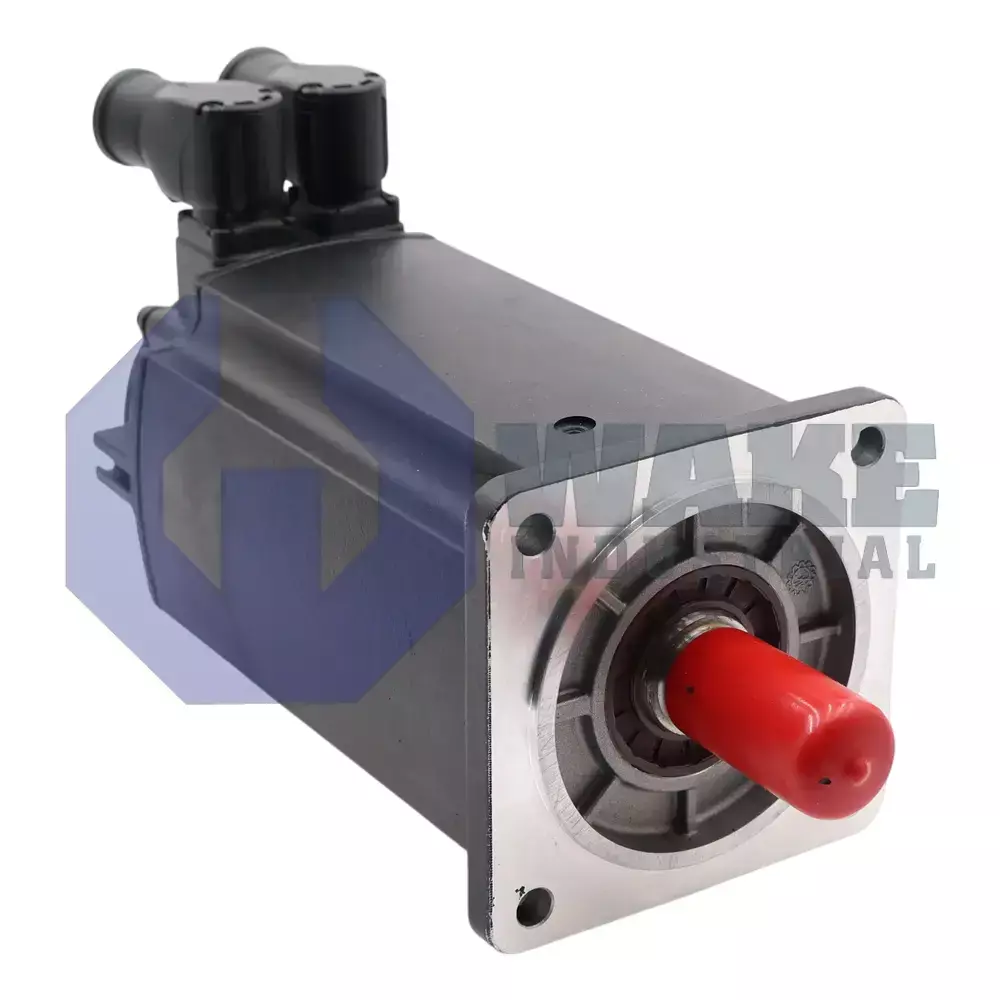

MSK060C-0600-NN-S2-UP1-RNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911306644
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
5 Minutes
42 Seconds
The Bosch Rexroth Indramat MSK060C-0600-NN-S2-UP1-RNNN is an IndraDyn S Synchronous Servomotor from the MSK IndraDyn S Synchronous Motors series. It features natural convection cooling, IP65 protection, and a shaft with keyway. The motor is equipped with an optical singleturn encoder using EnDat2.1 interface and includes an electrically-released holding brake with 10 Nm torque.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK060C-0600-NN-S2-UP1-RNNN is a synchronous servo motor produced by Bosch Rexroth Indramat in the MSK IndraDyn S Synchronous Motors series. It supplies controlled torque and precise speed regulation for automated axes in packaging machines, pick-and-place gantries, and similar motion systems. Its 060 stator size and C frame length place it in a mid-torque range that suits compact machinery where responsive motion and accurate positioning are required. This layout makes the motor suitable for applications that need repeatable starts, stops, and short indexing moves without a large installation footprint.
Cooling is handled by natural convection, so heat leaves through the housing without an external fan or liquid circuit. The motor housing has an IP65 protection rating, which helps block dust and water jets when the unit is mounted on exposed machine sections. An electrically released holding brake provides 10 Nm of static torque to hold the axis when power is removed. Feedback is generated by an encoder with 2048 signal periods, and the data is transmitted through the EnDat2.1 interface so the drive can process position information and support parameter exchange.
The encoder plug uses a 240° rotatable flange, allowing cable routing to be adjusted to suit the machine layout. Because the encoder is single-turn, it reports absolute position within one mechanical revolution, while any extended position tracking must be handled by the controller. The encoder uses an optical detection principle, and the motor also uses an increased-concentricity design to help reduce vibration during operation. A keyed shaft supports torque transfer to couplings or pulleys, and the sealing arrangement protects the brake chamber. Continuous operation is permitted at ambient temperatures from 0 to 40 °C, and the Class 155 insulation system supports winding hot-spot temperatures up to 155 °C.
Frequently Asked Questions about MSK060C-0600-NN-S2-UP1-RNNN:
Q: What type and torque rating is the holding brake on the MSK060C-0600-NN-S2-UP1-RNNN motor?
A: This motor is equipped with a holding brake that provides a torque of 10 Nm and is electrically released for secure load holding during power loss.
Q: What is the protection rating of the MSK060C-0600-NN-S2-UP1-RNNN motor?
A: The MSK060C-0600-NN-S2-UP1-RNNN has a protection rating of IP65, offering complete protection against dust and low-pressure water jets.
Q: What encoder technology and interface are used in the MSK060C-0600-NN-S2-UP1-RNNN?
A: This model uses an optical singleturn encoder with EnDat2.1 interface, providing 2048 signal periods for high-precision feedback.
Q: How is the MSK060C-0600-NN-S2-UP1-RNNN motor cooled?
A: Cooling for this motor is achieved by natural convection, meaning heat is dissipated without external fans or forced air.
Q: What type of shaft design does the MSK060C-0600-NN-S2-UP1-RNNN motor feature?
A: The shaft on this model is designed with a keyway, ensuring direct and reliable mechanical coupling.
