Product Description:

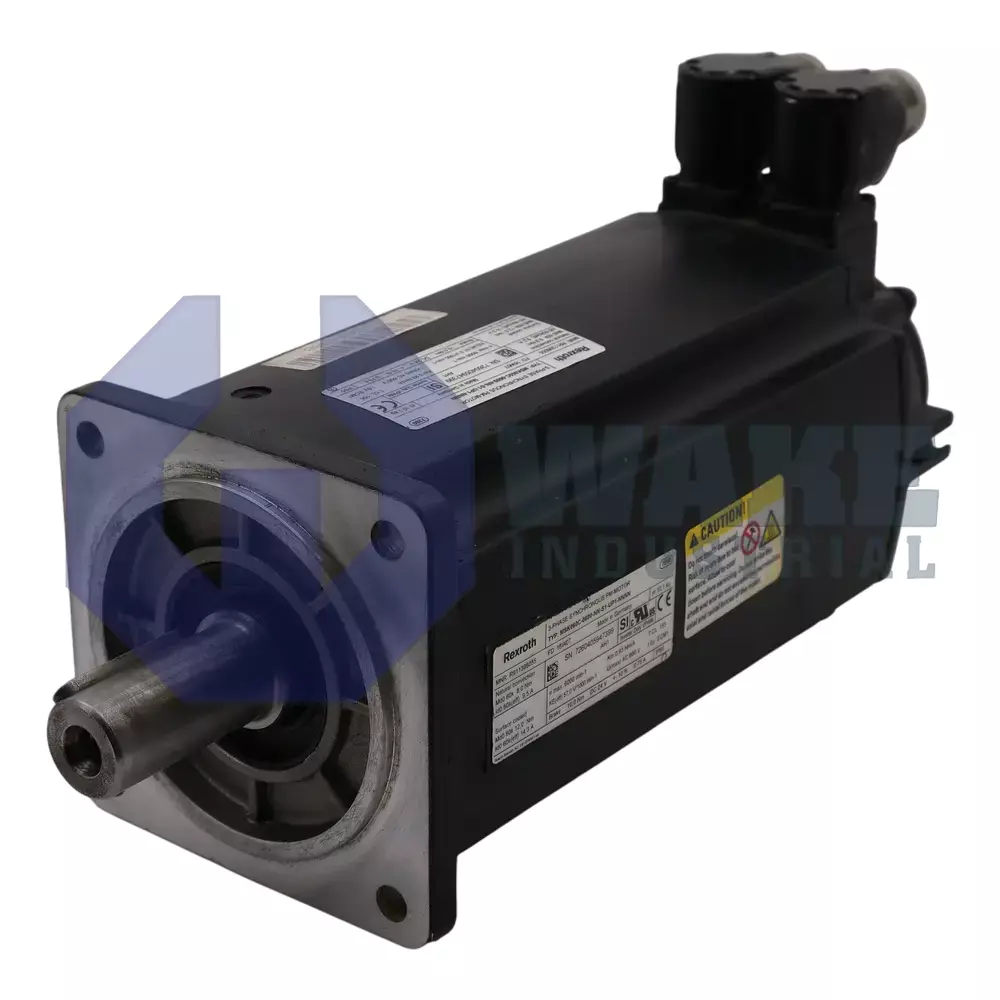

The MSK060C-0600-NN-S1-UP1-NNNN is a synchronous servo motor manufactured by Bosch Rexroth Indramat for the MSK IndraDyn S Synchronous Motors series. Intended for tightly controlled rotary axes in automated packaging, handling, and machining systems, it converts electrical power into repeatable torque within a 060-frame envelope. Its synchronous design supports accurate response to drive commands during positioning, indexing, and speed-controlled operation. A standard mechanical design in the C-length stator adds active material for higher continuous output, and an electrically released holding brake secures the shaft when power is removed, preventing drift during downtime. The motor is suited to installations where compact mounting space and predictable torque behavior are both important.

Heat is removed by natural convection, so no fan or liquid circuit is required, and the motor can be mounted inside sealed cabinets. The feedback side uses a 240° rotatable connector, allowing the cable outlet to be oriented toward the nearest gland plate. Position data reaches the drive through the Hiperface protocol, which carries incremental and parameter information on two conductors. The integrated encoder resolves the shaft into 128 signal periods per revolution, and its single-turn topology supplies an absolute value for one turn, after which the controller counts further rotations. This arrangement supports stable speed regulation at low velocities and helps maintain accurate positioning during repeated motion cycles.

The brake delivers 10 Nm of static holding force, meeting the holding requirements of vertical or suspended shafts without external clamps. Inside the encoder, an optical scanning method avoids magnetic influence and preserves accuracy. Power is transmitted through a shaft with a keyway, giving positive engagement for pulleys or gears. Winding code 0600 matches the drive’s voltage tables for the 060 size and C-length, allowing the continuous rating to be reached without fan assistance. This layout supports geared loads and other drive components that require positive mechanical torque transfer.
