Product Description:

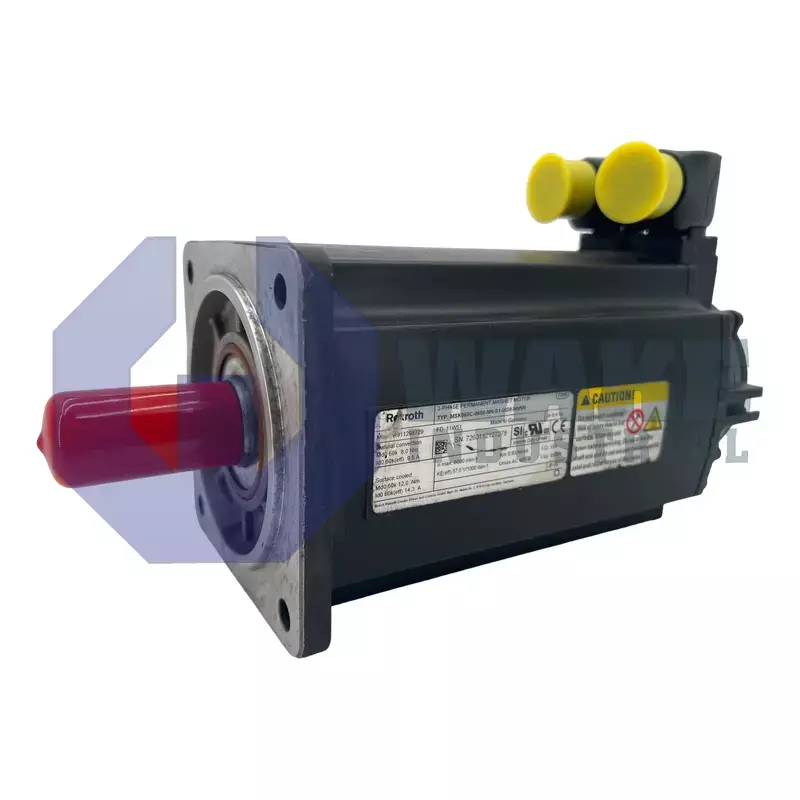

The MSK060C-0600-NN-S1-UG0-NNNN is an IndraDyn S synchronous servomotor manufactured by Bosch Rexroth Indramat within the MSK IndraDyn S Synchronous Motors series. In automated machinery, it works as the primary rotary actuator that converts drive current into tightly regulated torque and speed for pick-and-place axes, packaging stations, or tool spindles. The 060 frame with C length minimizes footprint while still supplying the inertia needed for stable motion profiles. A rotatable encoder and a shaft designed for direct coupling support installation on gear stages or belt pulleys without intermediary couplings. This arrangement supports precise acceleration and deceleration during frequent start-stop cycles.

The motor removes internal heat by natural convection, permitting installation where forced airflow is unavailable. Feedback is delivered through the Hiperface serial interface, which transmits both position data and motor electronic data to the controller over two shielded pairs. Resolution is fixed at 128 signal periods per revolution, and the optical measuring principle avoids magnetic drift during long duty cycles. Electrical behavior is tied to winding code 0600, which gives a voltage constant suitable for medium-voltage inverters while keeping current demand within the range of standard IndraDrive power sections.

Cable routing is simplified because the encoder plug housing is rotatable through 240°, allowing the connector to face the preferred cabinet entry direction. The encoder is single-turn, so it reports absolute angle over one full revolution before repeating, which is suitable for many indexing or gantry axes. The motor is supplied without a holding brake, so static load retention must be handled by the drive or an external clamp. Torque is transferred through a plain shaft, which supports direct coupling to pulleys or gear stages.
