Product Description:

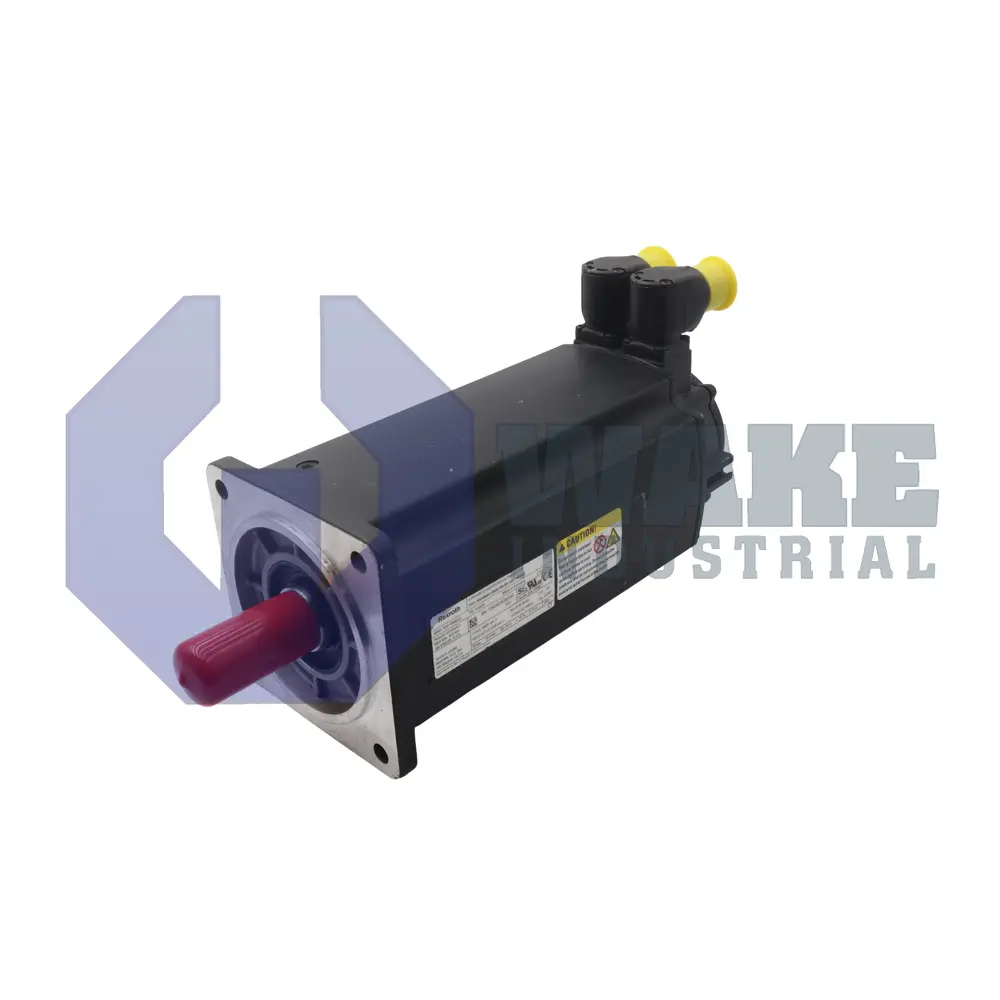

The MSK060C-0600-NN-S1-BG0-NNNN is an IndraDyn S synchronous servo motor produced by Bosch Rexroth Indramat within the MSK IndraDyn S Synchronous Motors series. The unit converts drive current into controlled mechanical rotation for automated tooling, indexing tables, and other industrial automation axes that require accurate positioning and stable torque. Its 060 frame size with C length provides a compact housing while adding stator length for higher continuous output than shorter versions in the same frame. That combination makes the motor suitable for tightly spaced multi-axis assemblies where installation space is limited but dependable servo response is still required.

Heat generated by the stator is removed through natural convection, so no external fan or liquid cooling circuit is required. The housing has an IP65 rating, which helps keep out dust and low-pressure water when the shaft seal is in place. Mechanical output is transferred through a plain shaft, and electrical power enters through a connector on side B of the housing, which can help with cable routing in compact machine layouts. Position feedback is transmitted over Hiperface, and the optical encoder provides 128 signal periods per revolution for commutation and closed-loop motion control. This feedback arrangement supports stable velocity regulation and repeatable axis movement during normal servo operation.

The encoder is a single-turn device, so it reports the absolute shaft angle within one revolution but does not retain multi-turn position data after power loss. The motor is supplied without a holding brake, so any need for load holding at standstill must be handled by drive torque or an external mechanical device. Insulation to Class 155 supports elevated winding temperature during continuous use, and the permitted ambient range of 0–40 °C suits typical enclosed industrial equipment. The motor uses standard bearings for general-duty service, making it appropriate for light-to-medium duty positioning axes that return to a reference position during machine startup.
