Product Description:

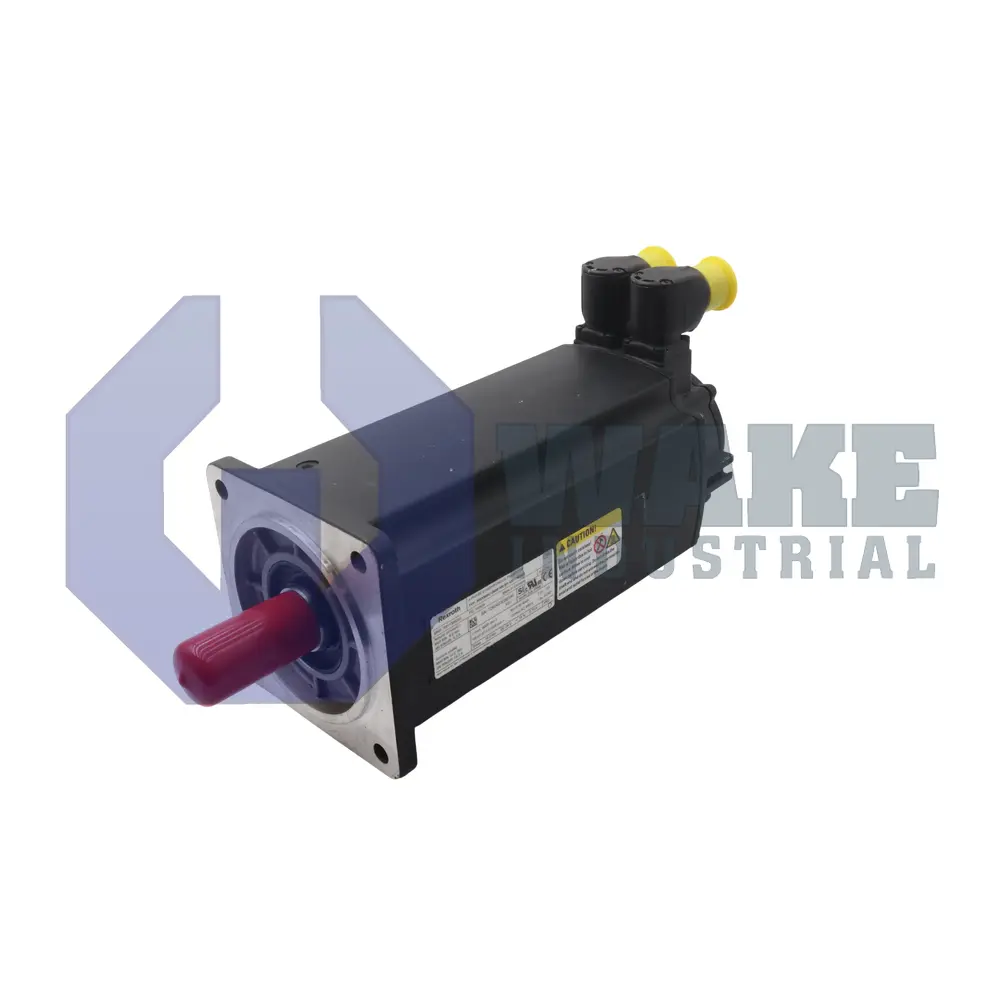

The MSK060C-0600-NN-M3-UP0-NNNN is an IndraDyn S synchronous servomotor produced by Bosch Rexroth Indramat for the MSK IndraDyn S Synchronous Motors series. In automated assembly lines, machining centers, and packaging equipment, it delivers precisely regulated rotary motion, allowing closed-loop axes to hold position, accelerate, and decelerate as dictated by a drive controller. The feedback and power connector block can be rotated 240°, easing cable routing in tight enclosures and avoiding strain when the motor is installed in left-hand or right-hand orientations.

Cooling relies on natural convection, so the cast housing radiates heat without an auxiliary fan, cutting maintenance and eliminating airborne debris pulled through the machine frame. The size code 060 corresponds to a 60 mm stator diameter, and length code C adds lamination depth for higher continuous torque within the same footprint. An enclosure rating of IP65 seals joints, the terminal area, and the shaft passage against dust and low-pressure water, permitting installation outside a cabinet. Rated operation from 0–40°C means the motor sustains full output on most factory floors. A keyway shaft simplifies torque transfer to pulleys or couplings, and insulation class 155 helps maintain winding life at elevated internal temperatures.

A multiturn absolute encoder communicates through Hiperface, allowing the drive to read position and store motor-specific parameters in the feedback chip. Its sensing head uses capacitive technology that is insensitive to grease, dust, and magnetic stray fields, and a base resolution of 16 signal periods per mechanical revolution supports fine interpolated positioning at the controller. Because the unit is supplied without a holding brake, mechanical clamps or static drive torque must secure vertical loads during power loss. Electrically, winding code 0600 matches resistance and inductance values to mid-range IndraDrive inverters.
