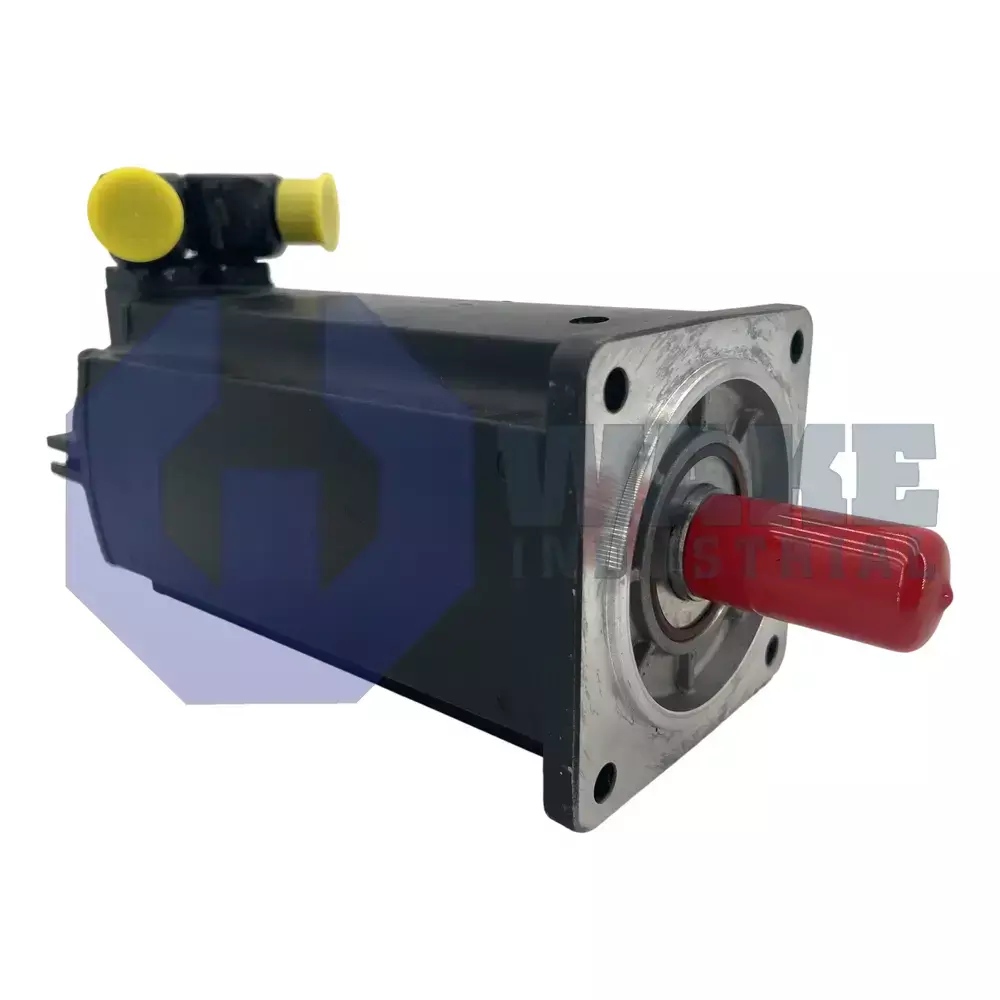

MSK060C-0600-NN-M1-UG0-NSNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911321179
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
4 Minutes
34 Seconds
The Bosch Rexroth Indramat MSK060C-0600-NN-M1-UG0-NSNN is part of the MSK IndraDyn S Synchronous Motors series. This IndraDyn S synchronous servomotor has a motor size of 060 and a "C" length, and uses natural convection cooling. It features an optical multiturn absolute encoder with Hiperface interface and a rotatable 240-degree connector, and does not include a holding brake.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK060C-0600-NN-M1-UG0-NSNN is an AC synchronous servomotor manufactured by Bosch Rexroth Indramat for the MSK IndraDyn S Synchronous Motors series. It belongs to the IndraDyn S product type and is supplied in motor size 060 with length code C. In automated machinery, it delivers precise torque and position control for axes that require compact dimensions and low maintenance. Its synchronous design supports accurate speed regulation and repeatable positioning during frequent start-stop cycles. The design variant can be used in both standard and explosion-protected areas, so the same mechanical interface fits ordinary factory zones and classified spaces.
Heat removal relies on natural convection cooling, so mounting space must allow air circulation around the housing and no external fan is required. Position feedback is provided by an optical encoder with a base resolution of 128 signal periods before interpolation by the controller. Data from this sensor is transmitted over the Hiperface interface, allowing the drive to process rotor position and speed information through a standard digital feedback link. Because the encoder is multiturn absolute, the motor reports its shaft angle and the number of complete revolutions even after power cycles, which helps the axis return to operation without a homing run. This feedback arrangement supports stable closed-loop performance at low speed as well as during dynamic acceleration and deceleration.
The feedback connector is rotatable through 240°, allowing cable outlets to be aligned with cabinets, guards, or robot joints without twisting the harness. The motor uses a plain shaft, which suits direct coupling through clamp hubs or friction joints where low backlash is important. Because it is supplied without a holding brake, any static load must be secured by drive torque or by an external brake device when the machine is stopped. The motor uses winding code 0600, which matches compatible drive inverters for this torque class while supporting the thermal limits of natural convection cooling. This arrangement is useful where flexible cable routing and compact shaft couplings are needed in a tight machine layout.
Frequently Asked Questions about MSK060C-0600-NN-M1-UG0-NSNN:
Q: How is the MSK060C-0600-NN-M1-UG0-NSNN motor cooled?
A: This model operates with natural convection cooling, requiring no external fan or forced air system.
Q: What kind of position feedback does the MSK060C-0600-NN-M1-UG0-NSNN motor offer?
A: A multiturn absolute encoder is integrated, providing position feedback over multiple revolutions.
Q: What type of shaft does the MSK060C-0600-NN-M1-UG0-NSNN feature?
A: The shaft on this motor is a plain shaft, designed for standard mechanical connections.
Q: How flexible is the encoder connector orientation on the MSK060C-0600-NN-M1-UG0-NSNN?
A: The encoder connector on this model is rotatable up to 240°, allowing flexible cabling configurations.
Q: Does the MSK060C-0600-NN-M1-UG0-NSNN come with a holding brake?
A: This servomotor variant is manufactured without a holding brake.
