Product Description:

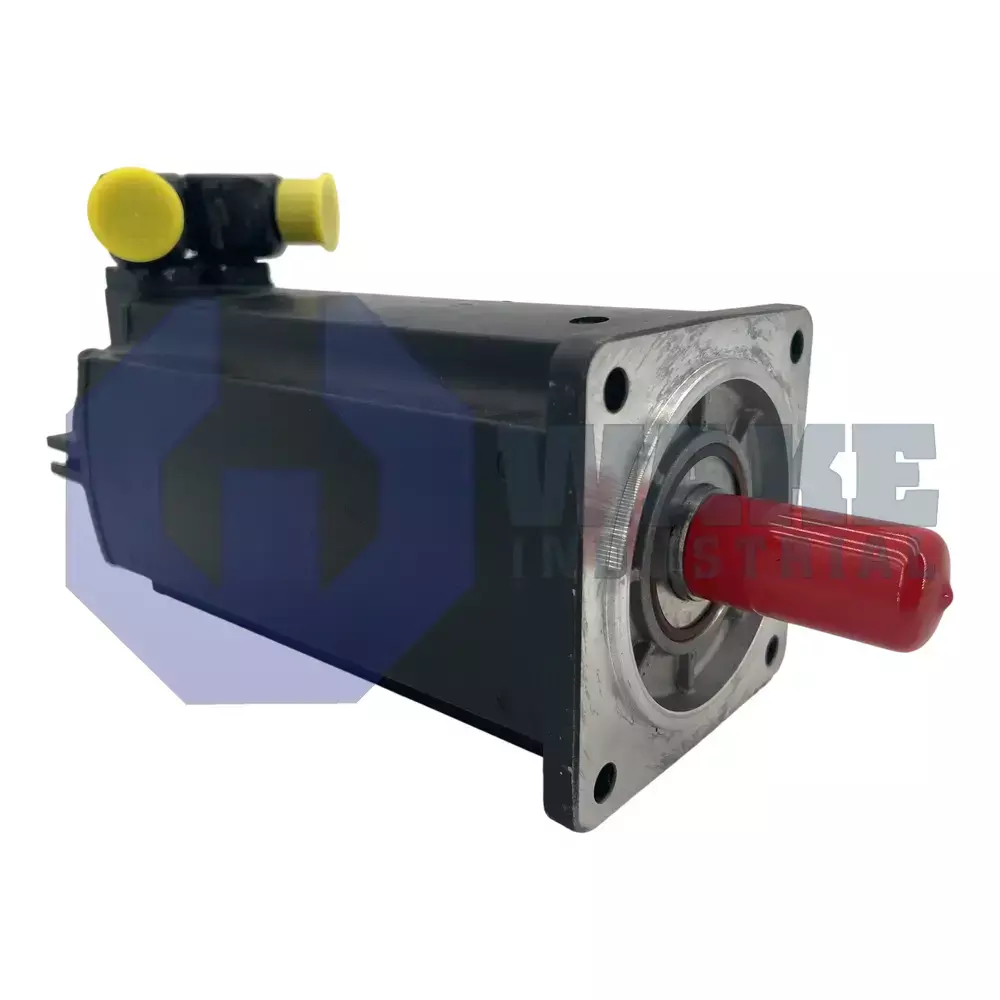

The MSK060C-0300-NN-S1-UG0-NNC3 servo motor is produced by Bosch Rexroth Indramat and belongs to the MSK IndraDyn S Synchronous Motors series. It is built for precise torque and position control in automated conveyors, pick-and-place axes, and tooling stations that require repeatable motion. The 060 frame code with C length places the motor in a mid-range housing size, and the 0300 winding matches its electrical characteristics to compatible IndraDrive controllers. This combination makes the unit suitable for compact axes that still need stable servo response during frequent starts, stops, and direction changes.

Heat is removed solely through natural convection, so no external fan or liquid circuit is required. Position feedback is transmitted over the Hiperface serial interface, which provides digital communication between the motor and drive. An optical scanning unit generates 128 signal periods per mechanical revolution to support smooth speed control and accurate position tracking. The feedback device is a single-turn encoder, so absolute position is available within one revolution while additional turns are tracked by the drive. Class 155 insulation supports repeated duty, and the motor is supplied without a holding brake, so static load holding must come from the drive or the machine.

The housing has an IP65 enclosure rating, which protects internal parts from dust and low-pressure water jets in typical factory use. The output end uses a plain shaft, so torque is transferred through clamp hubs or friction couplings instead of a keyed connection. All electrical and feedback plugs are mounted on a connector block that is rotatable through 240°, allowing cable routing to follow the machine layout and helping maintain reasonable bend paths. The permitted ambient operating range is 0–40 °C, which suits standard indoor industrial environments. This arrangement supports installation on open machine frames where cable direction and enclosure protection both matter.
