Product Description:

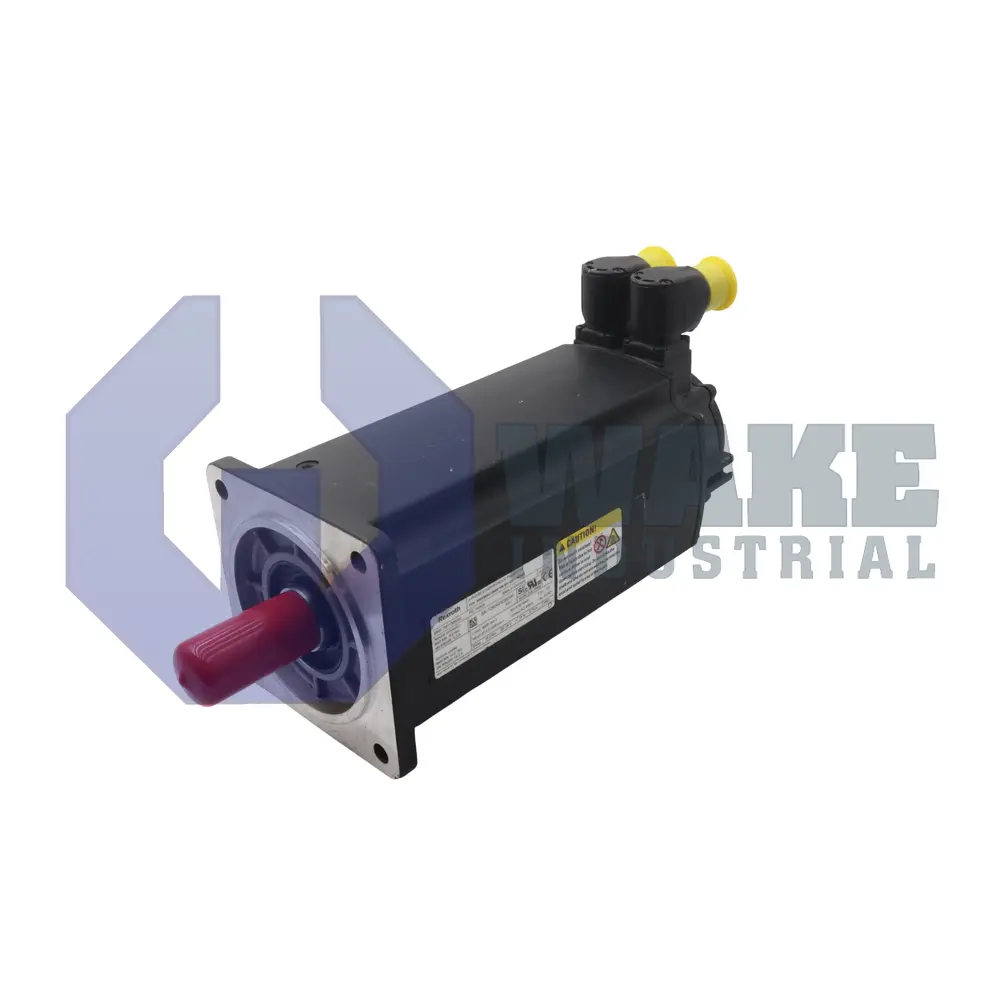

The MSK060C-0300-NN-M3-UP1-NNNN is an IndraDyn S synchronous servomotor produced by Bosch Rexroth Indramat for the MSK IndraDyn S Synchronous Motors series. This standard-design unit functions as a compact prime mover in automated cells, delivering closed-loop rotary motion wherever repeatable torque and velocity are required. When connected to compatible Rexroth drive controllers, it supports packaging, material-handling, and assembly stations by supplying precise shaft rotation to conveyors, indexing tables, and transfer mechanisms. Its compact format makes it suitable for machine sections where controlled motion must be delivered without using a large motor body.

With a 060 frame size and length code C, the motor uses stator stack dimensions that suit its continuous torque range, while winding code 0300 matches drive modules that supply the required current. Heat is removed by natural convection, so no external fan or liquid circuit is needed, and surrounding space should allow free airflow around the housing. The feedback plug is rotatable through 240°, which helps align cables in tight cabinets or crowded machine frames. Position data leaves the motor through the Hiperface digital interface, where a capacitive measuring system provides 16 signal periods per mechanical revolution. This sensing method resists interference from oil, dust, and magnetic fields, which supports stable feedback in typical industrial environments.

For absolute position capture over multiple turns, the encoder stores rotation counts as multiturn absolute data, so the axis can retain position information after power loss. An electrically released brake supplies 10 Nm of static torque to hold the shaft when motion stops, which is useful on vertical or suspended loads. Environmental protection is rated IP65, helping protect internal components from dust and water jets during normal industrial cleaning. The motor is intended for an ambient range of 0–40 °C, which fits common machine-frame and cabinet conditions. A Class 155 insulation system supports the permitted temperature rise, and the keyed shaft provides positive mechanical engagement with pulleys, couplings, or pinions.
