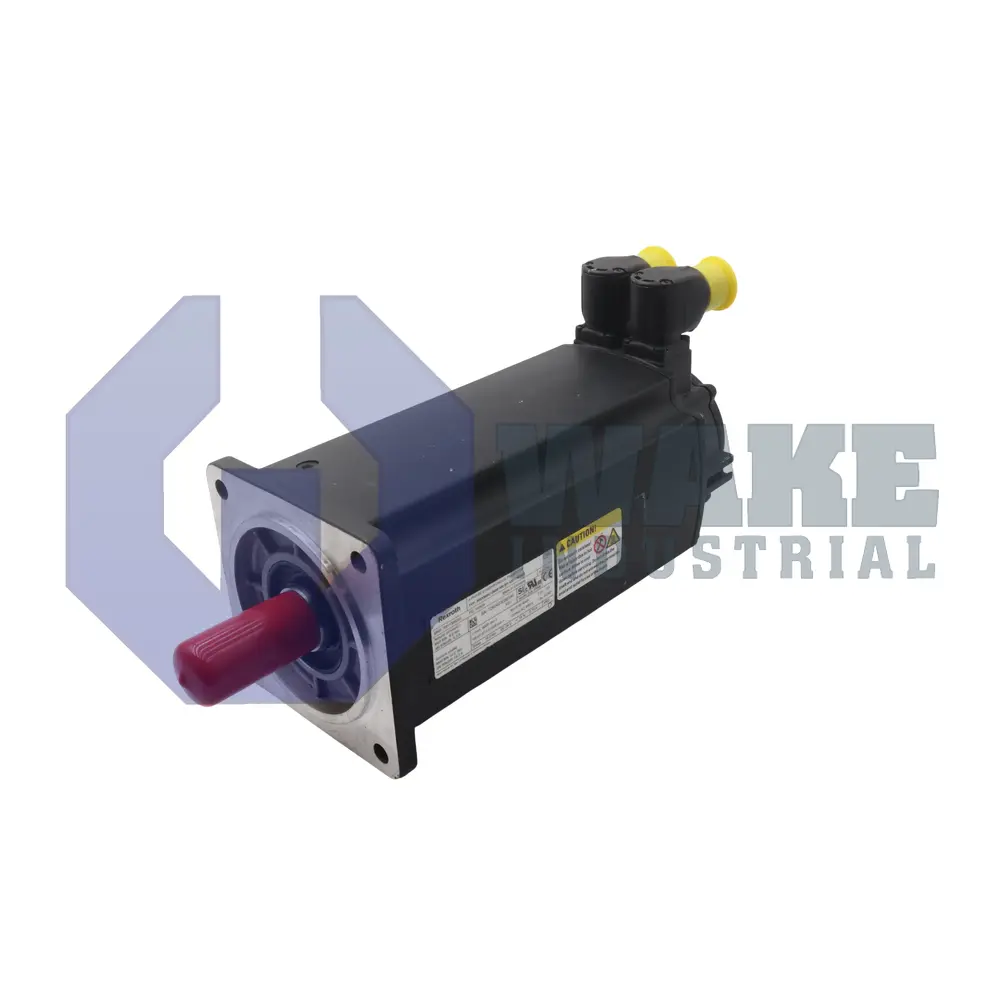

MSK060C-0300-NN-M3-UG0-NNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911343150
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
3 Minutes
53 Seconds
The Bosch Rexroth Indramat MSK060C-0300-NN-M3-UG0-NNNN is an IndraDyn S Synchronous Servomotor from the MSK series with a plain shaft and standard design. It features a rotatable 240 degree encoder connector and a multiturn absolute capacitive encoder with Hiperface interface. The servomotor offers natural convection cooling and an IP65 protection rating.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK060C-0300-NN-M3-UG0-NNNN is manufactured by Bosch Rexroth Indramat within the MSK IndraDyn S Synchronous Motors series. This standard-design servo motor pairs a size 060 stator with a length C rotor to supply tightly regulated torque for positioning and velocity loops in automated assembly, printing, and material-handling equipment. It is suited for machine axes that need repeatable motion, compact installation, and stable response during continuous production. The motor is built without a holding brake, so static loads must be secured by external clamping or continuous servo torque.
The unit relies on natural convection for heat dissipation, so no external blower or liquid circuit is required. A rotatable encoder connector with 240° adjustment simplifies cable routing in cramped cabinets and helps when clearance around the motor is limited. Feedback is transmitted through the Hiperface interface, and the sensing element uses a capacitive pickup that provides 16 signal periods per revolution. Because the encoder is multiturn absolute, machine positions are retained after power loss without homing cycles. A plain shaft enables backlash-free coupling to gearboxes or direct-drive mechanics, and winding code 0300 is used for the electromagnetic layout matched to the motor’s rated voltage and current.
The housing has an IP65 rating that blocks dust and low-pressure water jets. Reliable performance is maintained between 0–40 °C ambient, which aligns with common control-room and shop-floor conditions. The windings use class 155 insulation, permitting sustained operation at elevated copper temperatures without premature aging. The plain-shaft configuration avoids keyways that can introduce stress risers, and the rotatable connector supports service access without forcing a complete change to the cable path.
Frequently Asked Questions about MSK060C-0300-NN-M3-UG0-NNNN:
Q: What cooling method is used in the MSK060C-0300-NN-M3-UG0-NNNN motor?
A: The MSK060C-0300-NN-M3-UG0-NNNN features natural convection cooling for thermal management.
Q: Does the MSK060C-0300-NN-M3-UG0-NNNN include a holding brake?
A: This model is manufactured without a holding brake.
Q: What shaft type is available on the MSK060C-0300-NN-M3-UG0-NNNN?
A: A plain shaft configuration is provided on this motor.
Q: What ambient temperature range is supported by the MSK060C-0300-NN-M3-UG0-NNNN?
A: The operating temperature range for this servomotor is 0 to 40°C.
Q: What type of encoder is integrated in the MSK060C-0300-NN-M3-UG0-NNNN?
A: The MSK060C-0300-NN-M3-UG0-NNNN uses a multiturn absolute encoder with Hiperface interface and capacitive technology.
