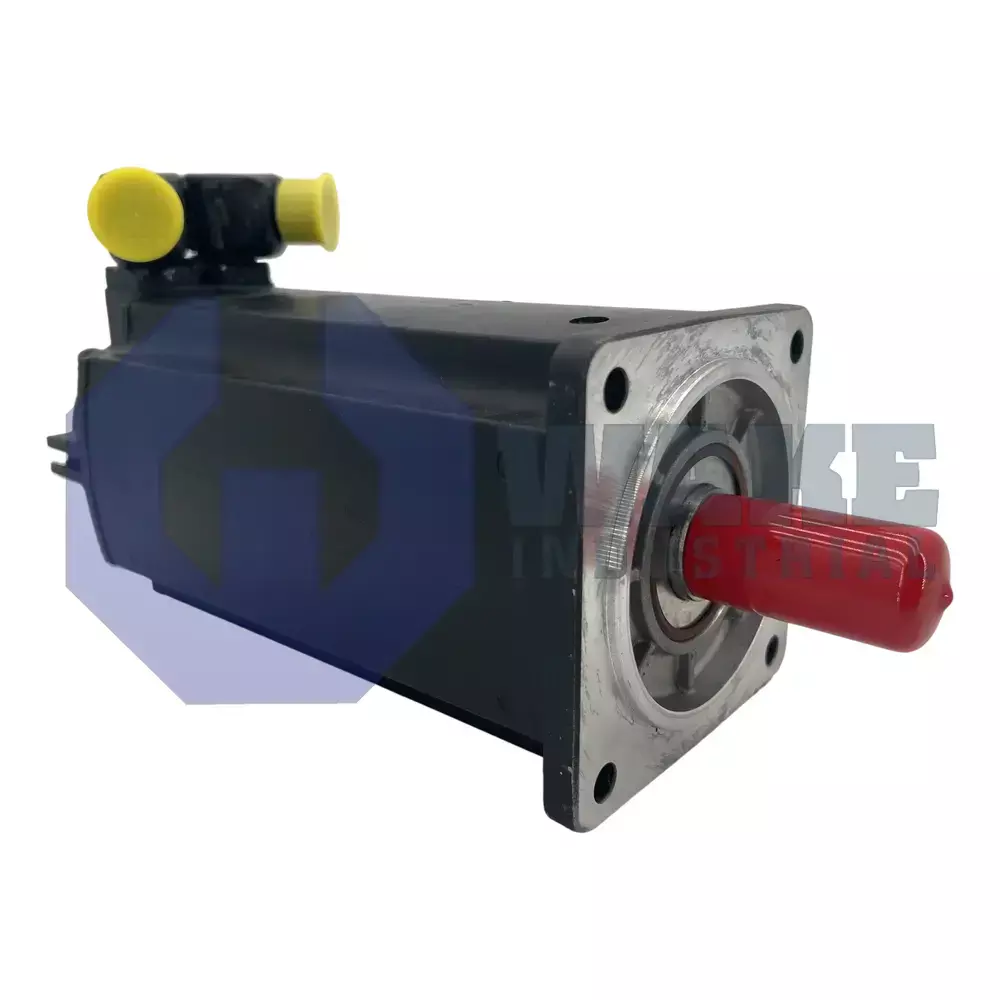

MSK060C-0300-NN-M2-UG1-RNNN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911307235
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
5 Minutes
13 Seconds
The Bosch Rexroth Indramat MSK060C-0300-NN-M2-UG1-RNNN is part of the MSK IndraDyn S Synchronous Motors series and features natural convection cooling with an IP65 protection rating. This servomotor has a multiturn absolute optical encoder with 2048 signal periods and an EnDat2.1 interface. It comes with an electrically-released holding brake rated for 10 Nm torque and operates in ambient temperatures from 0 to 40°C.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MSK060C-0300-NN-M2-UG1-RNNN synchronous servomotor is supplied by Bosch Rexroth Indramat for the MSK IndraDyn S Synchronous Motors series. It converts electrical power into controlled torque and speed for positioning and velocity loops in automated handling, packaging, and machining cells. The motor is intended for compact axes where fast response and repeatable motion are important during frequent starts, stops, and direction changes. Its layout suits applications that need accurate servo performance without a large motor footprint.
It relies on natural convection for thermal management, so heat leaves the housing without external blowers, which is useful where surrounding airflow is limited. The motor has size code 060 and length C, which set the mechanical envelope, and winding code 0300 sets the electrical characteristics used by the matching drive. The plain shaft is made with increased concentricity to reduce runout during rotation and help maintain smooth motion at changing speeds. Position feedback is delivered through a rotatable 240° connector that carries EnDat2.1 signals generated by an optical sensor head. Inside the encoder disk, 2048 signal periods are electronically subdivided, and the data are stored in a multiturn absolute format so the controller receives fine angular resolution and a full revolution count immediately after power is restored.
An electrically released holding brake rated at 10 Nm keeps the axis stationary during power loss; spring force applies the brake, and energizing the coil releases it when the drive is enabled. The housing has an IP65 rating, which helps keep out dust and water jets and supports direct mounting on a machine frame. Continuous operation is permitted within an ambient range of 0 to 40 °C, and insulation class 155 allows the windings to handle elevated temperatures without premature aging. This brake arrangement is useful on axes that must remain stationary during an interruption and return to commanded motion without delay.
Frequently Asked Questions about MSK060C-0300-NN-M2-UG1-RNNN:
Q: What type of encoder and interface does the MSK060C-0300-NN-M2-UG1-RNNN use?
A: The MSK060C-0300-NN-M2-UG1-RNNN motor uses a multiturn absolute optical encoder with EnDat2.1 interface.
Q: What are the holding brake specifications for the MSK060C-0300-NN-M2-UG1-RNNN motor?
A: This model features an electrically-released holding brake with a torque of 10 Nm.
Q: How is the MSK060C-0300-NN-M2-UG1-RNNN motor cooled?
A: The MSK060C-0300-NN-M2-UG1-RNNN is cooled by natural convection, eliminating the need for external fans.
Q: What is the protection rating of the MSK060C-0300-NN-M2-UG1-RNNN?
A: The protection rating for this motor is IP65, providing complete protection against dust and low-pressure water jets.
Q: What type of shaft does the MSK060C-0300-NN-M2-UG1-RNNN motor have?
A: The shaft type for this model is a plain shaft, designed for simple and reliable mechanical coupling.
