Product Description:

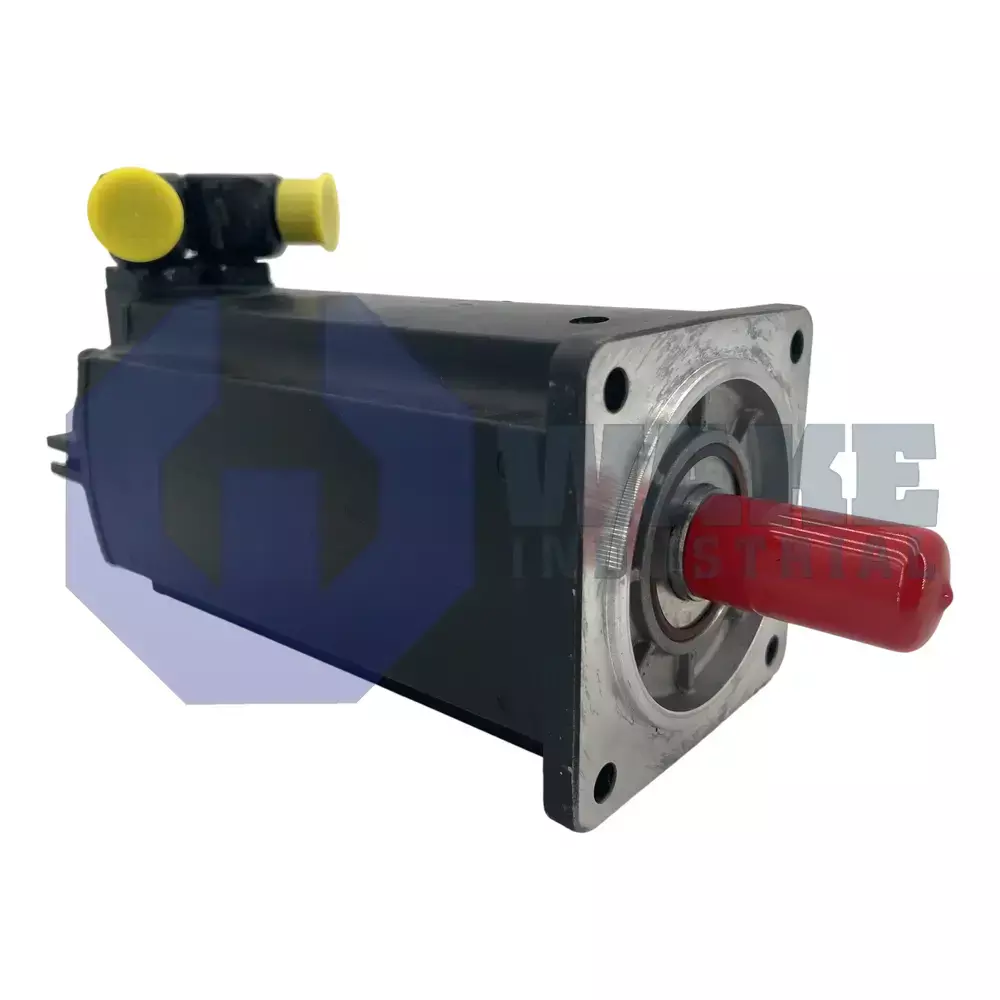

The MSK060C-0300-NN-M2-UG0-RSNN belongs to the MSK IndraDyn S Synchronous Motors series manufactured by Bosch Rexroth Indramat. It is a servomotor intended for closed-loop motion axes in automated machinery, where tight velocity and position control are required to maintain process accuracy and repeatability. When paired with a compatible drive, it converts commanded electrical input into controlled rotary motion for packaging, handling, and similar automation tasks.

This motor relies on natural convection for heat dissipation, so no external blower or liquid circuit is needed during continuous operation. The housing carries an IP65 rating, keeping internal components protected from dust ingress and low-pressure water jets in typical plant environments. Its plain shaft simplifies mechanical coupling and eliminates keyway stress concentrations. Ambient operation is permitted from 0 to 40 °C, matching general-purpose cabinet and line-side installations without derating. Electrically, the stator is wound to code 0300, a designation that indicates resistance and inductance values for compatibility with IndraDrive amplifiers and helps keep torque production predictable under vector control. The C-length variant provides additional active stack height compared with shorter frame lengths, supporting higher continuous torque at the same frame diameter.

Rotor position and absolute angle feedback are supplied through the EnDat interface; the integrated encoder transmits EnDat2.1 data and resolves motion into 2048 signal periods per mechanical turn. The encoder uses multi-turn absolute feedback, so it stores shaft position across power cycles without a battery. Optical scanning technology improves interpolation accuracy, while the rotatable 240° connector eases cable routing in tight cabinets. Thermal endurance of the winding insulation is class 155, allowing a maximum permissible winding temperature of 155 °C before thermal aging accelerates. The motor is delivered without a holding brake, so static load retention must be handled by the drive or external locking hardware.
